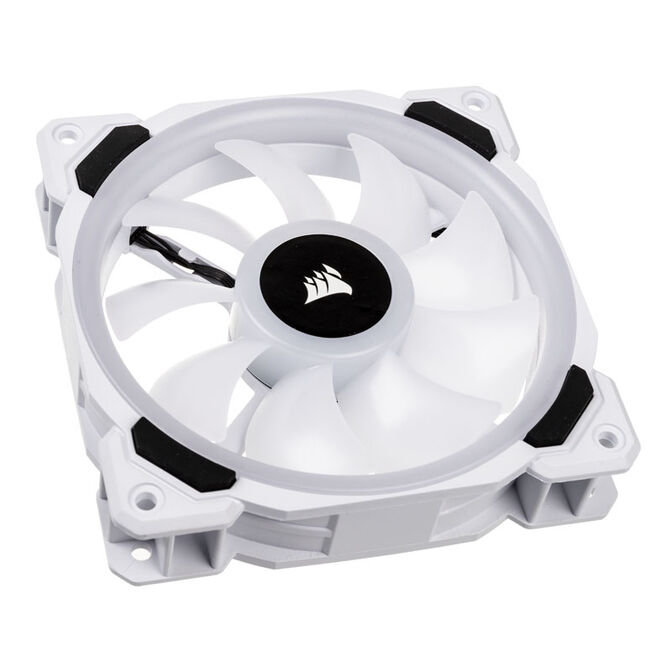

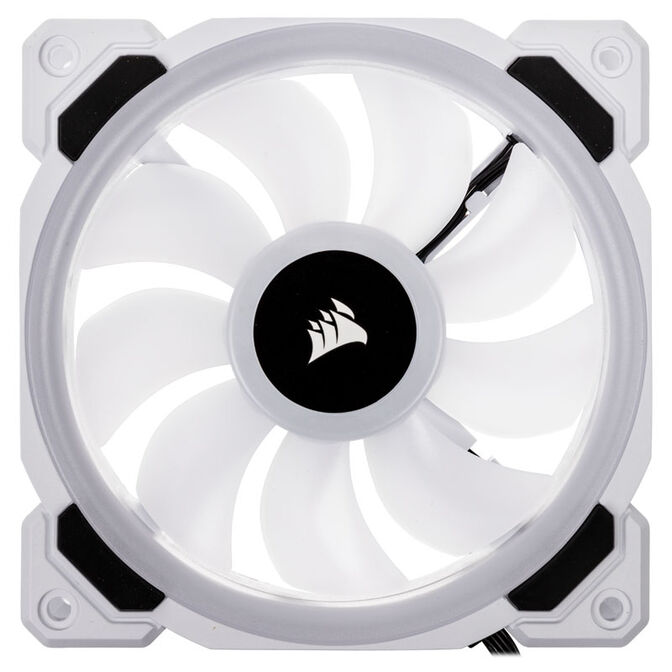

Corsair LL120 RGB Dual Light Loop PWM Fan, 3-Pack including Controller - 120mm white

The Corsair LL120 RGB Dual Light Loop is a powerful PWM fan featuring a stylish dual RGB light loop and impressive effects. The speed range of 360 to 2,200 RPM allows for either whisper-quiet operation or outstanding cooling performance. The white fan, with its 16 integrated RGB LEDs, provides a stunning visual effect as both the outer ring and the hub of the rotor are illuminated. This Triple-Pack includes three fans, an RGB Fan LED Hub, and the Lighting Node PRO RGB LED controller.

Overview of the Corsair LL120 RGB Dual Light Loop PWM Fan:

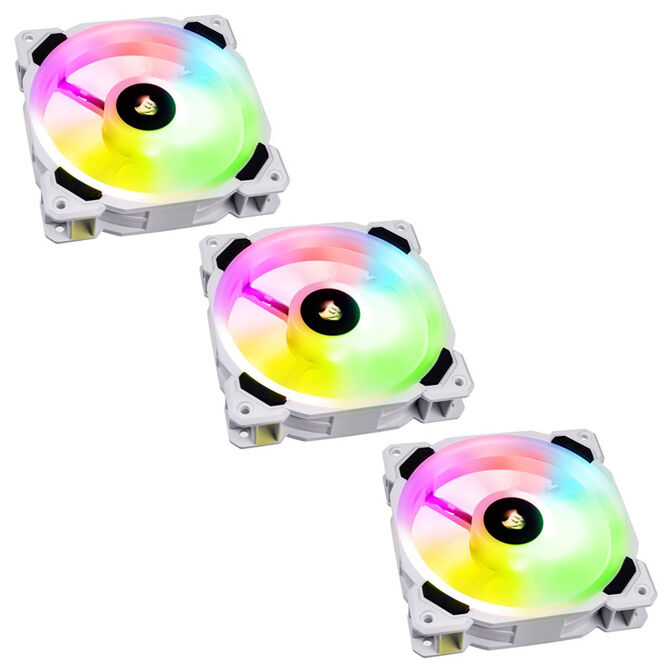

• Triple-Pack of three white LL120 RGB fans from Corsair
• Magnetic bearing ensures high performance, quiet operation, and long durability
• Custom rotor blades provide the perfect balance between static pressure and airflow
• Addressable RGB LED lighting with 16 individual LEDs & stylish effects
• Speed range of 360 to 2,200 RPM and 4-pin PWM connector
• Includes Corsair Lighting Node PRO and RGB Fan LED Hub
• Control and synchronisation via Corsair iCUE software

Powerful fan with stylish lighting

The LL120 RGB Dual Light Loop fan is equipped with high-end technology and primarily delivers high static pressure of up to 3.0 mmH2O through its special rotor design while providing a maximum airflow of 107.3 m³/h. The advanced hydraulic bearings also ensure a high level of performance and are extremely durable. Additionally, it produces a maximum noise level of 36 dB(A), depending on the fan speed.

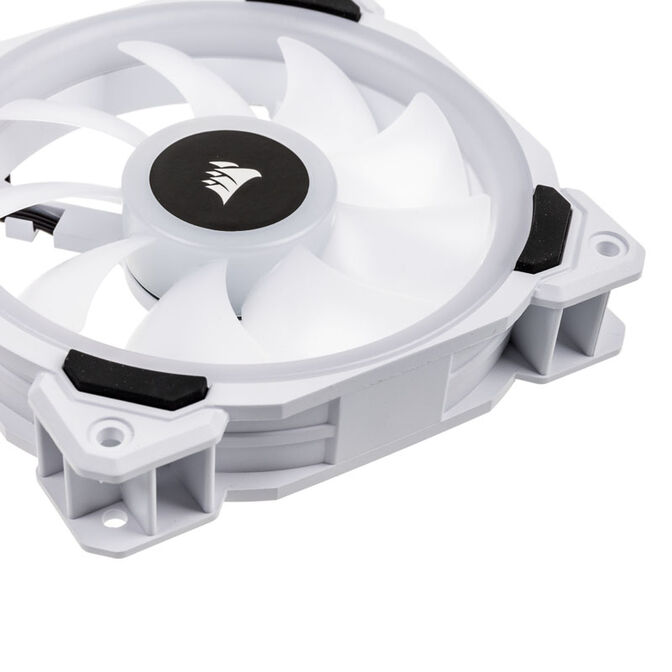

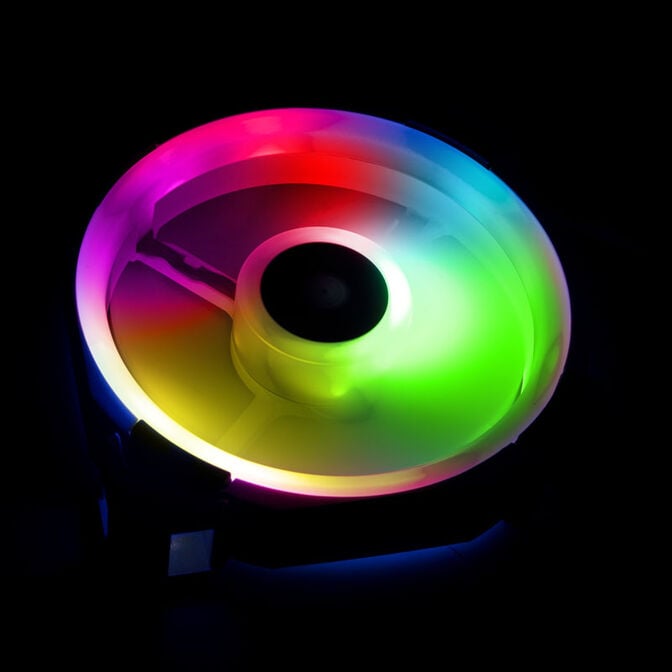

The 12-centimetre fan features rubberised mounting points that ensure a perfect, vibration-free operation and create an excellent impression thanks to the black contrast. A particular highlight of the LL120 RGB is the extraordinary lighting in the form of 16 individually addressable RGB LEDs in a dual loop: Not only is the outer ring of the rotor illuminated, but the hub is also equipped with light sources. Both light loops can be individually adjusted in colour, effect, and speed according to the user's preferences via Corsair's iCUE software. Breathing, strobe, or colour-changing effects are available.

Corsair Lighting Node PRO and RGB Fan LED Hub

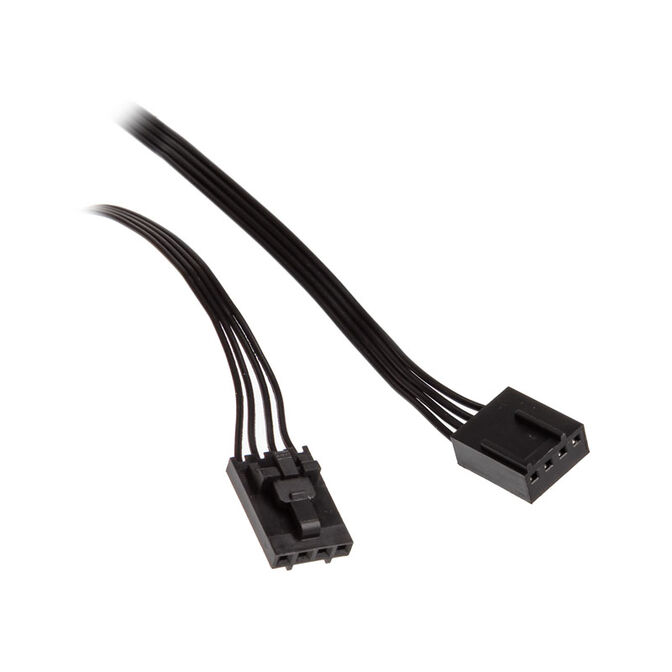

Corsair relies on a proprietary four-pin connector for RGB LED lighting. Each fan has two cables: a 4-pin fan connector with PWM signal and a 4-pin RGB connector in Corsair's own design. The latter connects to the RGB Fan LED Hub. It is important to ensure the correct sequence, as the lights are addressed in ascending numerical order. A light effect always starts with the fan in socket 1. The RGB LED lighting of a total of six fans can be synchronised via an RGB Fan LED Hub.

The hub is connected to the Corsair Lighting Node PRO via a 3-pin cable. The

Corsair Lighting Node PRO

is the actual RGB LED controller and has two connections for hubs, allowing it to control a total of twelve RGB LED fans. It connects to a USB header on the motherboard rather than an RGB header and is controlled via the iCUE software.

Technical Details:

Corsair LL120 RGB Dual Light Loop:
• Dimensions: 120 x 120 x 25 mm (W x H x D)
• Material: Plastic, Rubber
• Colour: White
• Noise level: max. 36 dB(A)
• Speed: 360 - 2,200 RPM
• Airflow: 107.3 m³/h
• Air pressure: 3.0 mmH2O
• Lighting: RGB
  Number of LEDs: 16
• Operating voltage: 7 - 13.2 V
• Current: 0.30 A
• Connections:
  4-Pin PWM
  4-Pin RGB (Corsair)

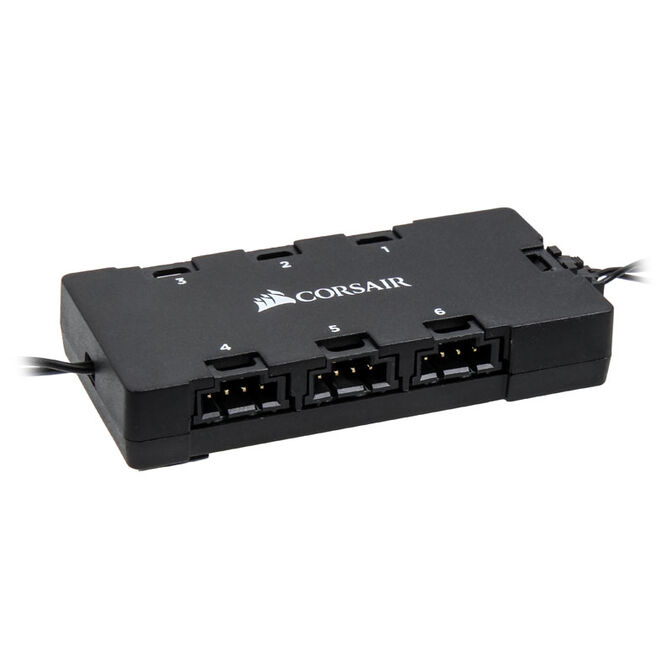

Corsair RGB Fan LED Hub:

• Dimensions: approx. 70 x 12 x 50 mm (W x H x D)
• Weight: approx. 45 g
• Colour: Black
• Connections:
  6x 4-Pin (for fans)
  1x 3-Pin (for controller/remote/JCORSAIR header)
  1x SATA (for power connection)
• Compatibility:
  Corsair Commander Pro RGB LED
  Corsair HD Fan Series
  Corsair LL Fan Series
  Corsair ML Fan Series
  Corsair SP-RGB Fan Series

Lighting Node PRO:

• Lighting Node PRO:
• Dimensions: 55 x 31 x 12 mm (W x H x D)
• RGB LED channels: 2
• Power consumption: 4.5 to 5.5 V

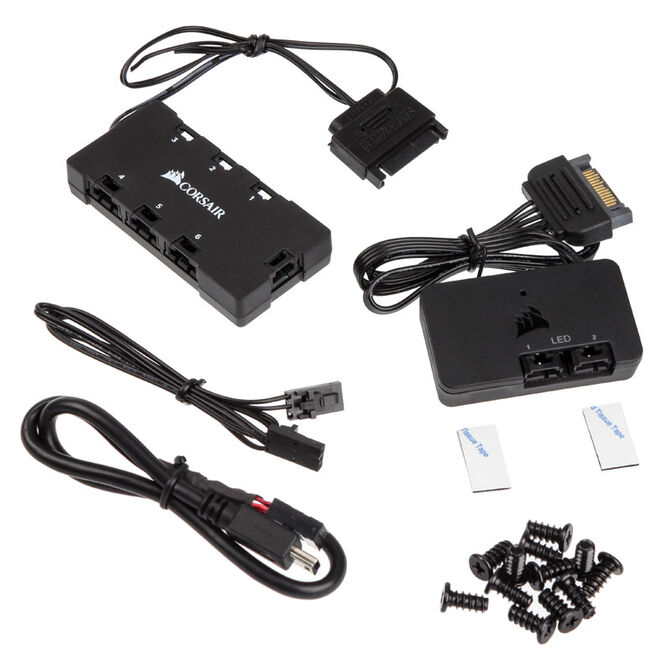

Contents:

• 3x Corsair LL120 RGB Dual Light Loop fans (white)
• 1x Corsair RGB Fan LED Hub
• 1x Corsair Lighting Node PRO
• 12x screws
• 2x double-sided tape
