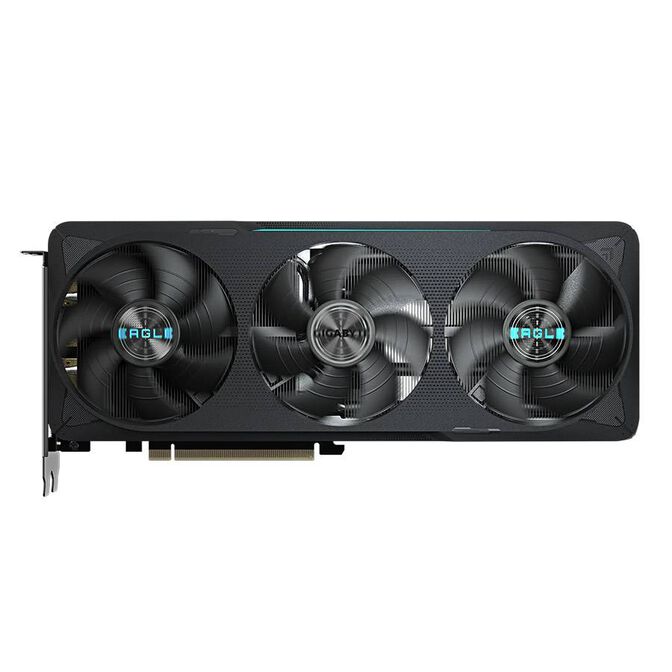

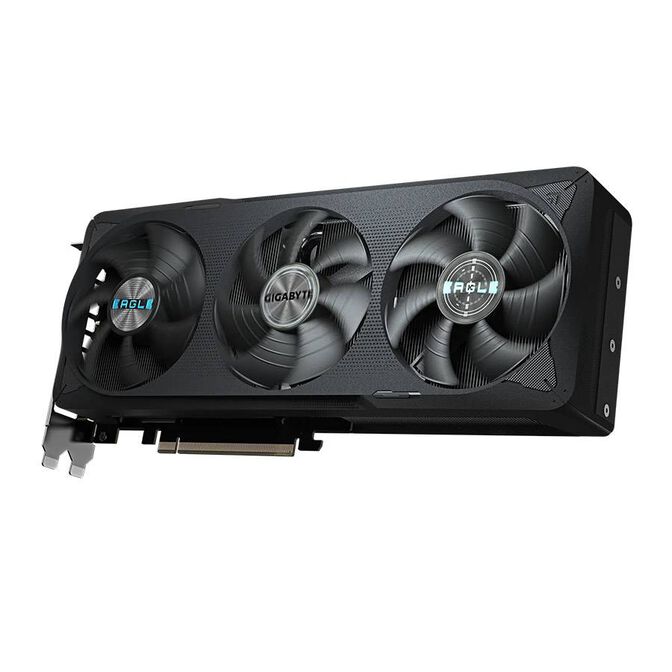

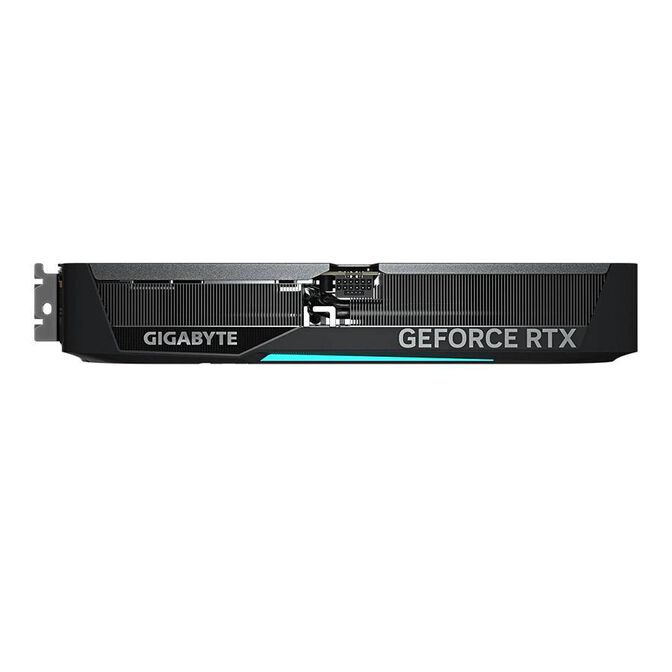

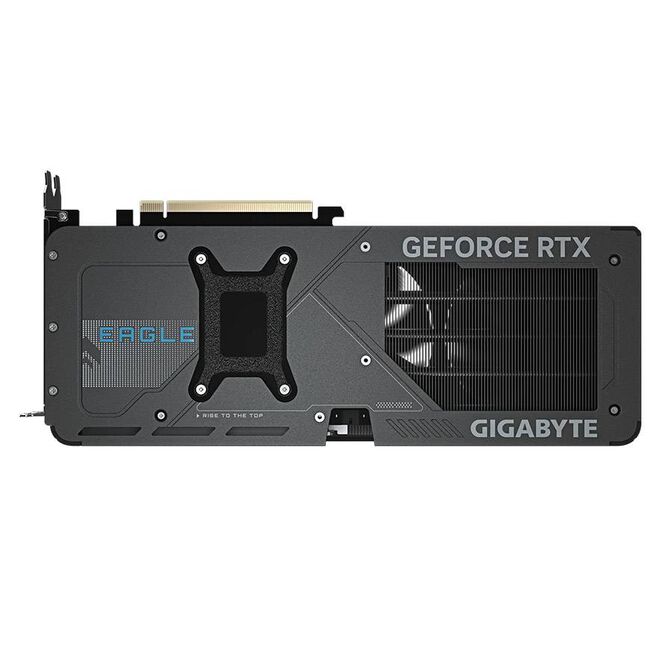

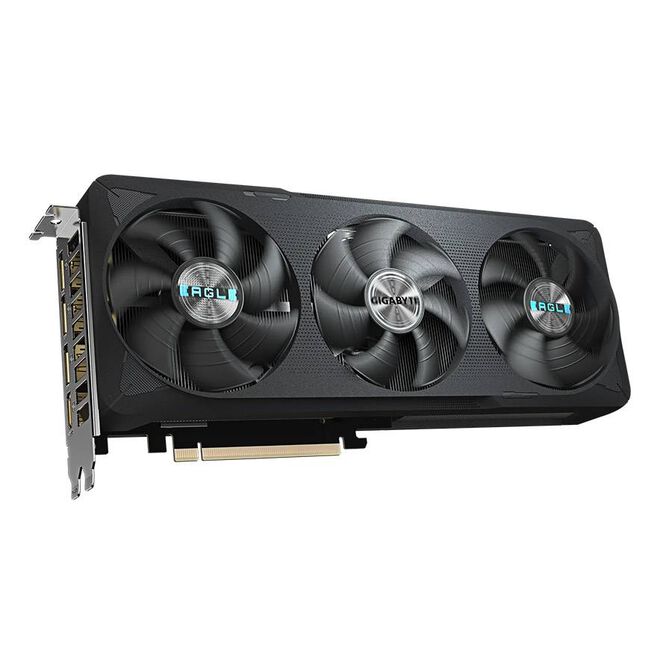

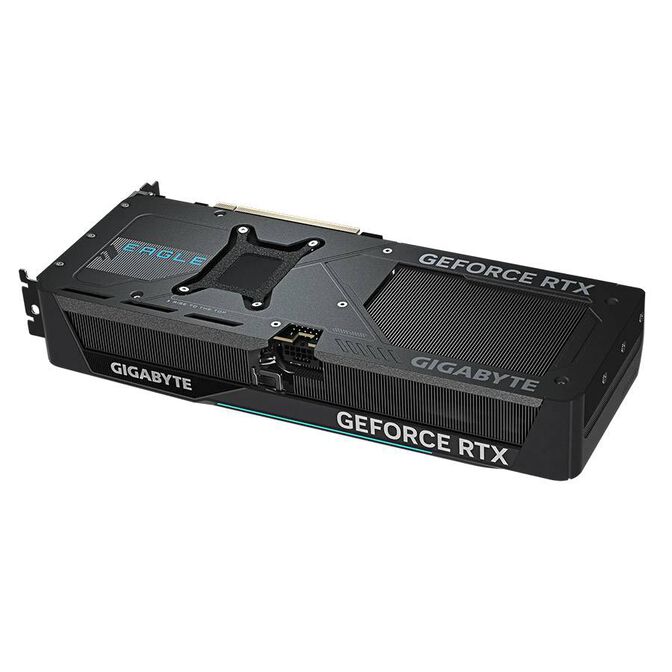

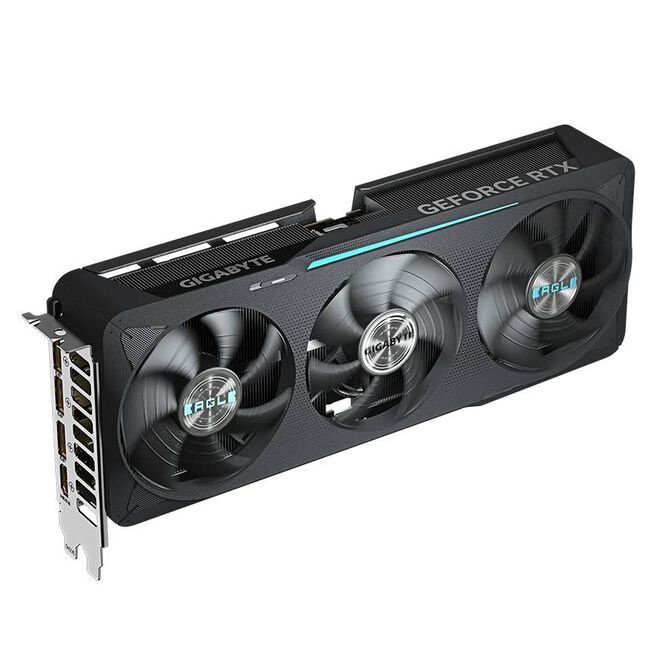

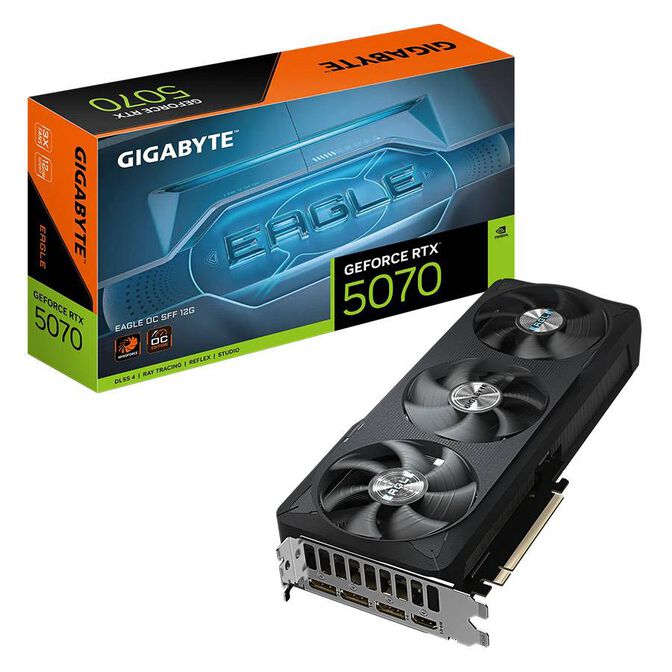

GIGABYTE GeForce RTX 5070 Eagle OC 12G SFF, 12288 MB GDDR7
- Efficient triple-fan cooler design with semi-passive cooling
- Subtle RGB LED lighting
- Extremely high base clock of the GPU: 2,325 MHz
- Enormous boost clock of the GPU: 2,587 MHz
- Next-generation graphics memory: 12 GB GDDR7
- Extremely high memory clock: 1,750 MHz (effectively 28 GHz)
- Wide memory interface of 192 bits
- Large memory bandwidth of 672 GB/s
- Pure computing power: 6,144 CUDA cores (shaders)
- Additional PCIe power connectors: 1x 16-pin 12VHPWR

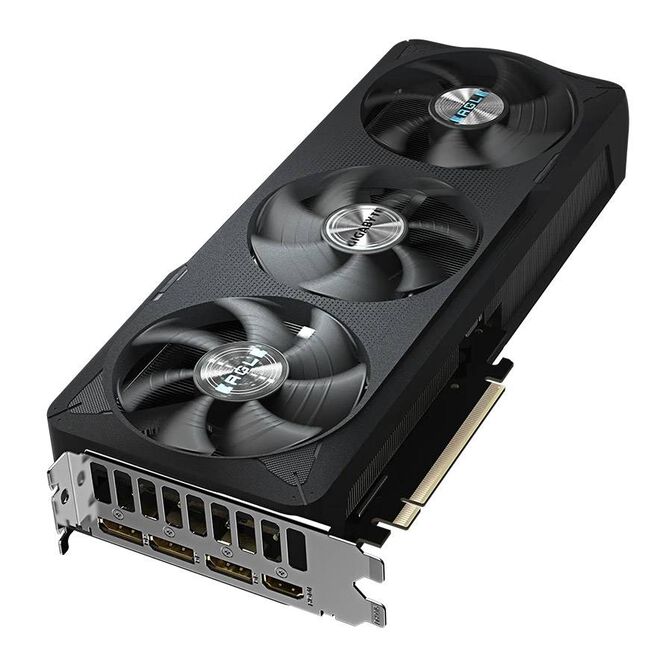

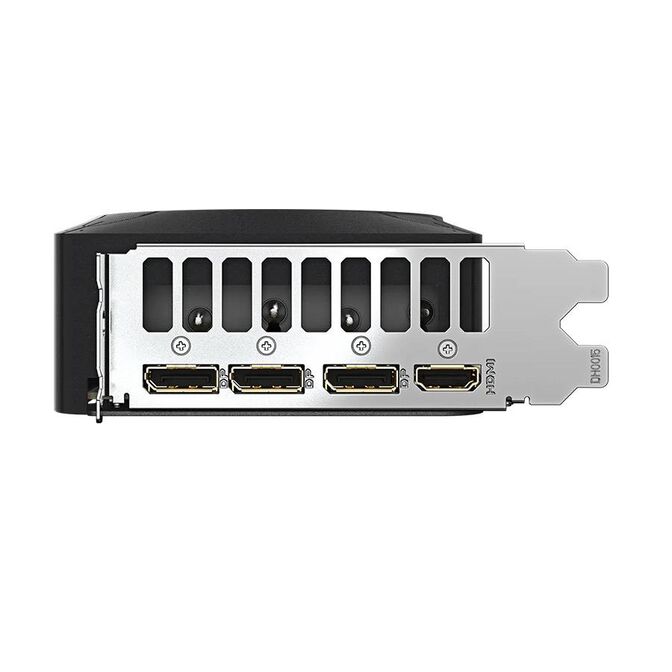

- Video outputs: 3x DP 2.1b, 1x HDMI 2.1
- Supports DLSS 4 and NVIDIA Reflex 2
The GIGABYTE GeForce RTX 5070 Eagle OC SFF 12G in Detail
The GeForce RTX 5070 is a powerful gaming graphics card for players seeking top-notch performance at WQHD resolution. With its efficient graphics processor and modern GDDR7 graphics memory, it delivers smooth gameplay and impressive details – ideal for high to very high graphics settings.
Thanks to improved rasterization and ray tracing performance compared to the previous generation, you benefit from realistic lighting effects, precise shadows, and sharp reflections. The new Blackwell architecture and support for PCI Express 5.0 ensure that you will enjoy optimal performance in upcoming games.
Whether fast-paced action or atmospheric open worlds – the RTX 5070 delivers stable frame rates and a consistent gaming experience at 1080p and 1440p. With DLSS 4 and Multi Frame Generation, you can take advantage of advanced AI technology for significantly higher frame rates and even smoother visuals – even in demanding game scenes.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
290 mm
|
|
Width
|
120 mm
|
|
Height
|
50 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RTX 50 Series
|
|
GPU Model
|
NVIDIA GeForce RTX 5070
|
|
GPU Series Name
|
NVIDIA GeForce RTX 5070
|
|
Graphics Chip
|
GB205-300
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
6144
|
|
Tensor Cores
|
192
|
|
Raytracing Cores / Ray Acceleratorss
|
48
|
|
GPU Memory Type
|
GDDR7
|
|
Slot Type Standard
|
PCIe 5.0
|
|
GPU Memory Size (GB)
|
12
|
|
GPU Memory Interface (bit)
|
192
|
|
GPU Memory Bandwidth (GB/s)
|
672
|
|
GPU Memory Clock (MHz)
|
1750
|
|
GPU Memory Clock Effective (Gbps)
|
28
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
2325 MHz
|
|
Max. GPU Clock (Boost)
|
2587 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
3
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
16-Pin PCIe 5.0 - 12v-2x6 (1x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (3x), HDMI (1x)
|
|
Display Connector Standards
|
DisplayPort 2.1, HDMI 2.1
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
2 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
NVIDIA G-SYNC
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
Tensor Cores
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
