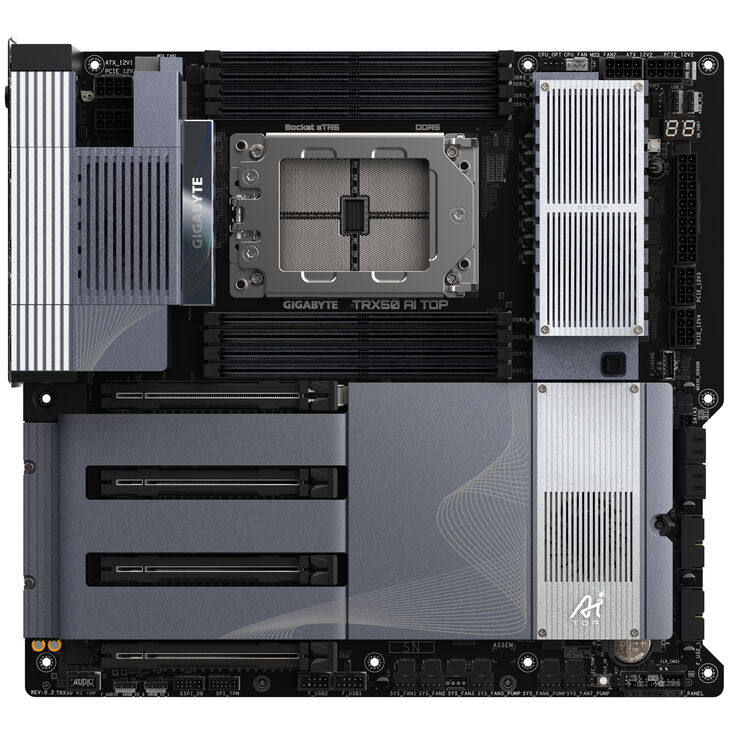

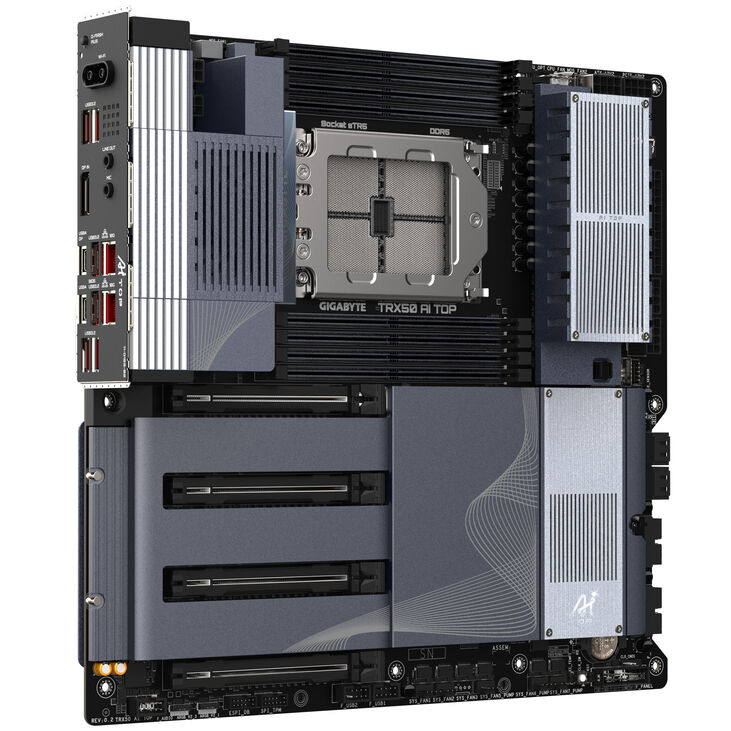

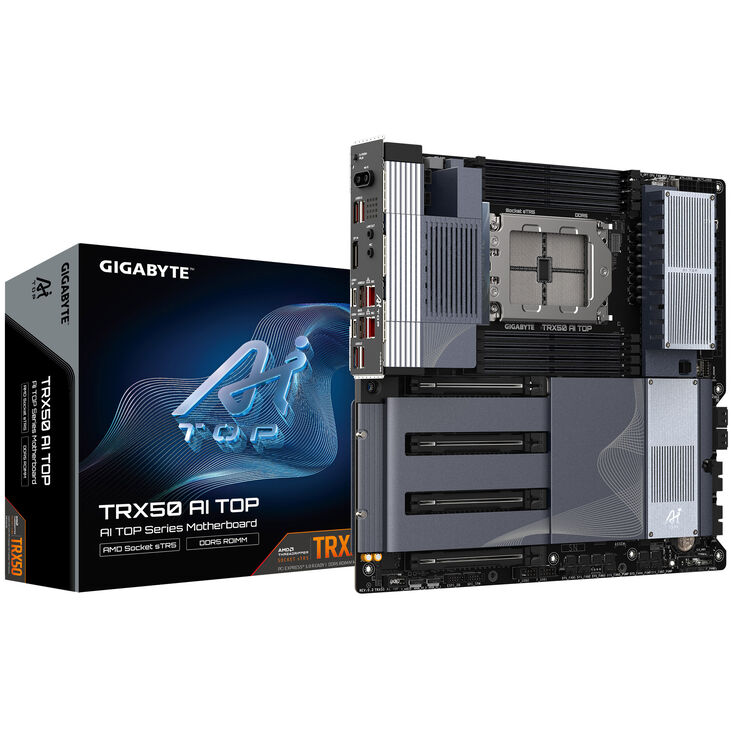

GIGABYTE TRX50 AI Top Motherboard, Socket sTR5, AMD TRX50, E-ATX - DDR5

• 3x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x16) for multiple GPUs
• Up to 2 TB DDR5-ECC memory up to 7,800 MHz for large & fast data processing
• 4x M.2-PCIe-5.0 slots for fast data connectivity
• USB on the I/O panel: 2x USB4 Type-C, one with DP, 6x USB-A 3.2
• OC features: 16+8+4 phase VRMs with heat spreader, BIOS flashback, clear CMOS
• A total of 8 connectors for fans and pumps
• Optimised for AI training through tools like AI Top Utility

The GIGABYTE TRX50 AI Top in detail:

The GIGABYTE TRX50 AI Top is among the workstation motherboards for AMD's Ryzen Threadripper 7000 CPUs and offers a multitude of features for the desktop workstation platform and AI training. The combination of the sTR5 socket and the TRX50 chipset is required for the "prosumer" processors of the Threadripper 7000 series to support their numerous business and professional functions.

Other important features of the GIGABYTE TRX50 AI Top motherboard include a WLAN/BT module (Qualcomm Wi-Fi 7 QCNCM865, 802.11be) as well as two LAN ports with 10 Gbit/s (Marvell AQtion AQC113C). In terms of audio, the manufacturer relies on the Realtek ALC4080 Audio Codec. This provides two 3.5-millimetre audio jacks on the I/O panel.

Connections for every need

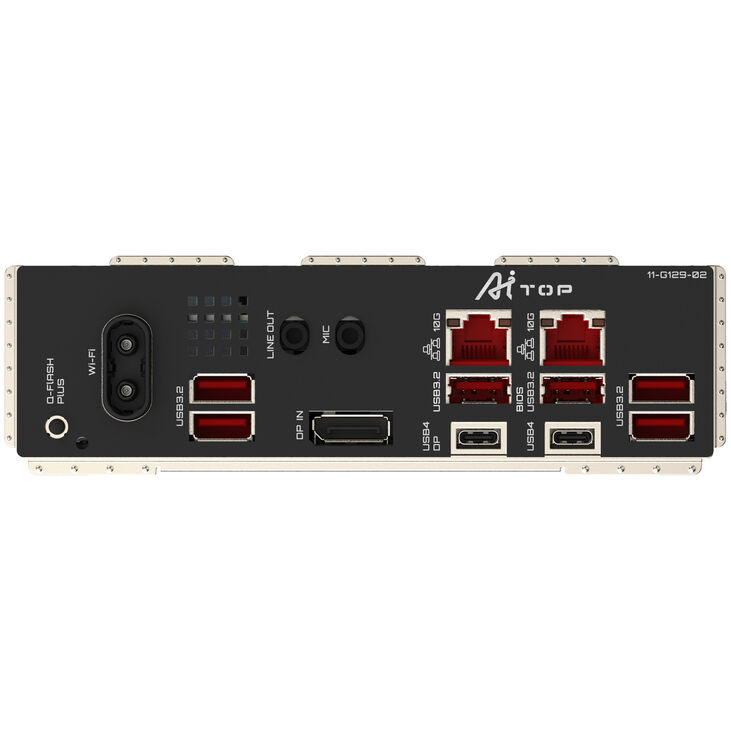

The motherboard has two USB4 connections. These always come in the form of a USB Type-C socket and achieve a maximum data transfer rate of 40 Gbit/s. Additionally, one of them supports DisplayPort. The I/O panel also features six USB 3.2 ports of type A. These achieve maximum speeds of 10 Gbit/s per port.

Furthermore, the motherboard internally has a USB 3.2 Type-C connection (Key A Header) for modern PC cases. Additionally, four USB 3.0 ports (two headers) and four USB 2.0 ports (two headers) are provided.

Expansion slots and connections for drives

Perfect for AI training

The GIGABYTE TRX50 AI Top has several features that optimise the motherboard for AI training. On the one hand, the DDR5 ECC R-DIMM RAM support of up to 2 TB offers immense data storage. Furthermore, four PCIe 5.0 x16 slots provide support for multiple GPUs, thus increasing computing power. All this is rounded off by AI Top Utility, software for easy fine-tuning and management of AI model training.
