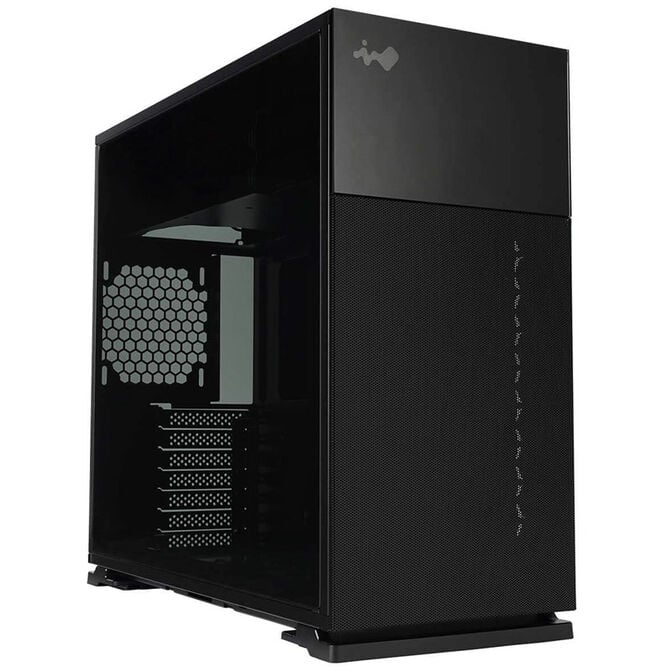

InWin 127 Mid Tower Tempered Glass - Black
- Efficiently designed interior with power supply located at the top

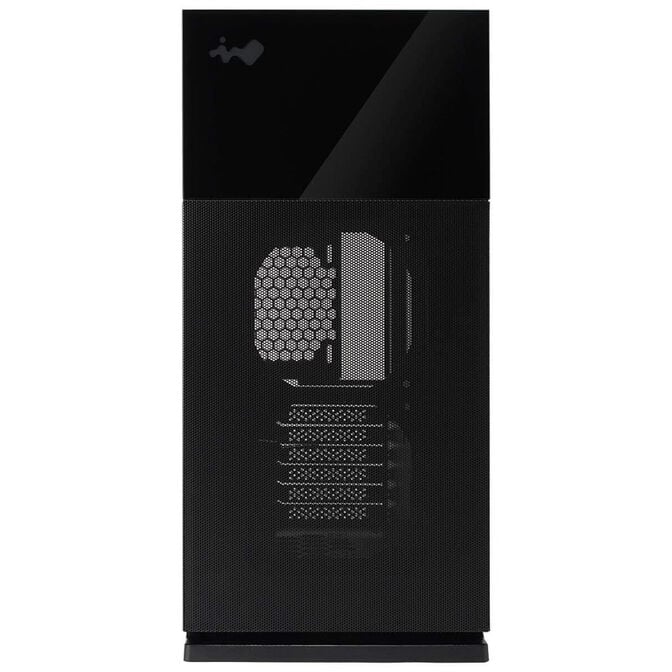

- Tinted tempered glass side panel and mesh front
- Suitable for motherboards in ATX, Micro-ATX, or Mini-ITX form factors
- I/O panel with 1x USB 3.2 Type C, 2x USB 3.0, and audio jacks

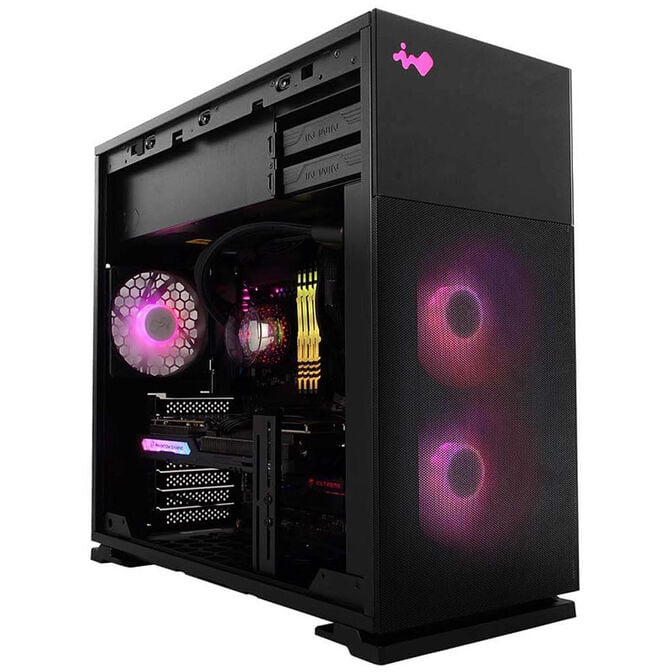

- Ample space for powerful air or water cooling
- 2x 2.5"/3.5" & 2x 2.5" drive bays available
InWin N127: Unique Design and Plenty of Space

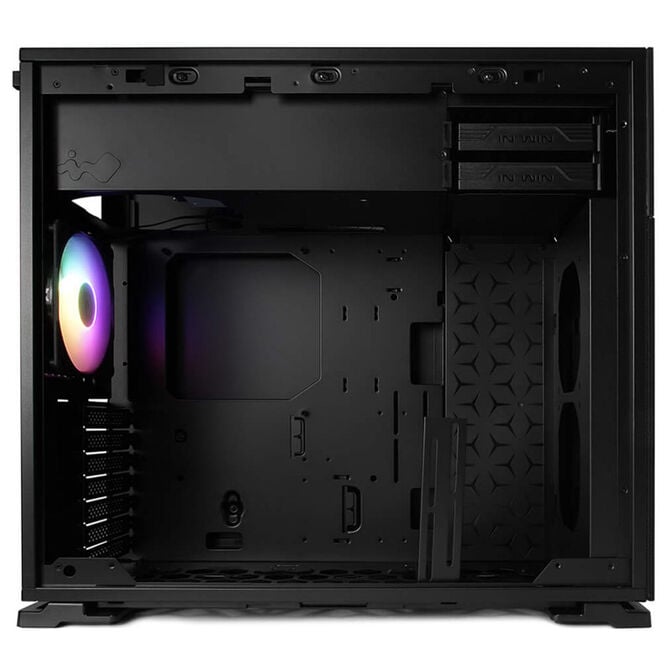

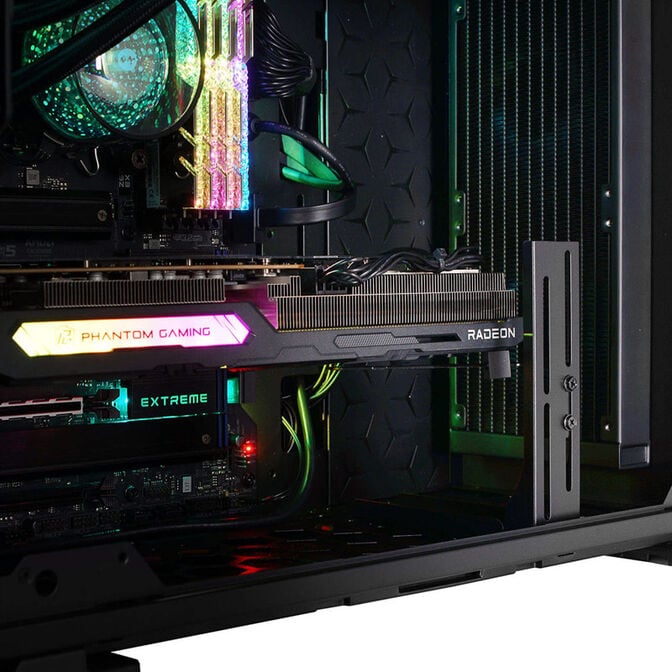

With the InWin N127, the case specialist presents an original mid-tower offering plenty of room for hardware and an unusual interior layout. The power supply along with its chamber and the 3.5-inch drives are positioned at the top. The entire left side features a tempered glass window with a quick-release latch, behind which motherboards up to ATX size and graphics cards with support brackets up to 370 mm can be admired.
Options for Air and Water Cooling
The InWin N127 exclusively uses 120 mm fans: the base can accommodate three fans or a 360 mm radiator, the rear supports one fan or a 120 mm radiator. The front can house either a 240 mm radiator or two 120 mm fans. Traditional CPU coolers can be up to 160 mm tall.
Design and Interior Concept

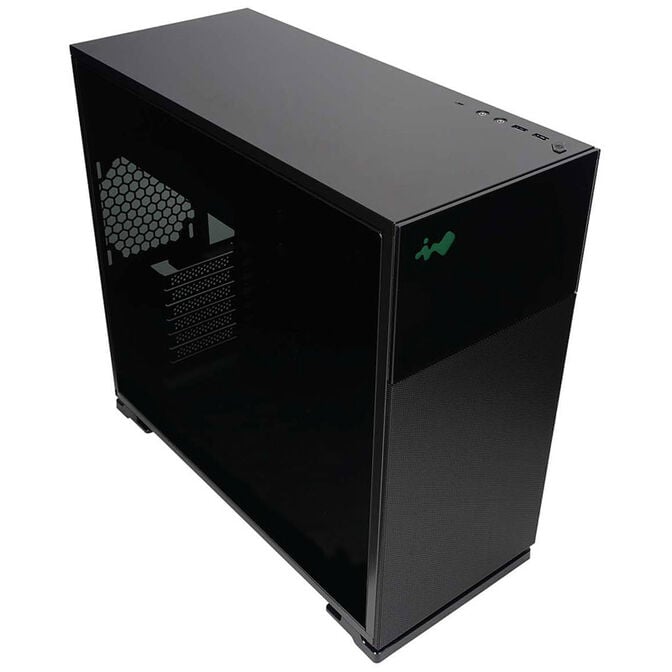

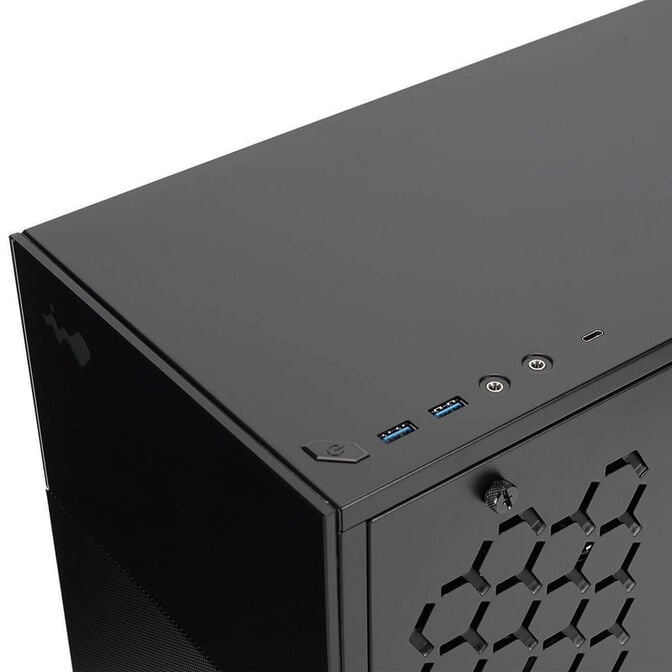

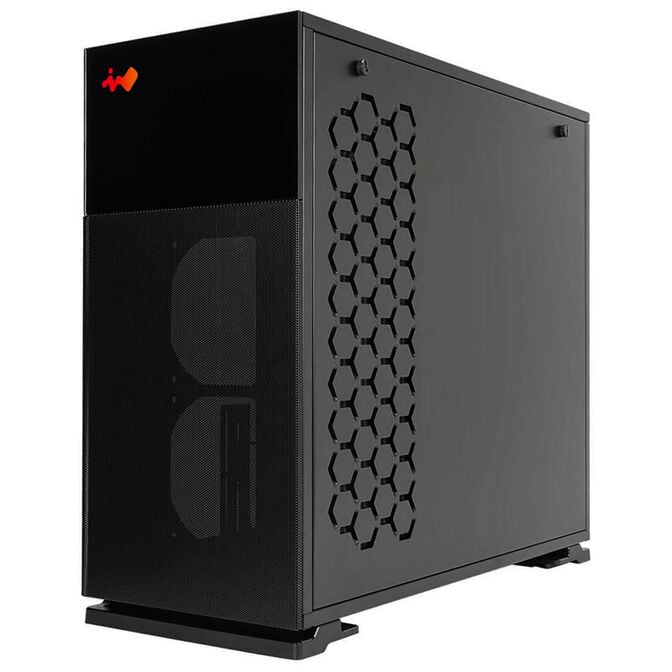

The InWin N127 impresses with a clear design language. The unadorned design of the mid-tower is dominated by smooth outer surfaces. The I/O panel is located on the top and offers a modern USB 3.2 Type-C port as well as two USB 3.0 Type-A ports. A discreet stand lifts the case off the ground, and the tinted tempered glass side panel on the left side provides a view inside.

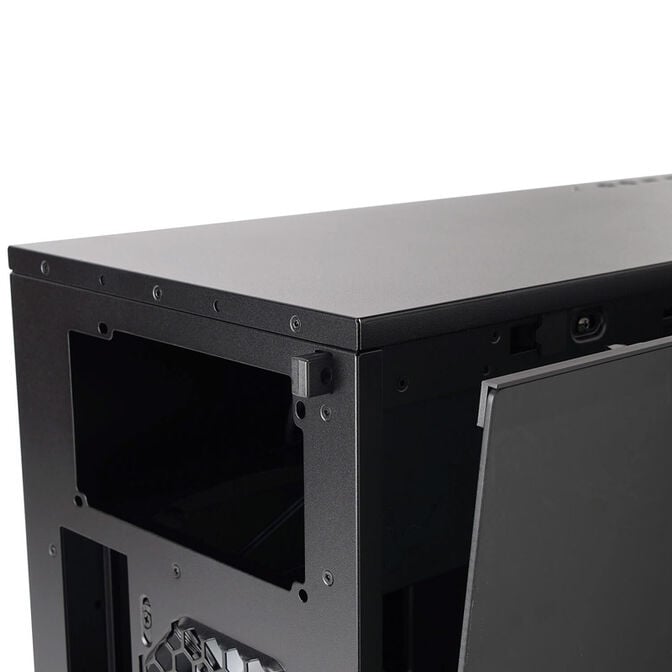

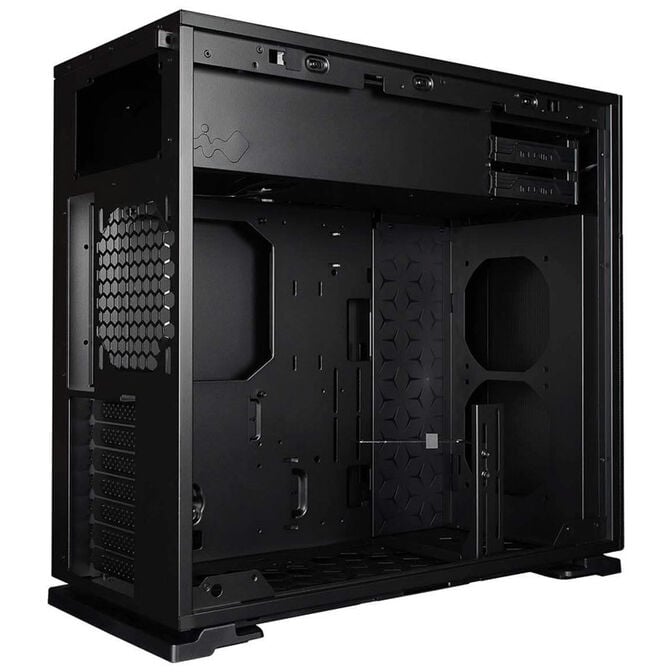

The top-mounted power supply chamber accommodates a power supply up to 200 millimetres in length. Up to two 2.5-inch drives and additional 2.5- or 3.5-inch drives can be installed in the InWin N127. Graphics cards can be up to 345 to 370 millimetres long.
Technical Details:
- Dimensions: 210 x 445 x 476 mm (W x H x D)
- Weight: approx. 8.7 kg
- Material: Steel, Tempered Glass, Plastic
- Colour: Black
- Form factor: ATX, Micro-ATX, Mini-ITX
- Fans (possible):
2x 120 mm (front)
3x 120 mm (bottom)
1x 120 mm (rear) - Radiator mountings (instead of fans):
1x max. 240 mm (front)
1x max. 120 mm (rear)
1x max. 360 mm (bottom) - Filters: Bottom (removable)
- Drive bays:
2x 2.5"/3.5" slots
2x 2.5" slots - Power supply: 1x standard ATX12V (optional)
- Expansion slots: 7
- I/O panel:
1x USB 3.2 Type C
2x USB 3.0
2x 3.5 mm jack (1x audio in/out each) - Maximum graphics card length: 370 mm
- Maximum CPU cooler height: 160 mm
- Maximum power supply length: 200 mm
- Dimensions: 210 x 445 x 476 mm (W x H x D)
- Weight: approx. 8.7 kg
- Material: Steel, Tempered Glass, Plastic
- Colour: Black
- Form factor: ATX, Micro-ATX, Mini-ITX
- Fans (possible):
2x 120 mm (front)
3x 120 mm (bottom)
1x 120 mm (back) - Pre-installed:
1x 120 mm InWin Luna AL120 (ARGB, PWM, back) - Radiator mountings (instead of fans):
1x max. 240 mm (front)
1x max. 120 mm (back)
1x max. 360 mm (bottom) - Filter: Bottom (removable)
- Drive bays:
2x 2.5-/3.5-inch slots
2x 2.5-inch slots - Power supply: 1x Standard ATX12V (optional)
- Expansion slots: 7
- I/O panel:
1x USB 3.2 Type C
2x USB 3.0
2x 3.5 mm jack (1x audio in/out each) - Maximum graphics card length: 370 mm
- Maximum CPU cooler height: 160 mm
- Maximum power supply length: 200 mm
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
476 mm
|
|
Width
|
210 mm
|
|
Height
|
445 mm
|
|
Weight
|
8.3 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ITX, Mini-ITX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
160 mm
|
|
Max. GPU Length
|
367 mm
|
|
Max. PSU Length / Depth
|
201 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear top
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Max. Number of Fans
|
6
|
|
120 mm fans
|
4
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Dual (240 mm), 1x Single (120 mm), 1x Triple (360 mm)
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
4
|
|
Max. 3.5 Inch Drives
|
1
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
2
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front / Lid
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
No
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
ABS, SPCC (steel), Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Additional Contents
|
|
|
Included fans
|
None
|
