- Compact and elegant gaming case for ATX motherboards
- Mesh front panel for improved airflow, tempered glass side panel
- Designed for vertical airflow with up to eight possible fans
- Vertically adjustable power supply for longer graphics cards
- GPU's can be at least 342 mm, and up to 400 mm long
- Room for up to two 360 mm radiators simultaneously
- Equipped with an 8-inch display, to show system information for example
- Mini-HDMI to HDMI cable and USB-C to USB-A cable for the display included
- Mini-HDMI to HDMI cable and USB-C to USB-A cable for the display included
Jonsbo D41: The versatile ATX case
With the D41, Jonsbo presents a ATX case from its Pine Cones series that is as compact and elegant as it is versatile. It can easily accommodate the latest gaming hardware. Whether you prefer air or water cooling, the Jonsbo D41 offers plenty of space for both. Depending on the size of your GPU and how many fans you need, you can position the PSU on the front to suit your needs.
Available in different versions, the choice is yours

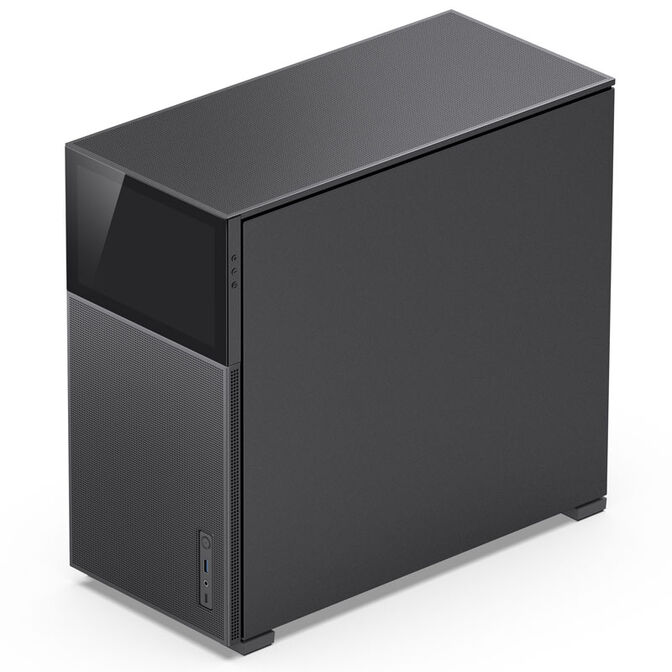

The Jonsbo is available in several versions, one with and one without mesh and even with a large TFT-LCD at the front, on which you can display system information or animated screensavers. No matter what you prefer, with the Jonsbo D41 you can create your perfect gaming setup. This version in black has a mesh front panel for improved airflow.
Personalise your Jonsbo D41

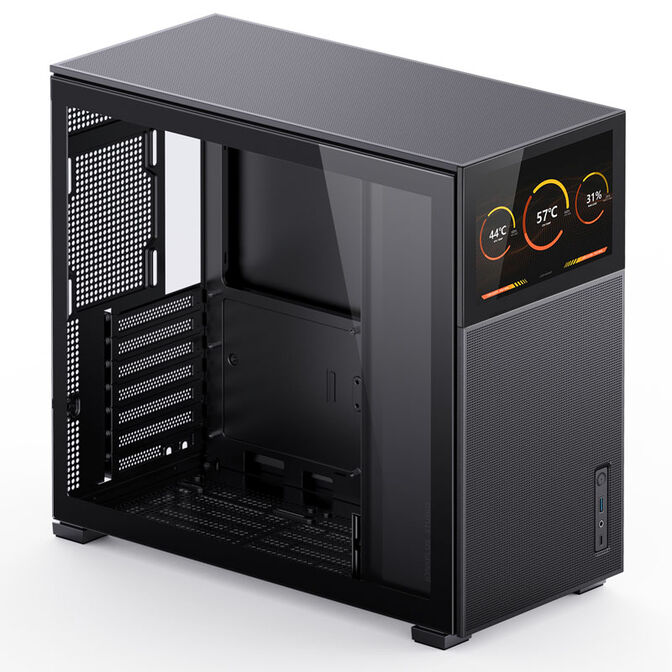

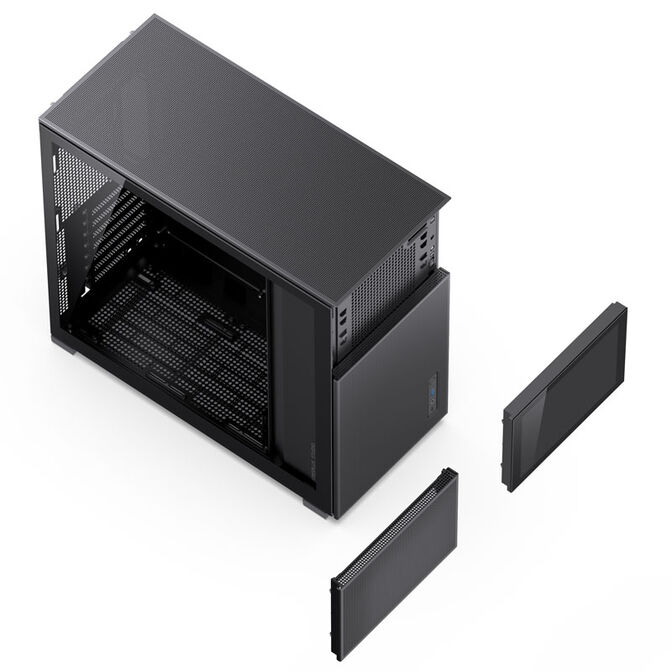

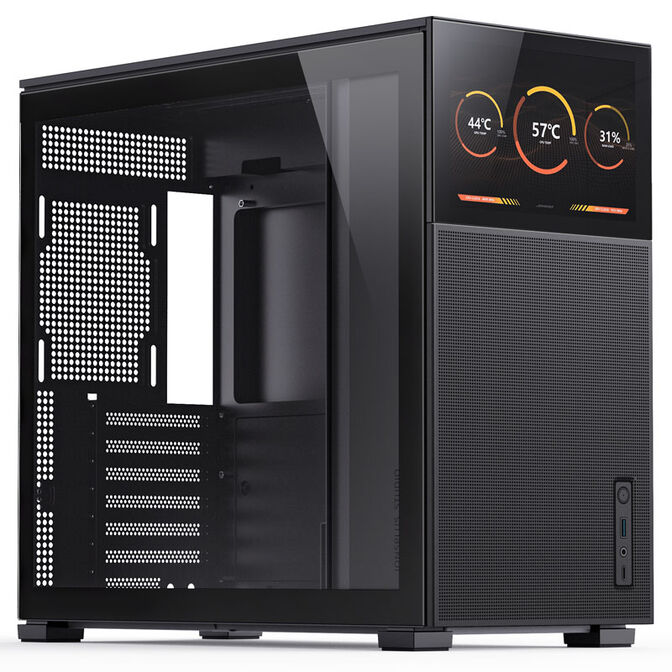

In this version of the Jonsbo D41, a TFT-LC display with a diagonal of 8 inches is installed at the front. On 1,280 x 800 pixels, you can display system information or animated screensavers, for example, with the help of the AIDA software. However, you have to purchase the application yourself. The display is protected by a tempered glass pane. You can also replace the screen with the normal bezel that also comes with the case and place it separately on your gaming desk. The display is connected via a mini HDMI port. You can switch the screen on and off and control the brightness via buttons on the side.

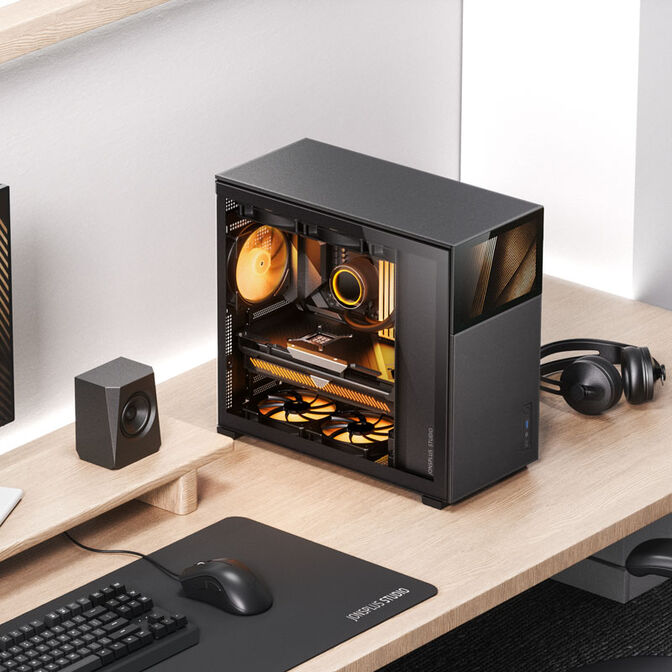

High-end gaming hardware: Well presented

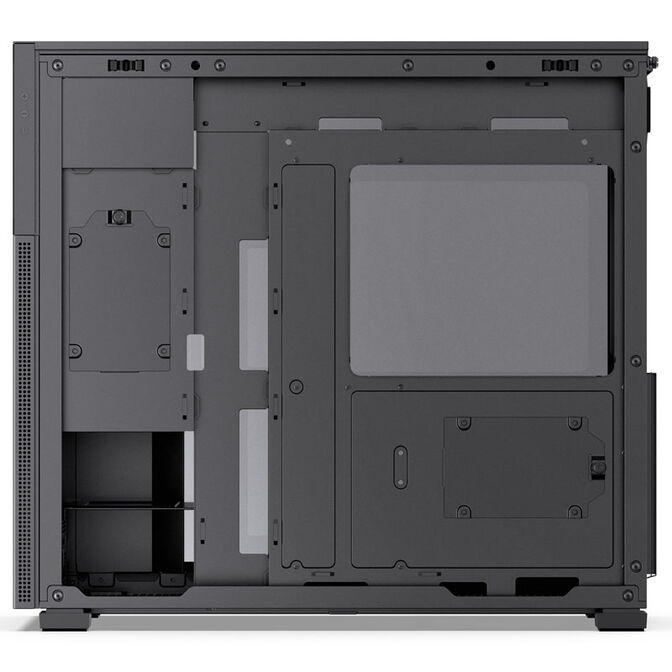

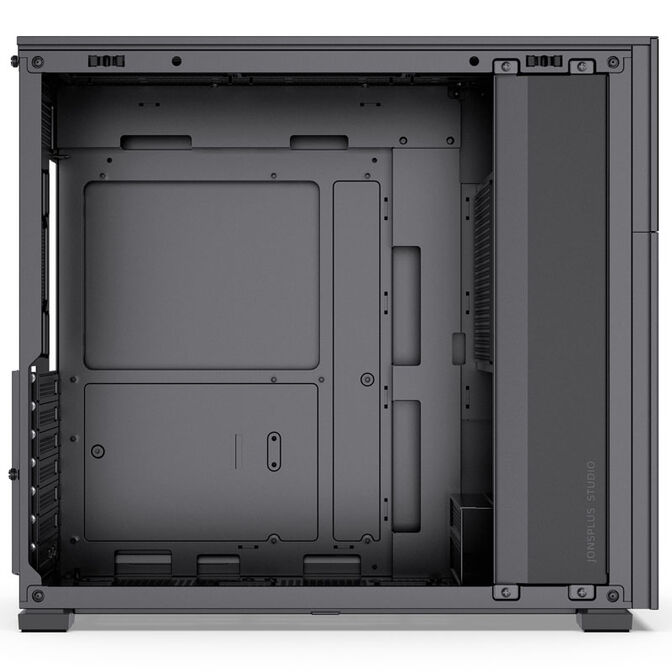

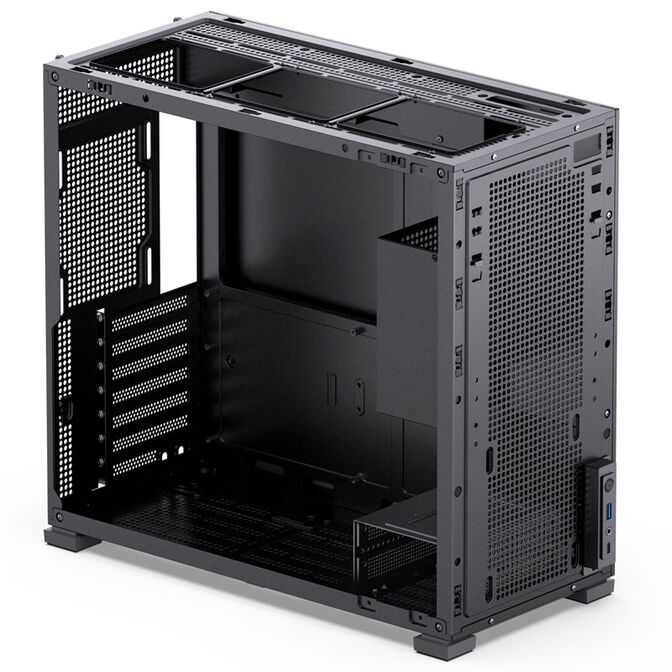

The interior of the Jonsbo D41 is clearly visible through the tempered glass side panel. In addition to the ATX mainboard, a graphics card with a minimum length of 342 mm and a maximum length of 400 mm can be installed inside. The PSU behind a shroud can be moved vertically by 140 mm in four steps. There is space for two SSDs behind the motherboard bracket. There is also plenty of space for cable management. An HDD can be placed on the floor at the front, forfeiting a third fan.
Plenty of room for fans …
The three possible 120 mm fans at the bottom above a dust filter are mounted offset so that the air coming in is directed past the graphics card. Alternatively, you can also install two 140 mm fans here. At the top, another three 120 mm or two 140 mm fans can be installed to convey the heated air to the outside through a fine mesh grille. There is room for one more 120 mm fan at the rear and one at the front.
... and radiators

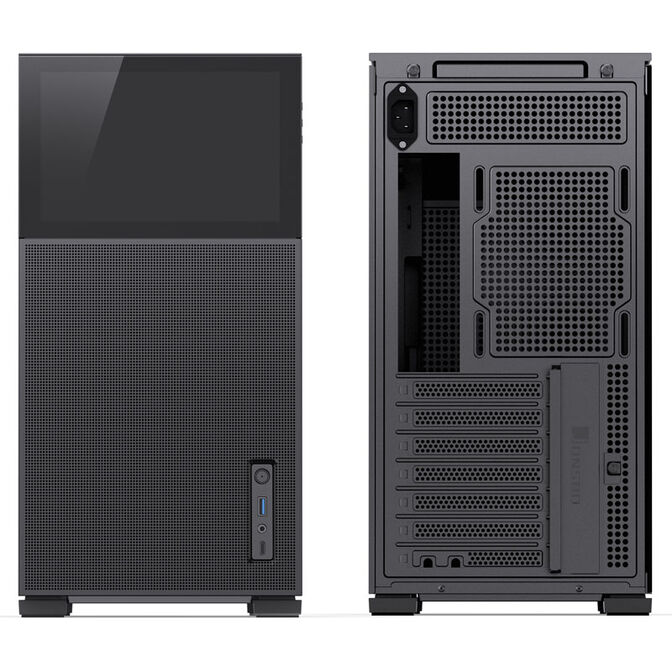

Alternatively, radiators up to 360 mm in size can be installed at the bottom and at the roof. There is also room for a 280 mm radiator at the top. If you want to use a CPU cooler, it can be up to 168 mm high. The I/O panel at the bottom right on the front panel offers a USB 3.1 port type C, a USB 3.0 port type A as well as a combined 3.5 mm audio jack and the usual power and reset switch.
Technical Details:
- Measurements: 205 x 407 x 452 mm (W x H x D)
- Material: Plastic, tempered glass, steel
- Weight: 5,9 Kg
- Colour: Black
- Formfactor: ATX, Micro-ATX, DTX, Mini-ITX
- Total fans possible:
Front: 1x 120 mm
Roofl: 3x 120 / 2x 140 mm
Floor: 3x 120 / 2x 140 mm
Rear: 1x 120 mm
- Pre-installed fans:
none
- Radiator mountings:
Roof: 1x max. 280 / 360 mm
Floor: 1x max. 360 mm
Rear: 1x max. 120 mm
- Drives:
3x 2,5 Zoll (motherboard bracket)
2x 3,5 Zoll (floor)
- PCI slots: 7
- I/O panel:
1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
1x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x 3,5 mm Klinke (4-po, TRRS)
1x Power / Reset
- Max. GPU length:
342 to 400 mm (depending on PSU placement)
- Max. CPU cooler height: 168 mm
- PSU: ATX, max. 100 - 220 mm length
- Display:
Type: TFT-LCD
Diagonal: 8 Zoll
Measurements: 205,3 x 131,7 x 24,6 (W x H x D)
Resolution: 1,280 x 800 Pixel
Aspect ratio: 16:10
Colours: 16,7 Mio.
Brightness: 300 cd/m²
Contrast: 1:1.000
Reaktionszeit: 30 ms
Refresh rate: 60 Hz
Video in: 1x Mini-HDMI
Power: 1x USB-C
Controls: 1x on / off, 2x brightness
