Kolink Observatory MX Mesh ARGB PC Case, Mid Tower - White
- Mid-tower PC case with dual-tone design and half-hinged tempered Mesh panel
- Mesh front panel and dedicated solid steel PSU shroud
- Support for ATX motherboards and GPUs up to 330mm long
- Five pre-installed Kolink Umbra ARGB fans
- Four storage drive bays

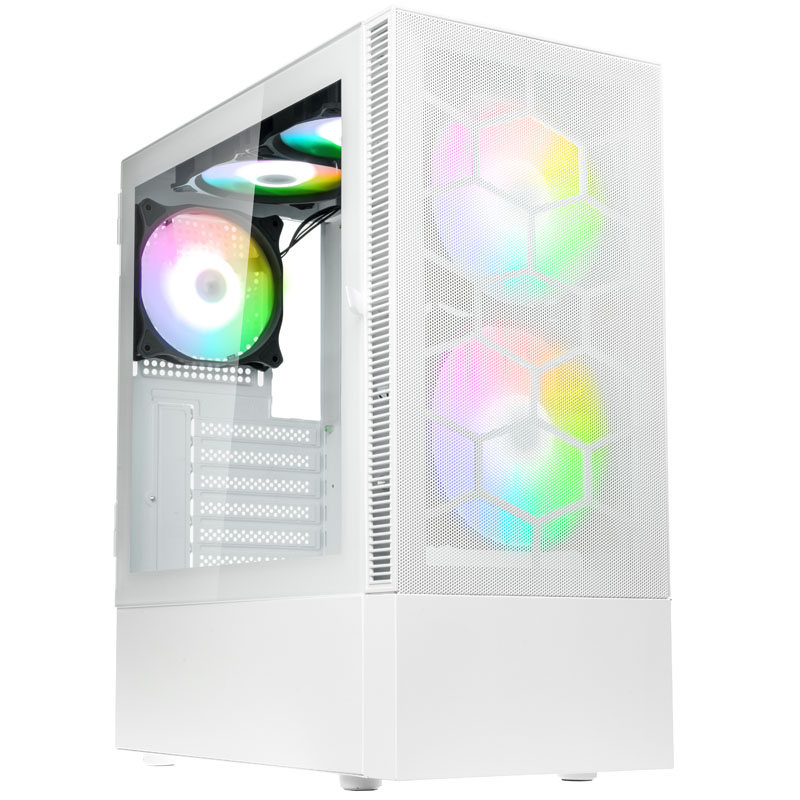

The Kolink Observatory MX Mesh: Breathtaking Front View
House your gaming PC in something bold with the Kolink Observatory MX Series PC Case. The dual-tone colouring, half-hinged Tempered Glass side panel, and front mesh create a strong aesthetic for any gaming PC. Meanwhile, the five pre-installed Kolink Umbra ARGB fans provide ample airflow to keep your components at optimum temperature.
Choose Between Aesthetics and Airflow
The Kolink Observatory MX Series features two styles, each available in three colourways. You can choose between the Glass or Mesh editions, and then black, white, or black and white colourings.
This is the Mesh model in white. The front panel has a mesh design, to ensure ample airflow. Keeping the aesthetic sleek, the dedicated PSU shroud is formed with solid steel panelling. As the white model, the exterior, interior, and shroud are all white, with a two-tone material finish for a bold effect.
Generous Hardware Support

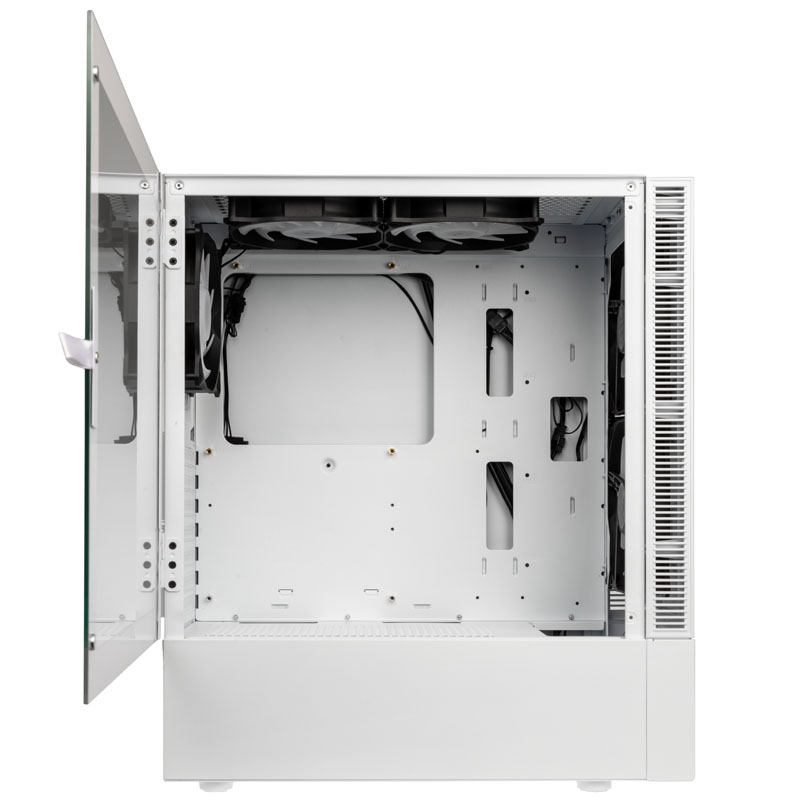

More than just its good looks, the Kolink Observatory MX Mesh has incredible support for a variety of hardware. This chassis can accommodate a Mini-ITX, Micro-ATX, or ATX motherboard, with seven expansion slots on the rear panel for PCIe devices. In the main chamber, there is 330mm clearance for GPUs.
The dedicated PSU shroud can host power supplies up to 180mm. There is also a storage drive cage with four bays. Two can hold either 2.5" SSDs or 3.5" HDDs, whilst the other two are for 2.5" drives only.
Airflow for Days
To keep your gaming PC at optimum temperature, the Kolink Observatory MX Mesh can support both air and water-cooling hardware. There are five Kolink Umbra ARGB fans pre-installed across the chassis, to bolster the air flowing through the mesh panelling. The front features two 140mm fans. Upon the top, there are two 120mm models, and the rear holds a singular 120mm fan, too.
Alternatively, there is support for radiators and additional fans throughout the chassis. The front panel can host a maximum of two 140mm fans or a radiator either 240mm, 280mm, or 360mm long. For the back panel, the 120mm fan mount can instead support a 120mm radiator. The top panel can only support the two 120mm fans, but there are also two 120mm brackets on the PSU shroud to provided dedicated cooling for the second chamber.
Finally, the Kolink Observatory MX Mesh PC Case has clearance for CPU coolers up to 160mm tall.
Additional Features
The Kolink Observatory MX Mesh features a USB 3.0 and USB 2.0 port as part of the I/O panel, with an HD audio jack. There is also a reset button that can be used to control the fans. Alternatively, these can be connected via a 3-pin 5V header and controlled through the lead fan.
Technical Details:
- Dimensions: 200 x 440 x 350 mm (W x H x D)
- Material: Steel, Tempered Glass
- Weight: approx. 5.6 kg
- Colour: White
- Formfactor: ATX, Micro-ATX, Mini-ITX
- Fan Support:
Front: 2x 120 / 140 mm
Top: 2x 120 mm
Rear: 1x 120 mm
PSU Shroud: 2x 120 mm - Pre-installed:
Front: 2x 140 mm
Top: 2x 120 mm
Rear: 1x 120 mm - Radiator Mountings:
Front: 240 / 280 / 360 mm
Rear: 1x 120 mm - Drive Bays:
2x 3,5" / 2,5" (HDD cage)
2x 2,5" (HDD cage) - PCI slots: 7
- I/O Panel:
2x USB 3.0 (Typ A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x USB 2.0 (Typ A, max. 480 Mbit/s)
1x 3,5 mm HD-Audio
1x Power Button
1x Reset Button / Fan control - GPU Clearance: 330 mm
- CPU Cooler: Up to 160 mm
- PSU: max. 180 mm clearance
|
Colour
|
|
|
Primary Colour
|
White
|
|
Secondary Colour
|
Black
|
|
Fan Main Colour (Frame)
|
Black
|
|
Fan Main Colour (Rotor)
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
350 mm
|
|
Width
|
200 mm
|
|
Height
|
440 mm
|
|
Weight
|
5.6 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
160 mm
|
|
Max. GPU Length
|
330 mm
|
|
Max. PSU Length / Depth
|
180 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (2x)
|
|
Case Fan Support (Front)
|
120mm Fan (2x), 140mm Fan (2x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (2x)
|
|
Max. Number of Fans
|
7
|
|
120 mm fans
|
7
|
|
140 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Triple (360 mm)
|
|
Radiator/AIO Support (Front)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
4
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
2
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type A Ports Total
|
3
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
1
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Mesh, Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
RGB Controller
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
2x 140 mm, 3x 120 mm
|
