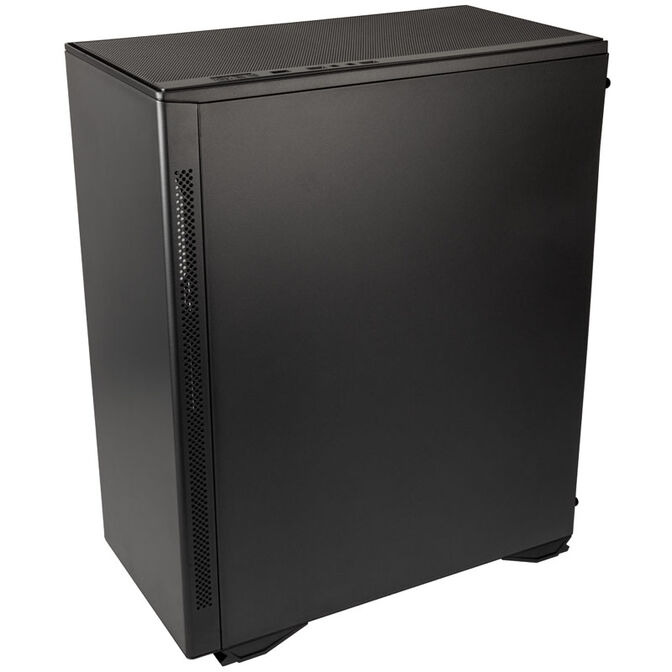

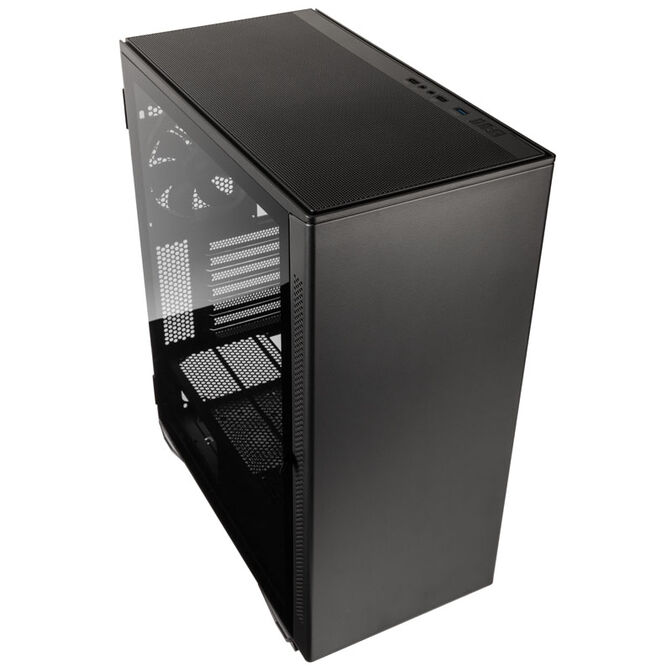

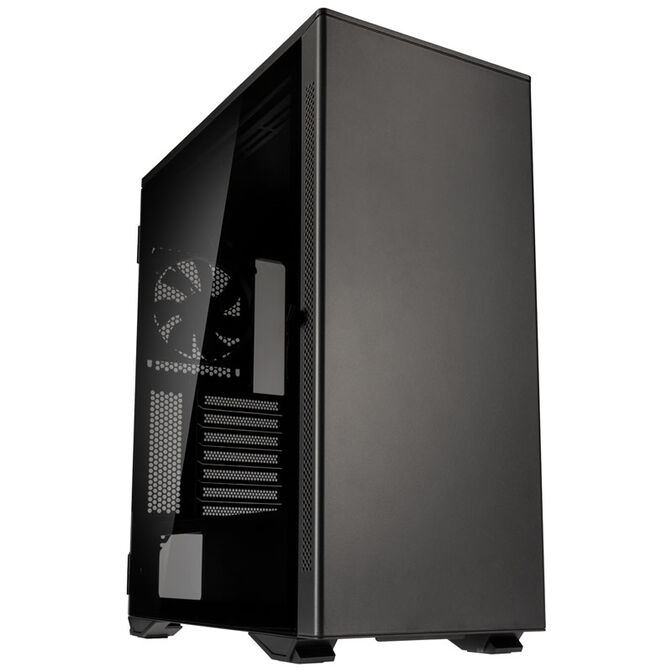

The Stronghold line-up is expanding. Introducing the Stronghold Barricade Midi-Tower Case, a natural evolution of the Stronghold Overseer. This metal chassis comes with two Kolink Classic PWM fans and the iconic hexagonal mesh design for incredible natural airflow. With its user-friendly and screwless design, installing hardware in this case is a breeze. Able to support up to an E-ATX motherboard, 330mm GPU, and 165mm CPU cooler, the Stronghold Barricade is perfect for all your premium components. >
To start, there are no limitations on motherboard size, with the Stronghold Barricade being able to support from E-ATX down to Mini-ITX. Most modern graphics cards will fit as there is space for a GPU up to 330mm long. Plus, there is clearance for a CPU cooler up to 165mm tall. Throughout the chassis are excellent cable routing opportunities to keep your build looking clean and tidy. There will be no cable clutter in a Kolink case.

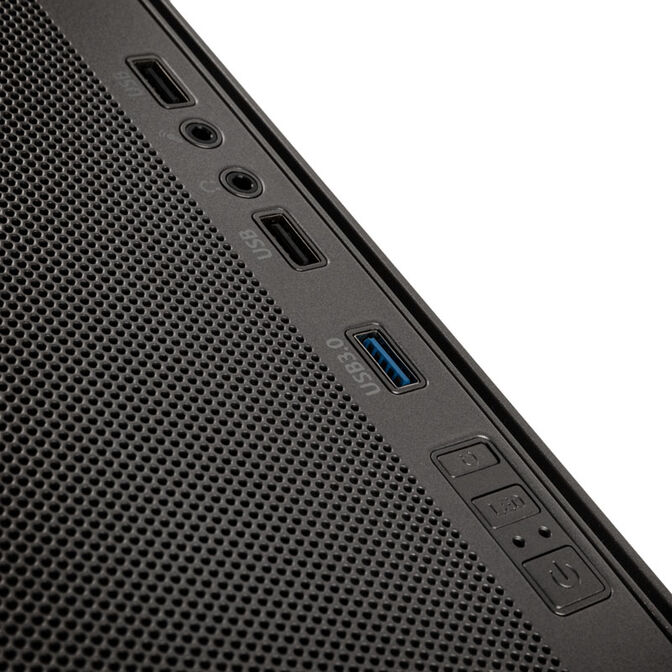

For its exterior, the Stronghold Barricade utilises metal and plastic panels finished in gunmetal grey. Completing this sleek ATX case, the I/O panel on the top of the chassis features one USB 3.1, two USB 2.0 ports, and one HD audio jack. To help with cable management and not interrupt the mesh design, these ports are placed on the side of the panel.
Dimensions: 370 mm x 216 mm x 470 mm (L x W x H)
Materials:
SPCC 0.7mm steel interior
Hinged tempered glass door
Metal and plastic
Meshed top panel
Weight: 7.2 kg
Colour: Grey
Motherboard Compatibility: E-ATX, ATX, Micro-ATX, Mini-ITX
Total fans possible:
3x 120 / 2x 140 mm (front)
2x 120 / 140 mm (top)
1x 120 mm (rear)
Pre-installed:
1x Classic 120 mm PWM (front)
1x Classic 120 mm PWM (rear)
Radiator Support:
1x 360 mm (front)
1x 240 mm (top)
1x 120 mm (rear)
Drive Bays:
2x 3.5" HDDs
2x 2.5" SSDs
PSU: 1x Standard ATX (optional)
Expansion Slots: 7
I/O-Panel:
2x USB 2.0
1x USB 3.1
HD Audio
Max GPU Length: 330 mm
Max CPU Cooler Height: 165 mm
Max PSU Length: 190 mm
The Features of Kolink Stronghold Barricade Midi-Tower Case at a Glance:
- User-friendly, screwless design featuring a steel framework with metal and glass panelling
- Supports up to an E-ATX motherboard, 330mm GPU, and 165mm CPU cooler
- Two integrated Classic PWM 120mm fans with additional brackets for more
- Hinged tempered glass panel and removeable top panel for easy building
- Ventilated panels for superior airflow and heat dissipation
- Primed to support AiO coolers up to 360mm
- Sleek and stylish gunmetal grey metal and plastic casing
User Friendly

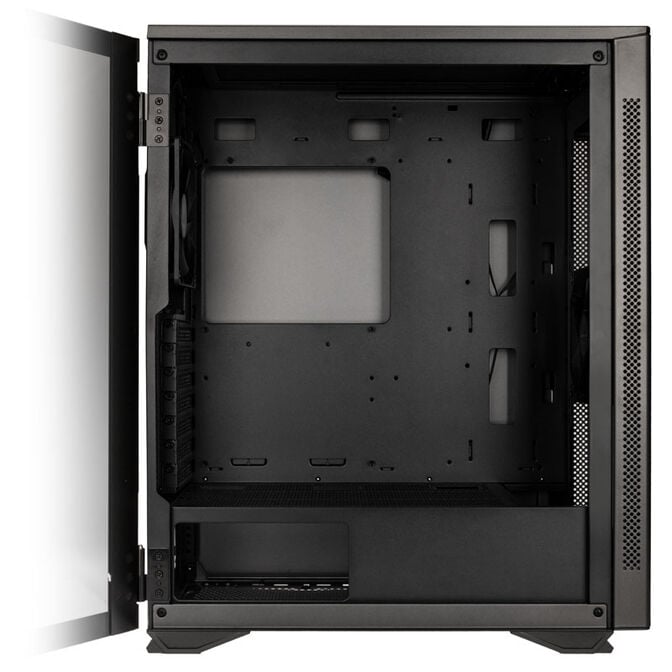

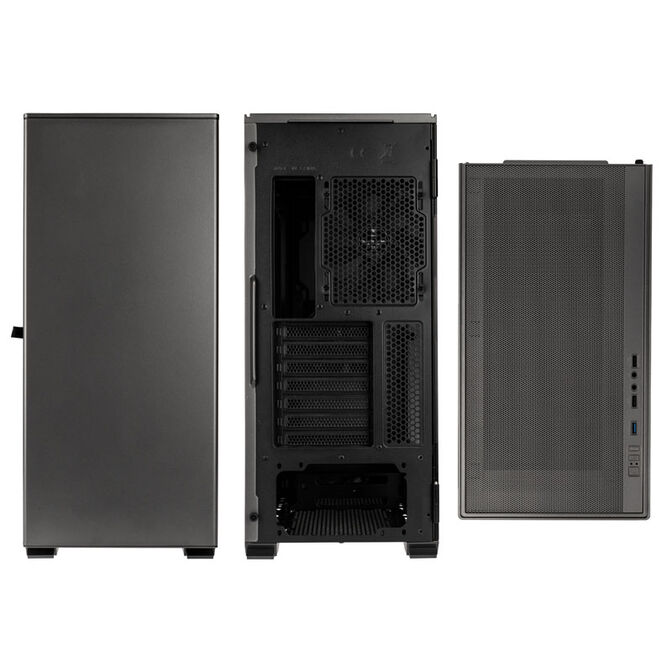

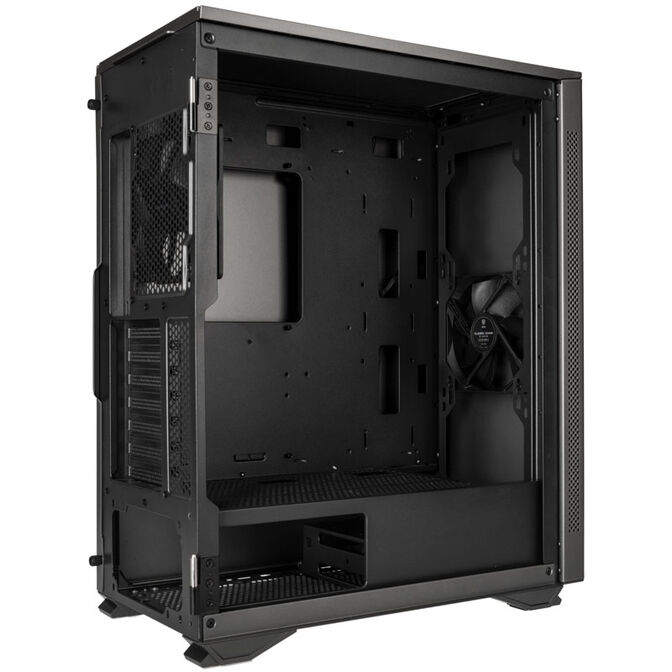

The Stronghold Barricade was constructed to have an accessible interior and provide a user-friendly experience. Utilising a screwless design, the top and side panels are removable with the tempered glass panel being hinged, granting greater access to the interior of the chassis. The tempered glass panel is easily opened utilising the magnetic pull tab. From there, this midi-tower case can support a comprehensive range of premium gaming hardware.To start, there are no limitations on motherboard size, with the Stronghold Barricade being able to support from E-ATX down to Mini-ITX. Most modern graphics cards will fit as there is space for a GPU up to 330mm long. Plus, there is clearance for a CPU cooler up to 165mm tall. Throughout the chassis are excellent cable routing opportunities to keep your build looking clean and tidy. There will be no cable clutter in a Kolink case.
Airflow and Cooling

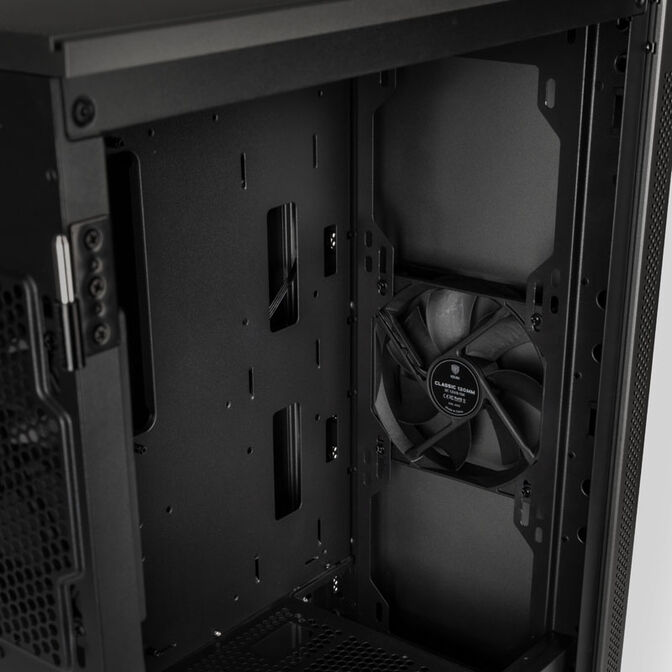

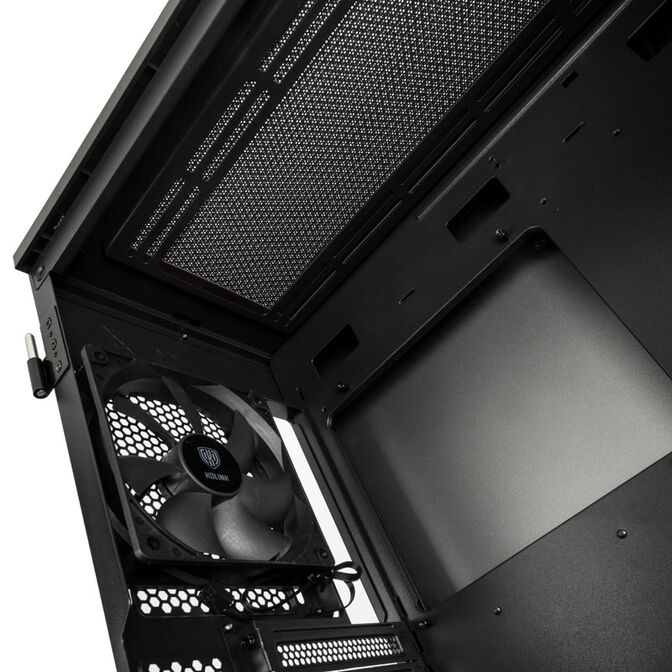

Featuring our iconic hexagonal mesh pattern across the chassis, the Stronghold Prism already boasts comprehensive airflow. This is boosted by the inclusion of two Kolink Classic PWM 120mm fans, one placed on the rear and the other centrally on the front panel. These seven bladed fans utilise a hydraulic bearing for smoother performance and long-lasting reliability. What's more, there are two additional fan brackets for you to expand this thermal solution. Enhancing the cooling potential further, the Stronghold Barricade has been primed for use with AiO coolers. There are three places to install radiators, with the option to host more than one within your AiO loop. Upon the front there is capacity for up to a 360mm radiator, whilst the top holds up to a 240mm, and the rear panel can host up to a 120mm radiator. Your hard-working components will stay at optimum temperature with the comprehensive support for cooling within this chassis.Attractive and Desirable

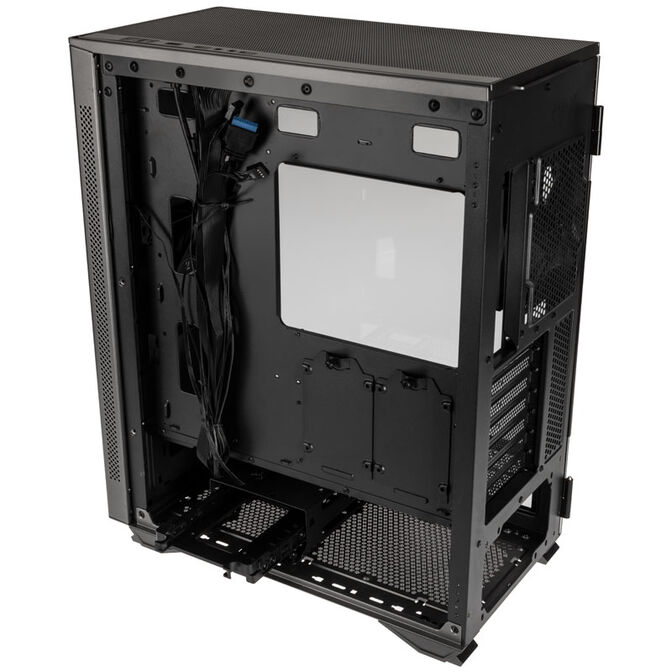

To power your gaming PC, the Stronghold Barricade accommodates a power supply up to 190mm long, held within a vented PSU shroud. Next to this compartment is the drive bay, which can host two 2.5" SSDs and either two 3.5" or 2.5" HDDs. With this flexibility, you can install a comprehensive storage solution that strikes the perfect balance between capacity and speed.For its exterior, the Stronghold Barricade utilises metal and plastic panels finished in gunmetal grey. Completing this sleek ATX case, the I/O panel on the top of the chassis features one USB 3.1, two USB 2.0 ports, and one HD audio jack. To help with cable management and not interrupt the mesh design, these ports are placed on the side of the panel.
Technical Details:
SPCC 0.7mm steel interior
Hinged tempered glass door
Metal and plastic
Meshed top panel
3x 120 / 2x 140 mm (front)
2x 120 / 140 mm (top)
1x 120 mm (rear)
1x Classic 120 mm PWM (front)
1x Classic 120 mm PWM (rear)
1x 360 mm (front)
1x 240 mm (top)
1x 120 mm (rear)
2x 3.5" HDDs
2x 2.5" SSDs
2x USB 2.0
1x USB 3.1
HD Audio
|
Colour
|
|
|
Primary Colour
|
Grey
|
|
Secondary Colour
|
Black
|
|
Fan Main Colour (Frame)
|
Black
|
|
Fan Main Colour (Rotor)
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
370 mm
|
|
Width
|
216 mm
|
|
Height
|
470 mm
|
|
Weight
|
7.2 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
165 mm
|
|
Max. GPU Length
|
330 mm
|
|
Max. PSU Length / Depth
|
190 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (2x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
6
|
|
120 mm fans
|
6
|
|
140 mm fans
|
4
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Dual (240 mm), 1x Single (120 mm), 1x Triple (360 mm)
|
|
Radiator/AIO Support (Front)
|
360mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Radiator/AIO Support (Top)
|
240mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
2
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
2
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
2
|
|
3.5 inch external drive bay
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type A Ports Total
|
3
|
|
USB 3.0 (external) Type A
|
1
|
|
USB 2.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
|
|
Case Features
|
|
|
I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Mesh, Metal, Plastic, Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Fan / RGB control
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
2x 120 mm
|
