The

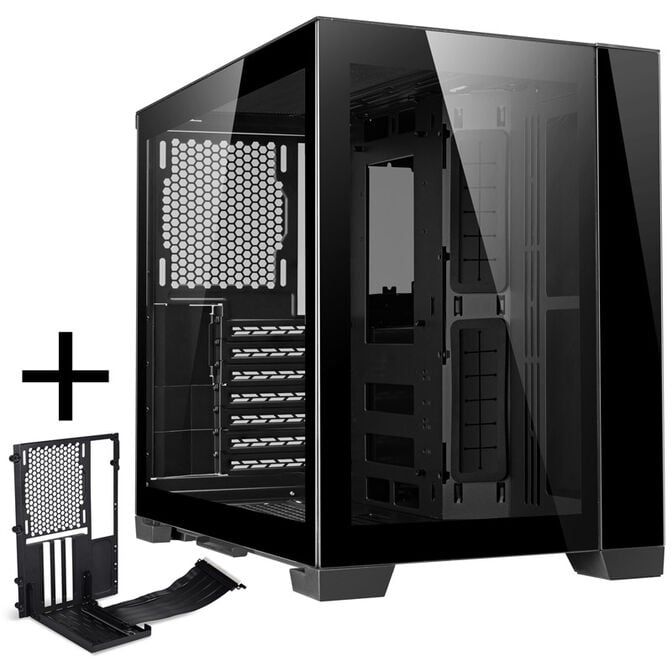

Lian Li O11 Dynamic Mini, developed with Roman "der8auer" Hartung, is not only a smaller but also an extremely versatile variant of the popular O11 Dynamic. This bundle includes a matching PCI bracket with a Riser PCIe 4.0 card for the vertical installation of the GPU. Thanks to the interchangeable back panel, the size of the motherboard tray, the number of expansion slots, and the radiator options can be changed. The power supply, drives, and cables are housed in the second chamber.
Features of the Lian Li O11 Dynamic Mini Midi-Tower at a glance:
- Extremely versatile case with modular back panel
- Space for motherboards in ATX, Micro-ATX, or Mini-ITX form factors
- Front and side panels made of tempered glass
- Top and right side made of aluminium
- I/O panel with one USB-C and two USB 3.0 ports
- Graphics cards up to 395 mm in length
- Three installation slots for large radiators
- Up to nine 120 mm fans possible
- Suitable for SFX and SFX-L power supplies
- Includes three different pump mounts

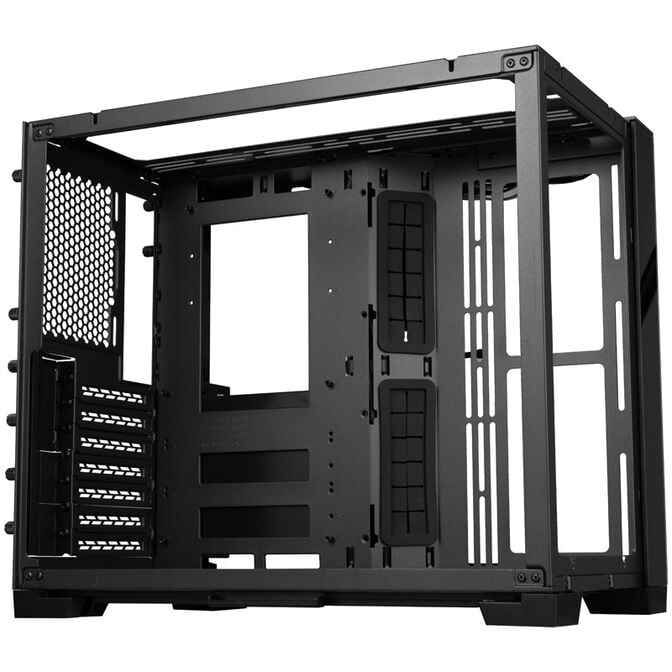

O11 Dynamic Mini: Modular case with stylish design

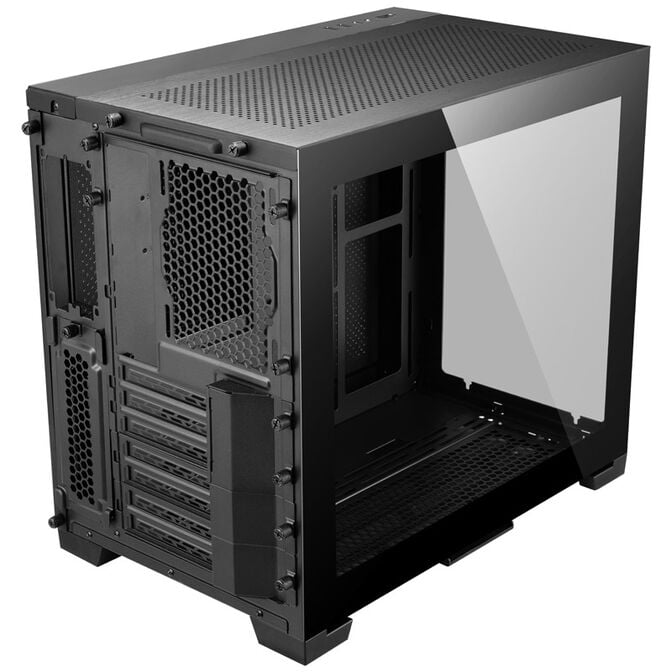

The Lian Li O11 Dynamic Mini is extremely versatile thanks to its modular back panel. The case includes various modules that can modify the rear side. This has a significant impact on the choice of components. The smaller the motherboard, the more space is freed up for other components.
7 Slots

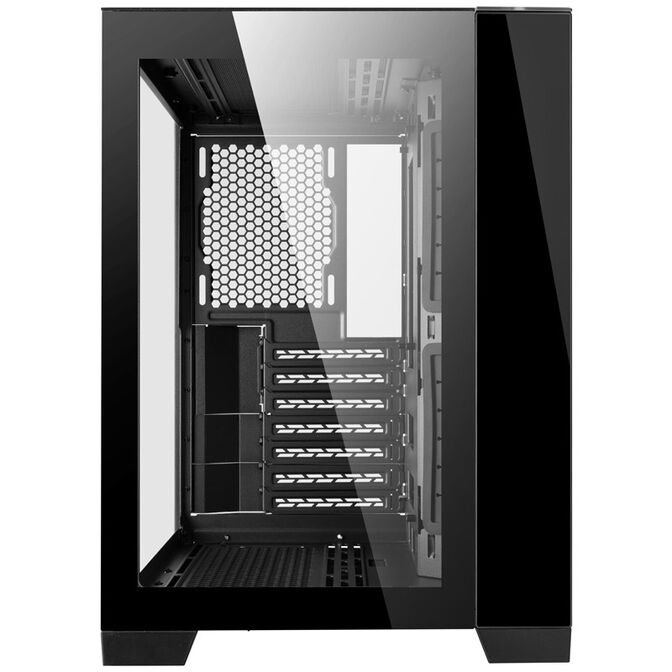

The back panel with seven expansion slots is suitable for installing ATX motherboards. Only fans can be mounted on the top. Radiators fit to the right of the motherboard and at the bottom of the case.
- Motherboards: ATX, Micro-ATX, Mini-ITX
- Expansion slots: 7
- Top: Only fans (up to 25 mm)
- Side: 280 mm radiator up to 65 mm or 240 mm radiator up to 85 mm
- Bottom (ATX): max. 360 mm radiator or 120 mm fan
- Bottom (Micro-ATX/Mini-ITX): max. 360 mm/280 mm radiator or 140 mm fan
5 Slots
The back panel with five expansion slots is suitable for installing Micro-ATX motherboards. These are now positioned lower, allowing for a radiator to be mounted on the top as well.
- Motherboards: Micro-ATX, Mini-ITX
- Expansion slots: 5
- Top: max. 360 mm or 280 mm radiator (up to 65 mm)
- Side: 280 mm radiator up to 65 mm or 240 mm radiator up to 85 mm
- Bottom (Micro-ATX): max. 360 mm radiator or 120 mm fan
- Bottom (Mini-ITX): max. 360 mm or 280 mm radiator or 140 mm fan
3 Slots
The back panel with three expansion slots offers free choice for the graphics card and is suitable for installing Mini-ITX motherboards. There is plenty of space above and below for radiators.
- Motherboards: Mini-ITX
- Expansion slots: 3
- Top: max. 360 mm or 280 mm radiator (up to 100 mm)
- Side: 280 mm radiator up to 65 mm or 240 mm radiator up to 85 mm
- Bottom: max. 360 mm/280 mm radiator or 140 mm fan (up to 75 mm)

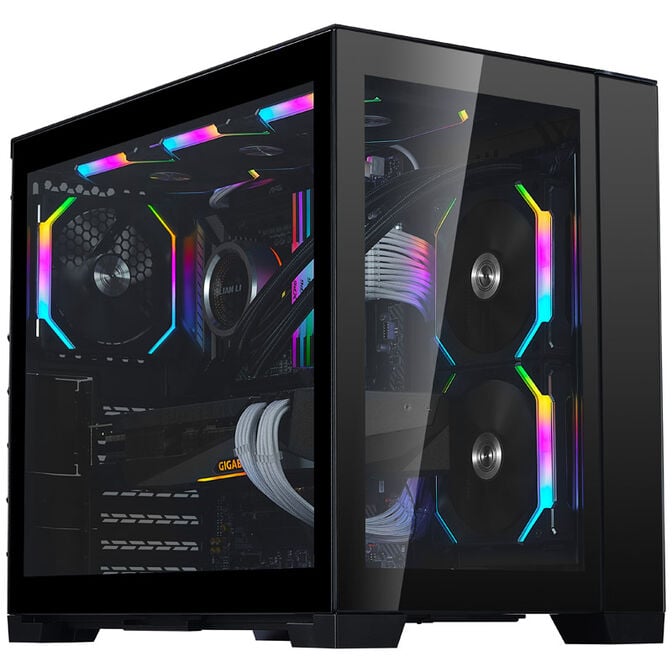

Space for a powerful gaming system
A 120 mm fan can be placed at the back. The bottom, top, and side air inlets are equipped with magnetic dust filters, keeping the case clean. The Lian Li O11 Dynamic Mini is suitable in every variant for up to 170 mm high CPU coolers, meaning there are practically no limits when selecting a powerful CPU cooler. Additionally, with a generous 395 mm, extremely large graphics cards can also be installed.
Hard drives and SSDs

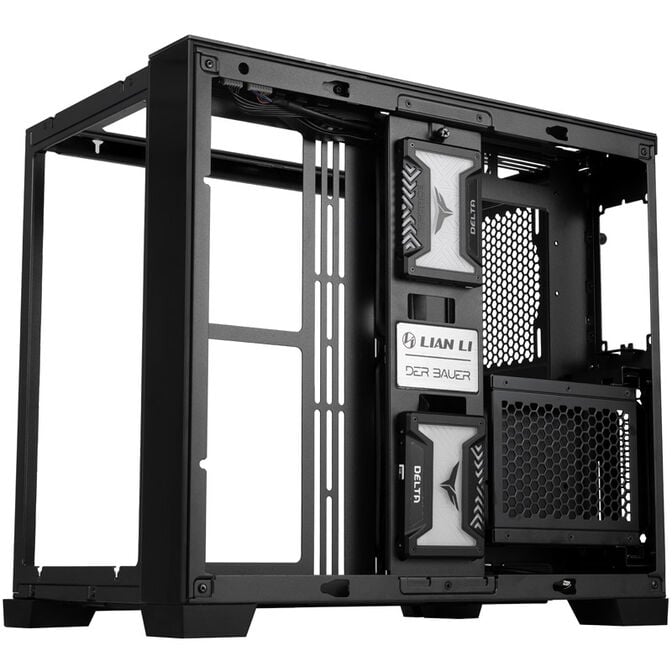

The power supply and drives are housed in the right chamber of the O11 Dynamic Mini. It supports power supplies in SFX and SFX-L format. Furthermore, the case offers space for a total of four drives:
- 2x 3.5/2.5 inch and 2x 2.5 inch
Design, material, and connections
The

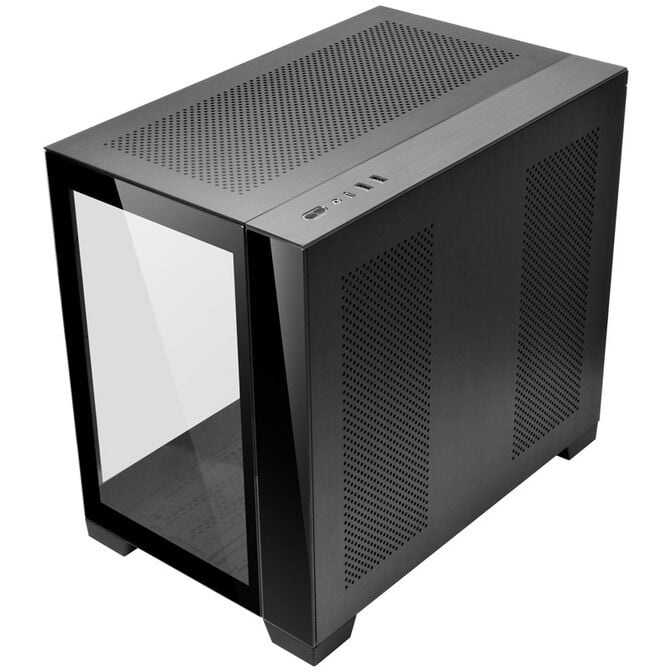

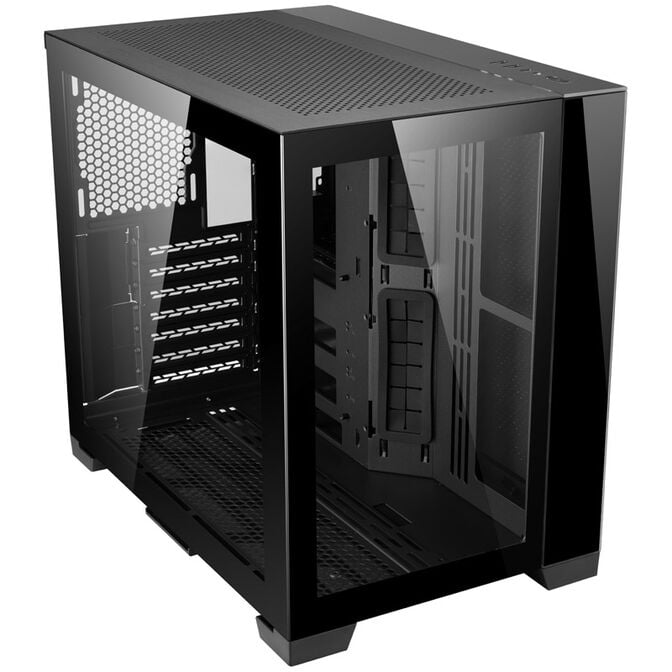

Lian Li O11 Dynamic Mini features the distinctive, stylish design that makes the O11 series so popular. It is made of a sturdy steel frame. The top and right side panel are made of aluminium with a black powder coating. The left side panel and the front are made of 4 mm thick, tinted tempered glass, allowing a view of the installed hardware. A silver decorative strip made of aluminium adorns the right side of the case front. Connections and controls are conveniently located on the top of the Lian Li O11 Dynamic Mini:
- 2x USB 3.0 Type A
- 1x USB 3.1 Type C
- 1x combined 3.5 mm jack (4-pole, TRRS)
- Power button with integrated HDD LED

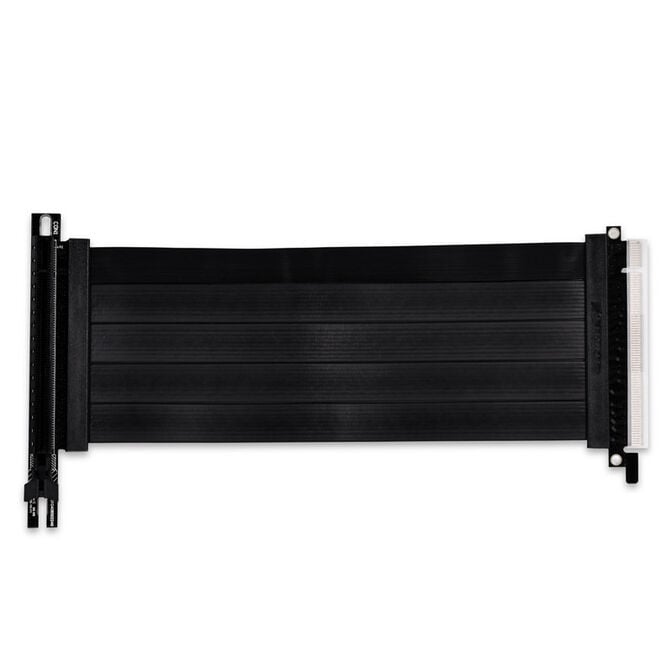

Perfect with matching bracket for vertical installation

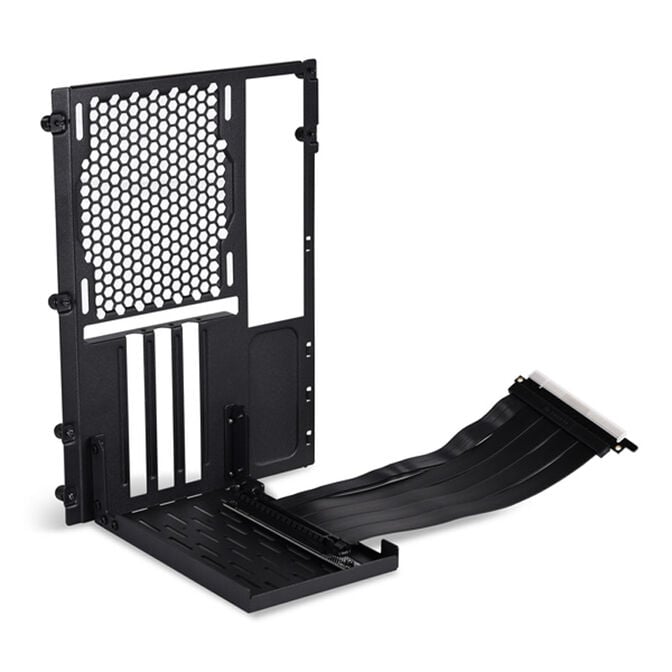

With this conversion kit, consisting of a riser cable and a PCI slot cover, a graphics card can be installed vertically in the Lian Li O11 Dynamic Mini Midi-Tower. For this, the slot covers of the modular back of the Lian Li O11 Dynamic Mini are removed and replaced with the slot covers included in the kit. The riser cable supports PCIe 4.0.
Technical details:
Lian Li O11 Dynamic Mini
- Dimensions: 269.5 x 380 x 420 mm (W x H x D)
- Material: Steel (interior), Aluminium, tempered glass
- Weight: 8.5 kg
- Colour: Black, Silver
- Form factor: ATX, Micro-ATX, Mini-ITX
- Total fans possible:
3x 120 / 2x 140 mm (top)
2x 120 / 2x 140 mm (side)
3x 120 / 2x 140 mm (bottom)
1x 120 mm (back)
- Radiator mountings:
1x max. 360 / 280 mm (top)
1x max. 240 / 280 mm (side)
1x max. 360 / 280 mm (bottom)
- Filters: Bottom, top, side panel
- Drive bays:
2x 3.5/2.5 inch (internal)
2x 2.5 inch (internal)
- Power supply: 1x SFX/SFX-L (optional)
- Expansion slots: 7 / 5 / 3 (depending on the back panel)
- I/O panel:
1x USB 3.1 Type-C (internal connection)
2x USB 3.0 Type-A (internal connection)
1x 3.5 mm jack (4-pole, TRRS)
Power switch
- Maximum graphics card length: 395 mm
- Maximum CPU cooler height: 170 mm
Technical details:
Li O11D Mini-1W-4 Mini Riser Card + PCI Slot Cover
- Connections:
Connector: PCIe with 16 lanes
Socket: PCIe with 16 lanes
- Cable length: 200 mm
- Colour: Black (slot cover), Black (cable)
- Dimensions: 191.5 x 272.5 x 180 mm (W x H x D)
- Expansion slots: 3
- Supported PCI Express standards: 1.x, 2.x, 3.0, 4.0
- Compatible cases: Lian Li O11 Dynamic Mini in black or white, Lian Li O11 Dynamic Mini Snow Edition
