- Seamless cable management with ATX motherboards and back-connect
- Optimal cooling with up to 11 x 120 mm fans and a 360 mm radiator
- Rotatable design allows placement of the case on the left or right of the setup
- Elegant aRGB lighting compatible with common motherboards
- Space for GPUs up to 420 mm long with vertical mounting option

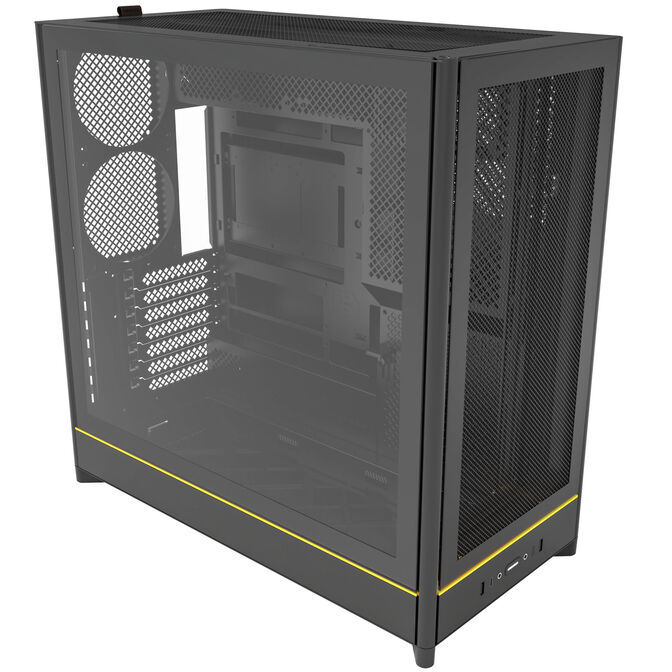

The Montech HS01 PC Case: Discreet RGB Lighting with Mature Mounting Options
The Montech HS01 Midi Tower is a discreet PC case that impresses with its stylish aRGB lighting and particularly versatile mounting options. With the necessary cutouts for back-connect motherboards such as those from the Project Zero series by MSI or the BTF series by ASUS, the case enables a build with almost invisible cables. By hiding the cables at the back, you even save time and nerves.
Optimal Cooling with Many Fans and Large Radiators
Eleven 120 mm fans and multiple installable radiators ensure optimal cooling of your hardware in the Montech HS01. Whether custom loop, 360 mm AiO or conventional air cooler - with this case, you can design your cooling circuit freely according to your wishes.
Elegant Lighting and Rotatable Design

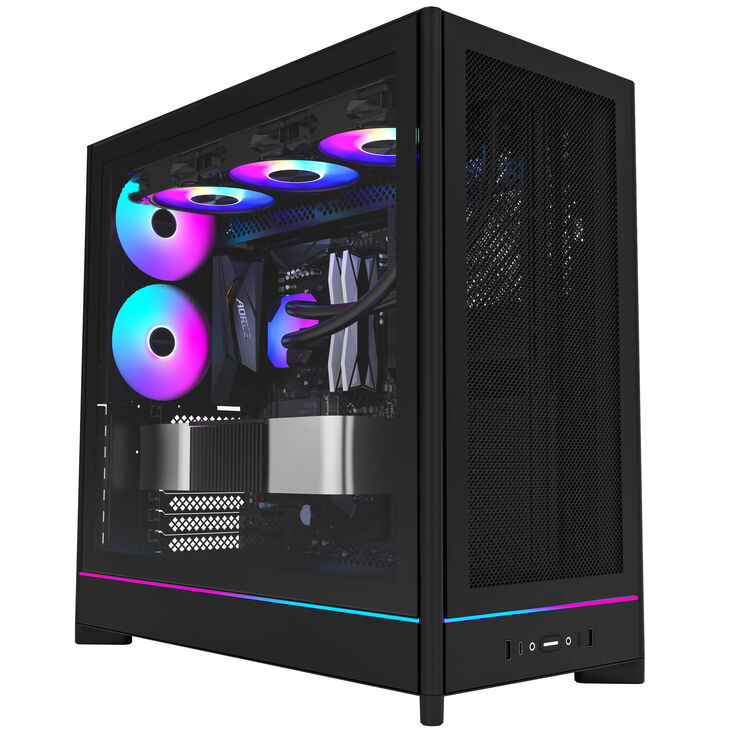

With integrated and compatible aRGB lighting for common motherboards, the case stands out in your setup. The illuminated strip runs from the front across the entire side, enhancing your setup with colourful lighting, whether normally or upside down.

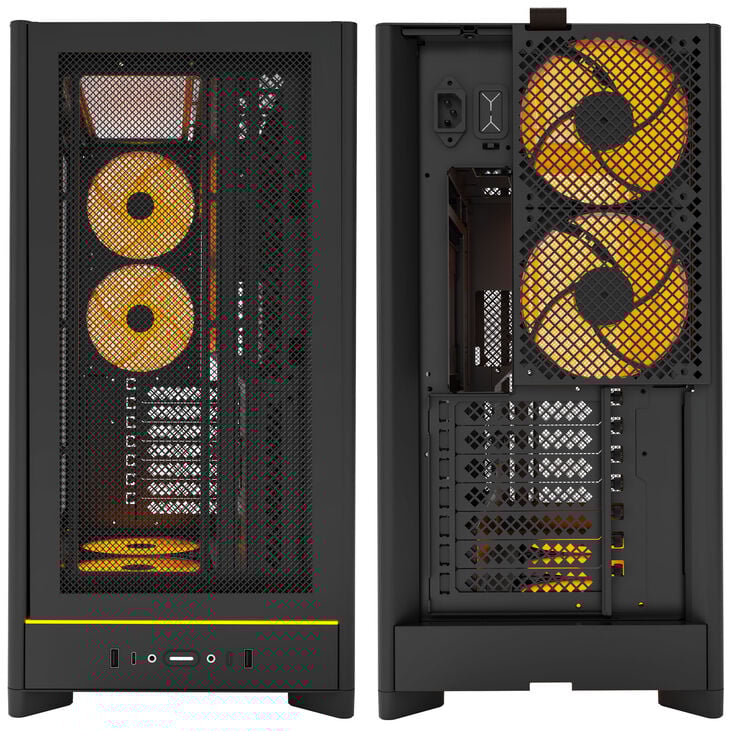

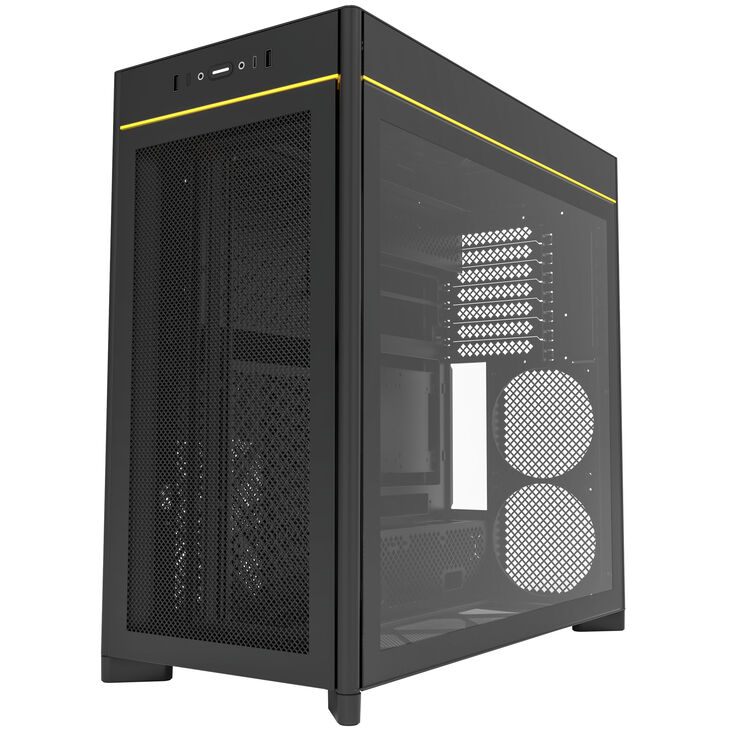

Due to the tower's design, positioning your build normally or upside down is possible. This also allows for the placement of your computer to the left of your setup without exposing the back of the case. This is facilitated, among other things, by the power supply being installed at the top right, simplifying the connection of your motherboard via back-connect.
Ample Space for Powerful Hardware
Thanks to the spacious interior of the Montech HS01, even particularly powerful high-end builds find their place in this case. With a maximum graphics card length of 420 mm, modern high-end GPUs with triple-slot designs fit comfortably into this case. With the variety of fans providing ample airflow, your graphics card will always be optimally supplied with fresh air.
You can even decide whether to mount the graphics card vertically or conventionally horizontally. For vertical mounting, no additional accessories such as a bracket are required. Besides a sufficiently long PCIe riser cable, you only need some time and a screwdriver to install your graphics card in the desired orientation.
Practical Front I/O and Storage Options
The practical front I/O of the Montech HS01 consists of two USB 3.0 Type-A ports, one USB Type-C port, and two audio jacks for a microphone and headphones, respectively. In terms of storage, the Montech case also does not cut corners. Two 3.5-inch hard drives can be accommodated along with four 2.5-inch hard drives, providing a maximum storage capacity for your build.
Colour
|
|
Primary Colour
|
Black
|
Dimensions
|
|
Length / Depth
|
480 mm
|
Width
|
240 mm
|
Height
|
480 mm
|
Weight
|
5 kg
|
Case
|
|
Case Type
|
Mid Tower
|
Motherboard Support
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
Max. Motherboard Format
|
ATX
|
Internal Dimensions
|
|
Max. CPU Cooler Height
|
175 mm
|
Max. GPU Length
|
420 mm
|
Max. PSU Length / Depth
|
200 mm
|
Inner Volume
|
55 l
|
Display
|
|
Display Included
|
No
|
Power Supply
|
|
PSU included
|
No
|
PSU Format
|
ATX, SFX
|
Power Supply Position
|
front, top
|
Fan Support
|
|
Max. Number of Fans
|
11
|
120 mm fans
|
11
|
140 mm fans
|
2
|
Radiator Support
|
|
Max. Radiator Compatibility
|
1x Dual (240 mm), 1x Single (120 mm), 1x Triple (360 mm)
|
Drive Bays
|
|
Max. 2.5 Inch Drives
|
4
|
Max. 3.5 Inch Drives
|
2
|
Max. 5.25 Inch Drives
|
0
|
Hot swap drive bays
|
No
|
External Ports
|
|
USB 3.1 (external) Type C
|
1
|
USB 3.0 (external) Type A
|
2
|
Audio outputs & inputs
|
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
|
Card reader
|
No
|
Case Features
|
|
I/O position
|
Front
|
Side panel
|
with window
|
Vertical GPU Mount
|
Yes
|
Adjustable Vertical GPU Bracket
|
Yes
|
Riser Cable Included
|
No
|
Front door
|
Yes
|
Cable Management
|
Yes
|
Filters Included
|
Yes
|
Noise dampening
|
No
|
Mainboard slide / tray
|
No
|
Transport System
|
No
|
Back Connect
|
|
Back Connect
|
Yes
|
Back-Connect Compatibility
|
ASUS BTF, MSI Project Zero
|
Expansion Slots
|
|
Expansion slots / PCI slots
|
7
|
Features
|
|
Housing Feedthrough
|
No
|
Compatibility
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
Fan Header
|
|
Fan Controller / Fan Hub
|
No
|
Mounting
|
|
Case VESA Mountable
|
No
|
Internal Monitor Mount
|
No
|
Materials
|
|
Materials
|
Aluminium, Plastic, Steel, Tempered Glass
|
Lighting
|
|
Lighting / RGB
|
Yes
|
RGB Controller
|
No
|
RGB Type
|
ARGB / DRGB
|
Number of RGB Connectors
|
1
|
Lighting Colour
|
RGB
|
Lighting Compatibility
|
ASRock Polychrome Sync, ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync
|
Additional Contents
|
|
Included fans
|
None
|
