Montech Titan PLA 850W, 80 PLUS & Cybenetics Platinum, modular, PCIe 5.1 - 850 watts, white
- Powerful fully modular ATX-3.1 power supply from Montech
- 850 watts nominal power for your high-end components
- 80-PLUS and Cybernetics Platinum certification for absolute efficiency
- 1x 12VHPWR connector for high-end graphics cards
- Fan with fluid dynamic bearing
Montech Titan PLA: ATX-3.1 Power Supply for Your Gaming PC
The Montech Titan PLA provides you with more than enough power with its 850 watts nominal power to supply even the most powerful gaming hardware with sufficient electricity. In particular, the PCIe-5.1 support ensures greater safety and performance for your graphics card.
Additionally, the power supply has an 80-PLUS and Cybernetics Platinum certification. At a load of 50%, it achieves an efficiency of up to 90%. This results in less heat, less fan noise, and significantly higher reliability.
Optimal Cooling

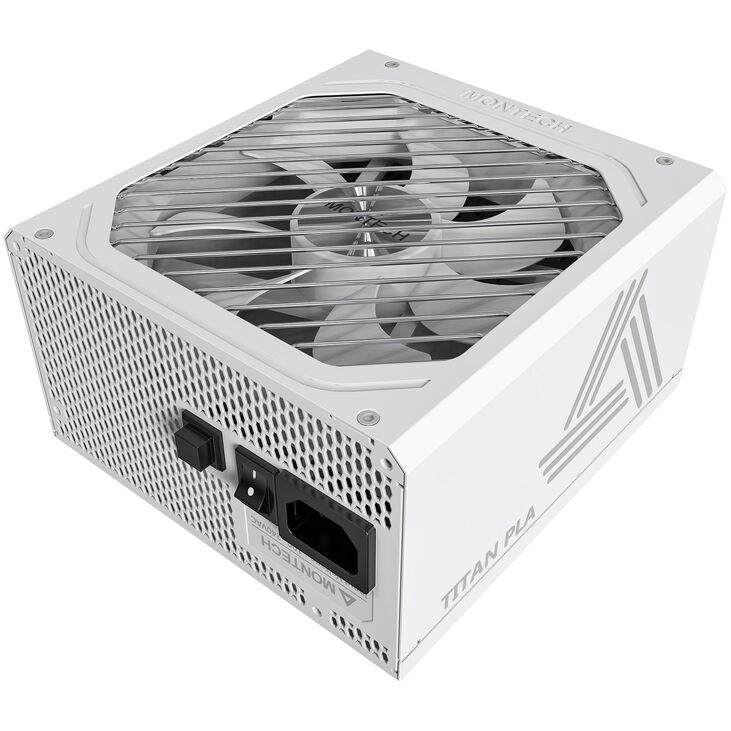

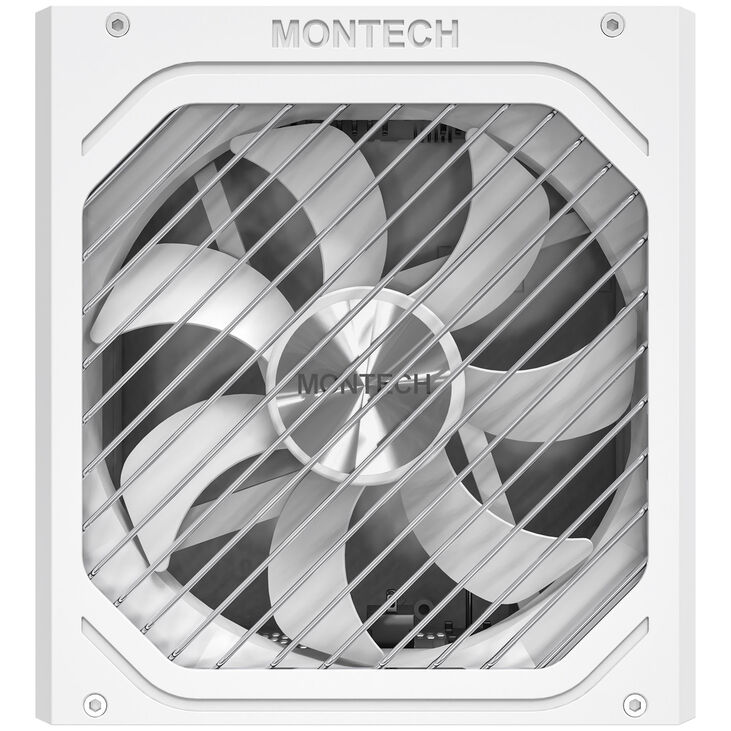

The ATX form factor allows for installation in most cases. Inside, there is a 135mm fan with a fluid dynamic bearing, which impresses with its long lifespan and low noise level.
Connection Options

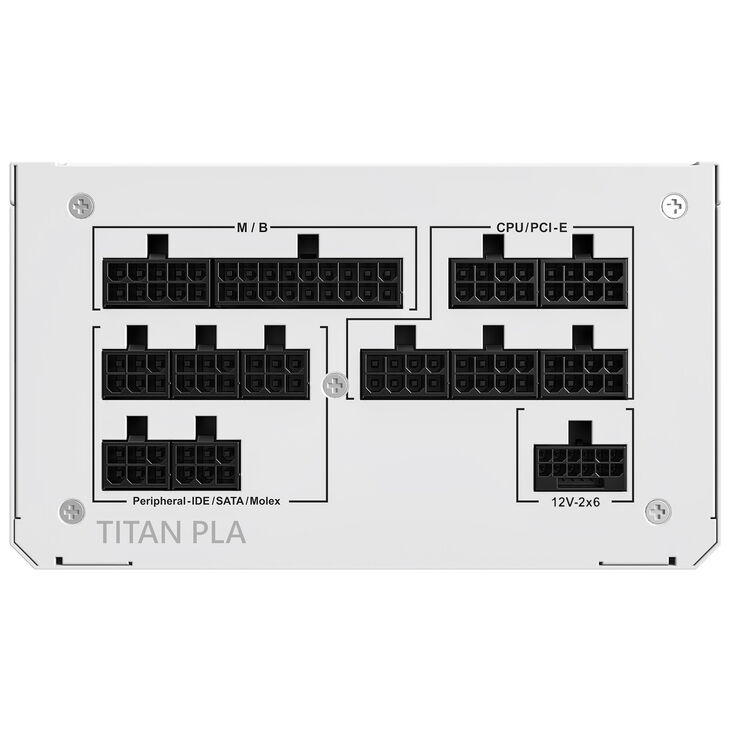

On the back of the power supply, you will find the essential connections you need for your hardware components. These include connections for powering the motherboard, CPU, and graphics card.
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
160 mm
|
|
Width
|
150 mm
|
|
Height
|
86 mm
|
|
Fan Specifications
|
|
|
Fan Size
|
135 mm
|
|
Power Supply
|
|
|
PSU Format
|
ATX
|
|
12V Distribution
|
single rail
|
|
Modular Power Supply
|
Yes
|
|
Modular Type
|
fully modular
|
|
Protection Circuits
|
OCP (Overcurrent Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OVP (Overvoltage and Undervoltage Protection), SCP (Short-Circuit Protection), UVP (Undervoltage Protection)
|
|
Power Specifications
|
|
|
Total Power Output
|
850 W
|
|
Power Output +12V rails
|
850 W
|
|
Cooling
|
|
|
Semi Passive Power Supply
|
No
|
|
Internal Ports
|
|
|
CPU Power Connectors 12V ATX/EPS
|
2
|
|
12VHPWR PCIe Power Connectors
|
1
|
|
8 Pin PCIe Power Connectors
|
|
|
6+2 Pin PCIe Power Connectors
|
2
|
|
SATA Power Connectors
|
8
|
|
4 Pin Molex Power Connectors
|
4
|
|
Efficiency Class
|
|
|
80PLUS Efficiency
|
80 PLUS Platinum
|
|
Cybenetics Efficiency Level ETA (230V)
|
PLATINUM
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
