- Stylish Midi Tower for ATX motherboards
- Mesh on top, rear side panel, and on the power supply chamber for optimized airflow
- Space for up to nine fans or up to 360mm radiators
- Includes three 120mm PWM ARGB fans
- Removable dust filters protect your hardware
- Space for graphics cards up to 420mm long
- Up to four drives (behind the motherboard tray and in the HDD cage)

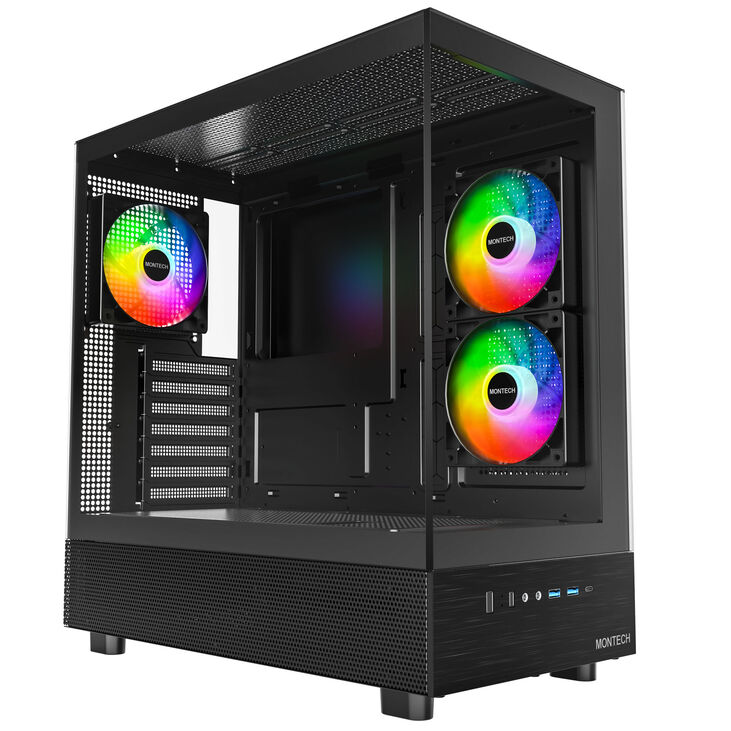

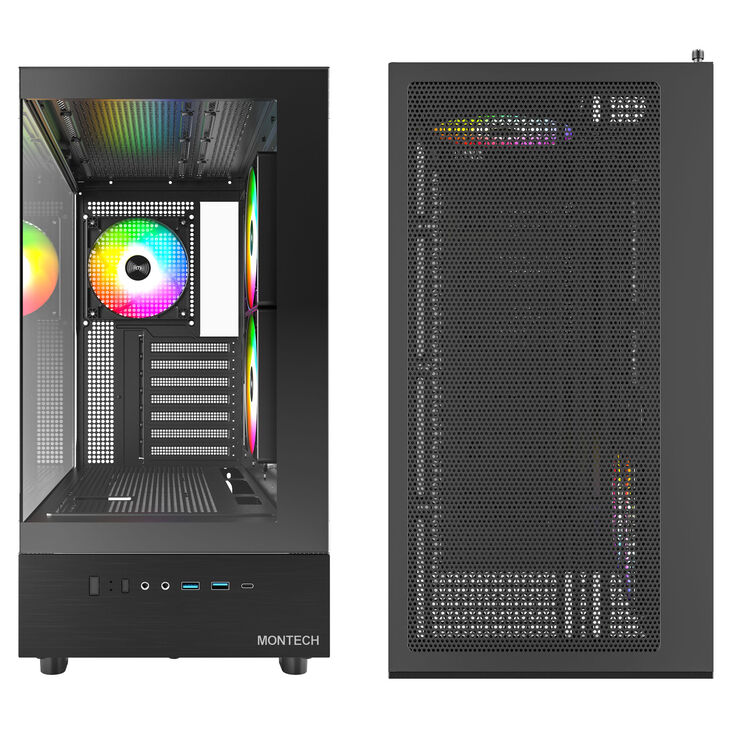

The Montech XR Midi Tower in Detail

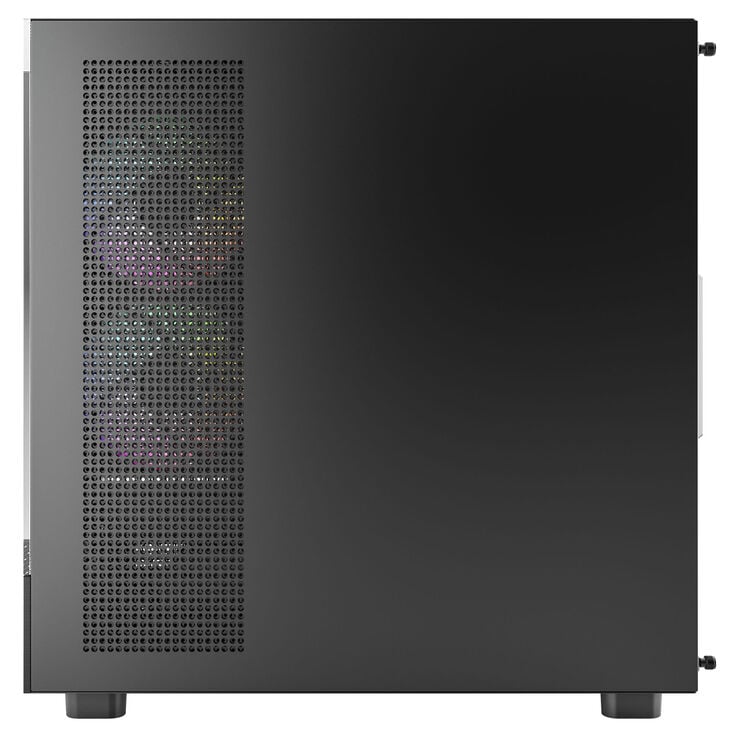

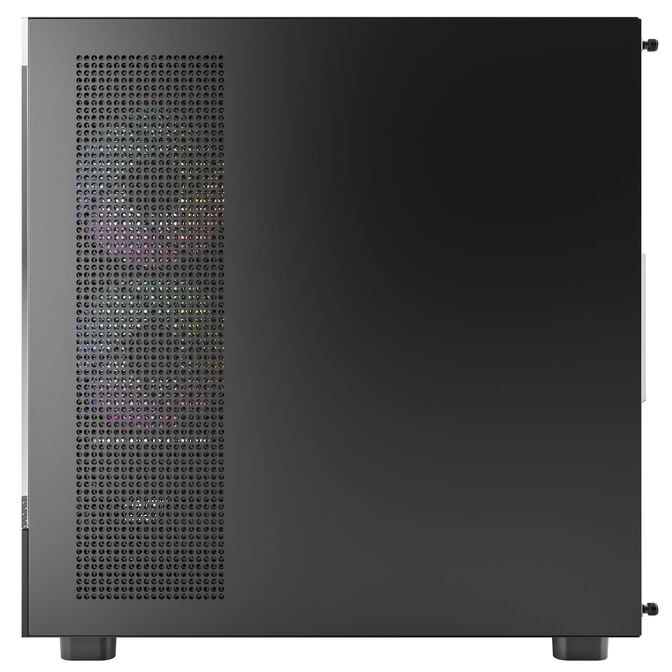

The XR from Montech is a Midi Tower with a very elegant front I/O combined with a design that resembles wood grain. It is also optimised for airflow and comes with a total of three integrated, powerful ARGB PWM fans pre-installed. With this, the manufacturer establishes the foundation for any gaming PC that focuses on cooling performance. The case is made of a sturdy steel construction, with its side panel and front made of Tempered Glass. The top, the side of the power supply chamber, and the rear side panel are equipped with a fine mesh. The high air permeability benefits the cooling of your components.
Montech XR: Elegant, compact, and robust

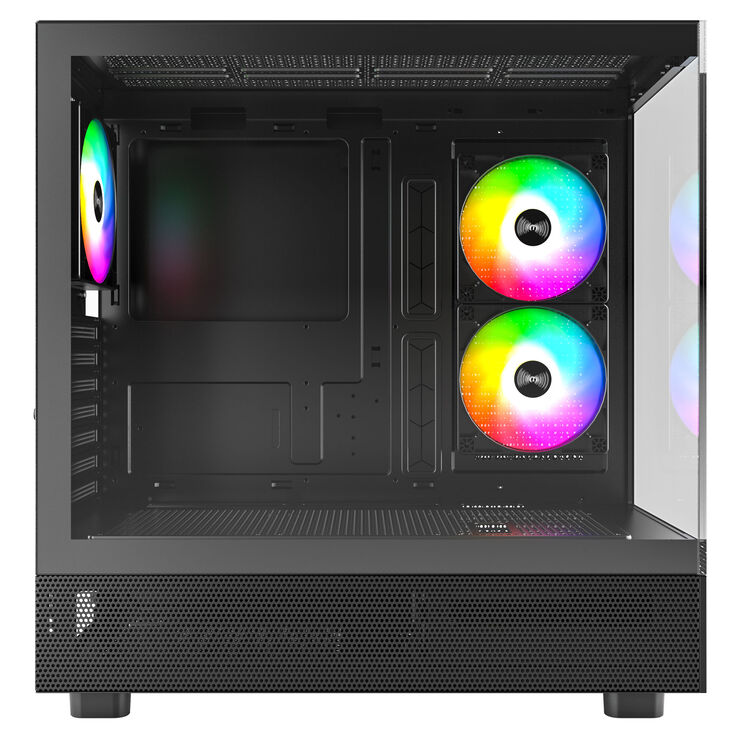

Both proponents of air cooling and water cooling enthusiasts will be satisfied with this case: The Montech XR offers options for installing a total of nine fans. Instead of the front, two strong 120mm fans are pre-installed on the side. Installation of three 120mm fans is possible on the bottom power supply cover. A 120mm fan is also pre-installed on the back. All three of the Montech fans can be controlled via PWM signal and have ARGB lighting. In the top, three 120mm or two 140mm fans can be retrofitted. The height of the CPU cooler is limited to a maximum of 175mm.
Ample Space for Radiators
Montech has also catered to fans of AiOs or custom water cooling. Up to 240mm radiators can be mounted on the side. There is space for a radiator up to 360mm on the top. Thanks to the generous mesh areas, plenty of air flows in and out of the case. Additional dust filters are installed on the side and bottom to ensure the effectiveness of your cooling system and to simplify cleaning your fans. You can easily remove, clean, and re-install them.
Space for Drives and Well-Equipped I/O Panel

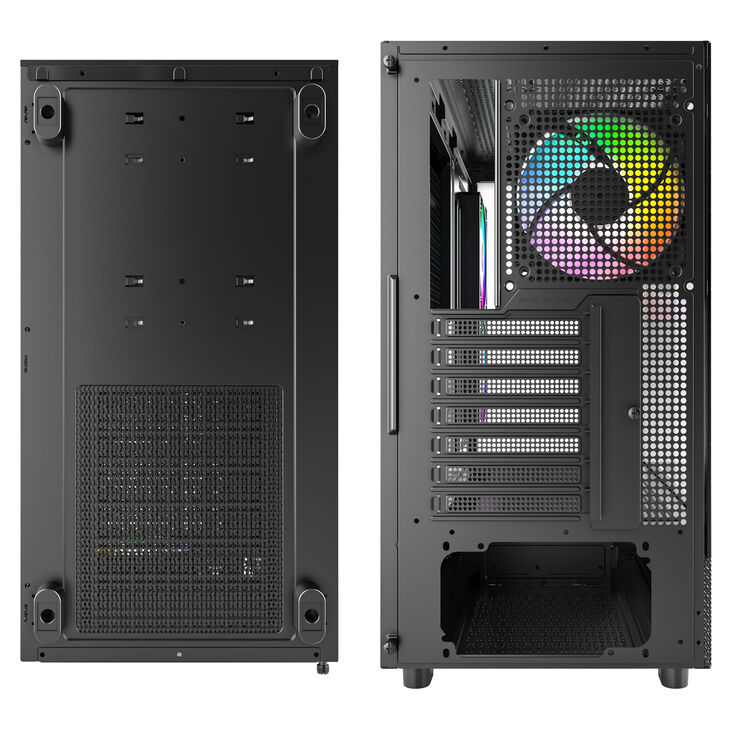

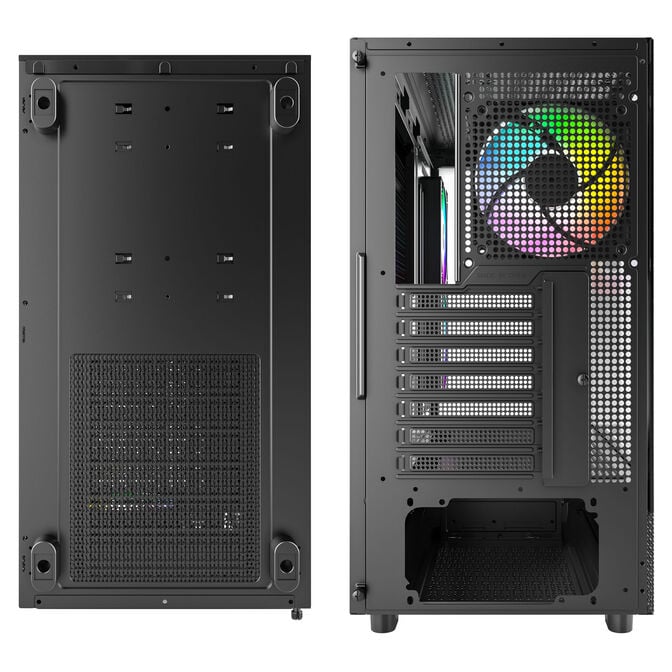

The interior offers exceptionally ample space for powerful hardware, for example, for ATX motherboards and high-performance gaming graphics cards up to 420mm in length. With Montech's optional PCI bracket, the graphics card can also be installed vertically. Two 2.5-inch SSDs can be secured in the corresponding brackets on the back of the motherboard tray.
Under the power supply cover of the Montech XR, there is a drive cage for two 3.5-inch hard drives. Behind that, an ATX power supply up to 230mm in length can fit. The I/O panel of the SKY TWO offers two USB 3.0 Type-A ports, a USB-C port, one 3.5mm headphone jack for headphones and microphone, and a Reset button.
Technical Details:
- Dimensions: 230 x 450 x 435 mm (W x H x D)
- Material: Steel (Chassis), Tempered Glass (Front, left side panel), Mesh (Inserts)
- Colour: Black
- Form Factor: ATX, Micro-ATX, Mini-ITX
- Total Fan Support:
Side: 2x 120 mm
Top: 3x 120 / 2x 140 mm
Rear: 1x 120 mm
PSU Cover: 3x 120 mm - Pre-Installed Fans:
Side: 2x 120 mm, ARGB, PWM
Rear: 1x 120 mm, ARGB, PWM - RPM: 700 - 1500 RPM
- Radiator Mountings:
Side: 1x max. 240 mm
Top: 1x max. 120 / 140 / 240 / 360 mm
Rear: 1x 120 mm - Filters: Side, Bottom (removable)
- Drive Bays:
2x 2.5 Inch (MB Tray)
2x 3.5 Inch (Drive Cage) - PSU: 1x Standard ATX (optional)
- Expansion Slots: 7
- I/O Panel:
2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x USB-C
2x 3.5 mm Jack (3-pole, 1x Audio-In / 1x Audio-Out) 1x Reset Button - Maximum GPU Length: 420 mm
- Maximum CPU Cooler Height: 175 mm
- Maximum PSU Length: 230 mm
Colour
|
|
Primary Colour
|
Black
|
Fan Main Colour (Frame)
|
Black
|
Fan Main Colour (Rotor)
|
Black
|
Dimensions
|
|
Length / Depth
|
435 mm
|
Width
|
230 mm
|
Height
|
450 mm
|
Display
|
|
Display Included
|
No
|
Case
|
|
Case Type
|
Mid Tower
|
Motherboard Support
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
Max. Motherboard Format
|
ATX
|
Internal Dimensions
|
|
Max. CPU Cooler Height
|
175 mm
|
Max. GPU Length
|
420 mm
|
Max. PSU Length / Depth
|
230 mm
|
Power Supply
|
|
PSU included
|
No
|
PSU Format
|
ATX
|
Power Supply Position
|
rear bottom
|
Fan Support
|
|
120 mm fans
|
9
|
140 mm fans
|
3
|
Radiator Support
|
|
Max. Radiator Compatibility
|
1x Triple (360 mm)
|
Drive Bays
|
|
2.5 inch internal drive bay
|
2
|
3.5 inch internal drive bay
|
2
|
Hot swap drive bays
|
No
|
External Ports
|
|
USB 3.1 (external) Type C
|
1
|
USB 3.0 (external) Type A
|
2
|
Audio outputs & inputs
|
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
|
Card reader
|
No
|
Case Features
|
|
I/O position
|
Front
|
Side panel
|
with window
|
Front door
|
No
|
Cable Management
|
Yes
|
Filters Included
|
Yes
|
Noise dampening
|
No
|
Mainboard slide / tray
|
No
|
Remote included
|
No
|
Transport System
|
No
|
Back Connect
|
|
Back Connect
|
No
|
Expansion Slots
|
|
Expansion slots / PCI slots
|
7
|
Features
|
|
Housing Feedthrough
|
No
|
Materials
|
|
Materials
|
Mesh, Steel, Tempered Glass
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Fan / RGB control
|
Yes
|
Lighting Colour
|
RGB
|
Additional Contents
|
|
Included fans
|
3x 120 mm
|
