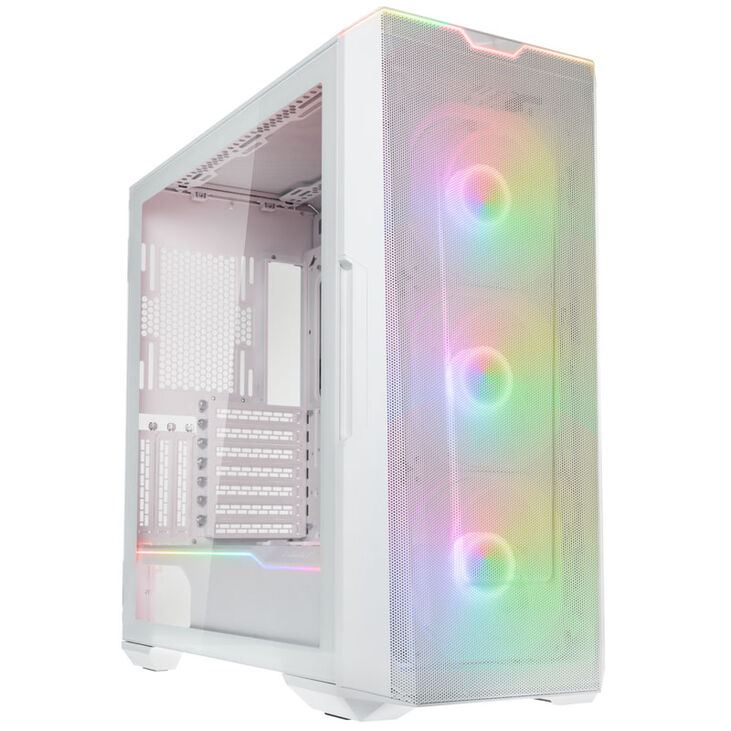

- Mid-tower with three integrated 140 mm ARGB PWM fans
- Tempered glass side panel
- Front panel with mesh for best airflow
- Up to 7 fans in total for optimal cooling
- Up to 360 mm radiators in front or lid
- Graphics cards up to 435 mm in length
- Maximum CPU cooler height of 185 mm
- RGB lighting with integrated controller

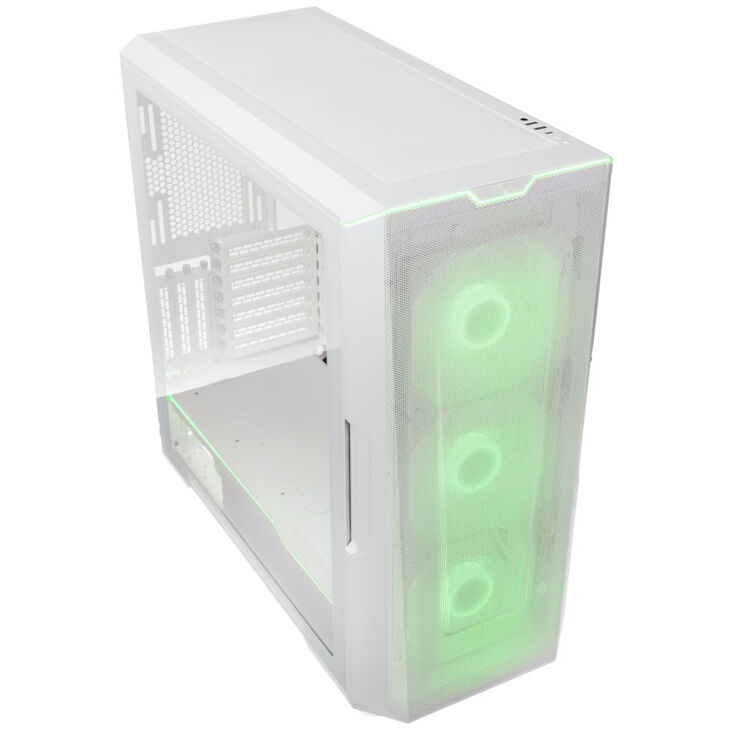

Mid-tower with optimised cooling and RGB lighting
With the
PHANTEKS Eclipse G500A, you don't have to compromise when it comes to cooling your components. It is
equipped with a mesh front and well-prepared for airflow thanks to the
three pre-installed 140 mm ARGB PWM fans.
The side panel is made of tempered glass and showcases the installed components. With the integrated ARGB lighting and the included controller, you can give your system that certain extra style by letting it shine in your desired colour.
Excellent airflow for your System

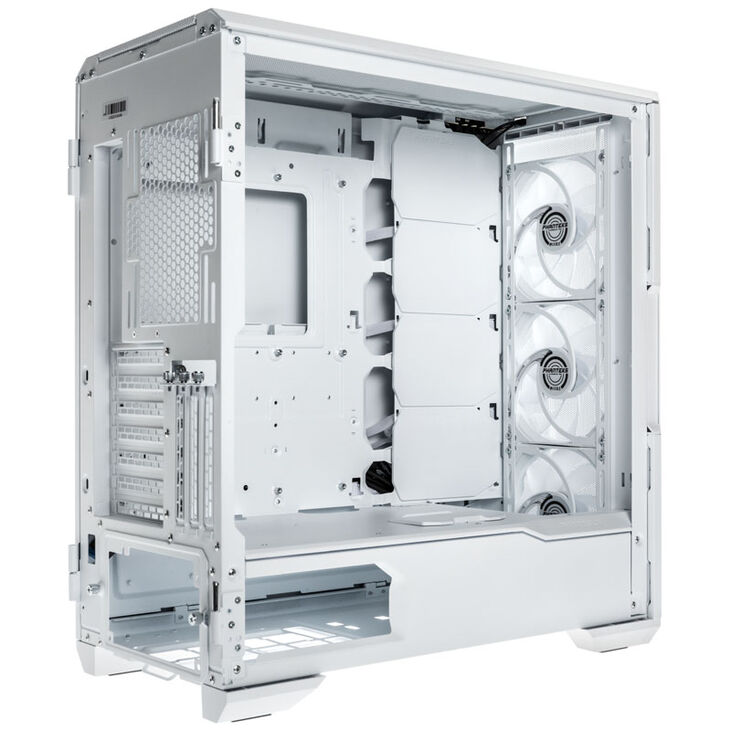

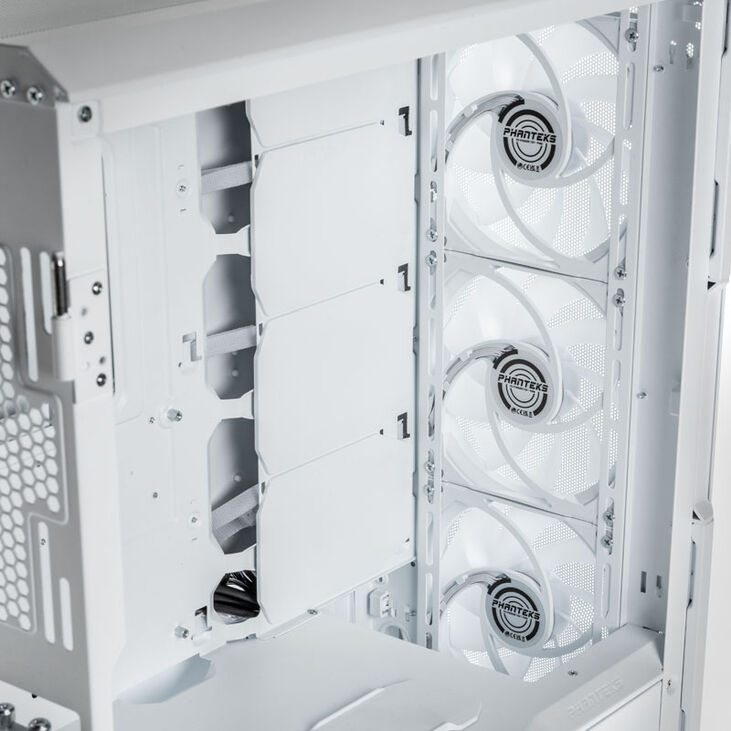

The G500A is kept open and designed for unrestricted airflow. The front is made of mesh and thus ensures good airflow. Three integrated 140 mm ARGB PWM fans at the front provide a good supply of fresh air for your components.
In addition, you have the option of accommodating a total of seven 120 mm or 140 mm fans in the Eclipse G500A to ensure good cooling throughout. The front offers space for three fans, the lid allows for three more and the rear offers space for one fan.
Water cooling capabilities
If you are planning to equip your system with water cooling, then the Eclipse G500A is the perfect choice. You can install a 360 mm radiator in the front or in the lid. There is also room for a 420 mm radiator in the front. The rear offers room for a 120 mm radiator, for example if you want to use a small AiO water cooling system to cool your CPU.

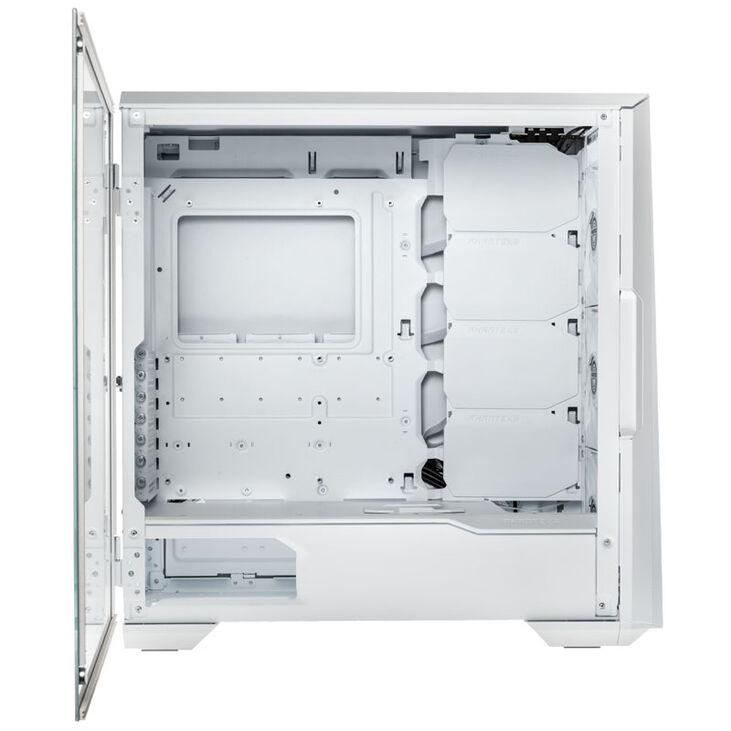

Plenty of space for your hardware

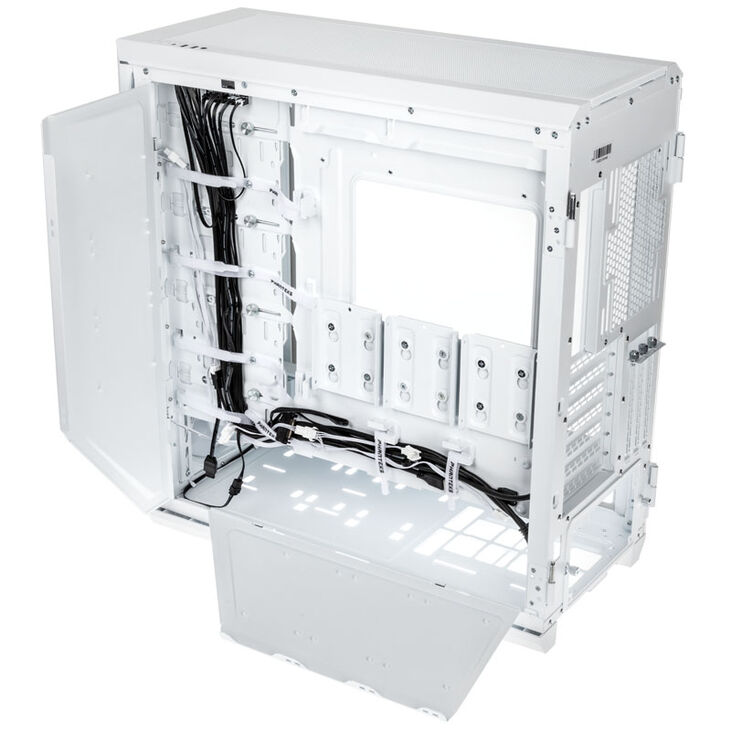

Two 3.5-inch or six 2.5-inch data carriers can be accommodated under the PSU cover. There are also three additional slots for 2.5-inch SSDs at the back of the mainboard tray.
For power-hungry hardware, ATX power supplies up to 195 mm in size can be placed under the cover. If you need a larger power supply, you can easily remove an HDD cage to make room for PSUs up to 250 mm.
If you want to install a large motherboard to get the most out of your system, the Eclipse G500A is the way to go. You can easily fit E-ATX motherboards for maximum compatibility. Furthermore, you can fit graphics cards up to 435 mm long and CPU coolers up to 185 mm high. If you want to mount your graphics card vertically, a bracket is included.
Tempered glass and I/O panel

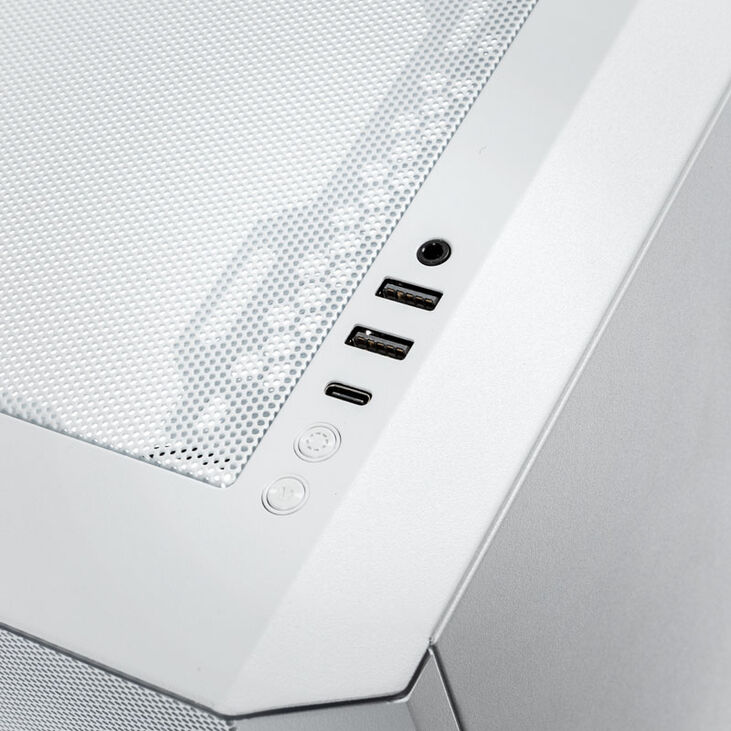

The Eclipse G500A is completely made of steel. The side panel made of tempered glass provides a good view of the components inside. The I/O panel features a power button, HD audio and microphone port, as well as two USB 3.1 Type-C ports and one USB 3.0 Type-A port for faster file transfer. In addition, there are two buttons to control the ARGB lighting. You can use them to set the mode and colour.
RGB lighting paired with timeless Design
The design of the Eclipse G500A combined with the ARGB lighting strips on the PSU shroud makes it possible to construct beautiful builds with good cooling performance. The lighting can also be connected to your motherboard via a 5VDG connector. This way you can achieve exactly the look you want.
Technical Details:
- Dimensions: 240 x 515 x 500 mm (B x H x T)
- Colour: White
- Materials: Steel, tempered glass
- Form factor: Micro-ATX, Mini-ITX, ATX, E-ATX
- Fans possible:
3x 120 mm / 3x 140 mm (Front)
3x 120 mm / 3x 140 mm (Lid)
1x 120 mm / 1x 140 mm (Back)
- Fans pre-installed:
3x 140 mm DRGB fans (Front)
- Radiator mounting positions:
1x max. 360 mm / 1x max. 420 mm (Front)
1x max. 360 mm / 1x max. 280 (Lid)
1x max. 120 mm (Back)
- Drive bays:
2x 3,5 inch or 6x 2,5 inch (HDD cage)
3x 2,5 inch (Mainboard tray)
- Power supply: 1x Standard ATX PSU up to 250 mm
- Expansion slots: 7
- I/O panel:
1x Power button
2x DRGB buttons
1x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
2x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
1x HD audio and microphone combined (3,5 mm)
- Maximum graphics card length: 435 mm
- Maximum CPU cooler height: 185 mm
- Scope of delivery:
1x PHANTEKS Eclipse G500A Midi-Tower, Tempered Glass, ARGB - white
3x 140 mm DRGB fans (pre-installed)
1x Vertical GPU bracket
1x GPU anti sag bracket
2x 3,5 inch cages
3x 2,5 inch mounting brackets
1x PHANTEKS Accessory Box
