Ssupd Xhuttle PC case, mid tower, ATX, RGB, tempered glass - white

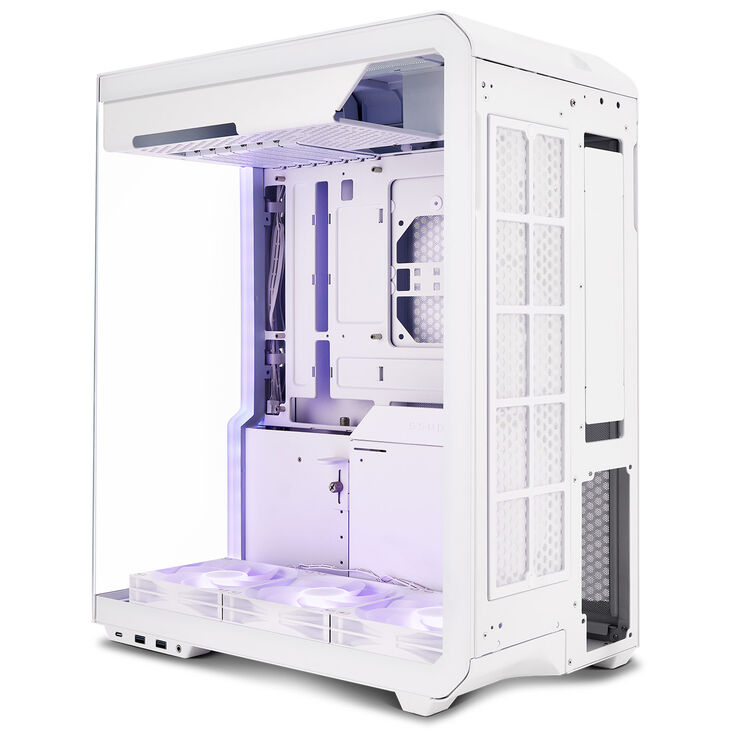

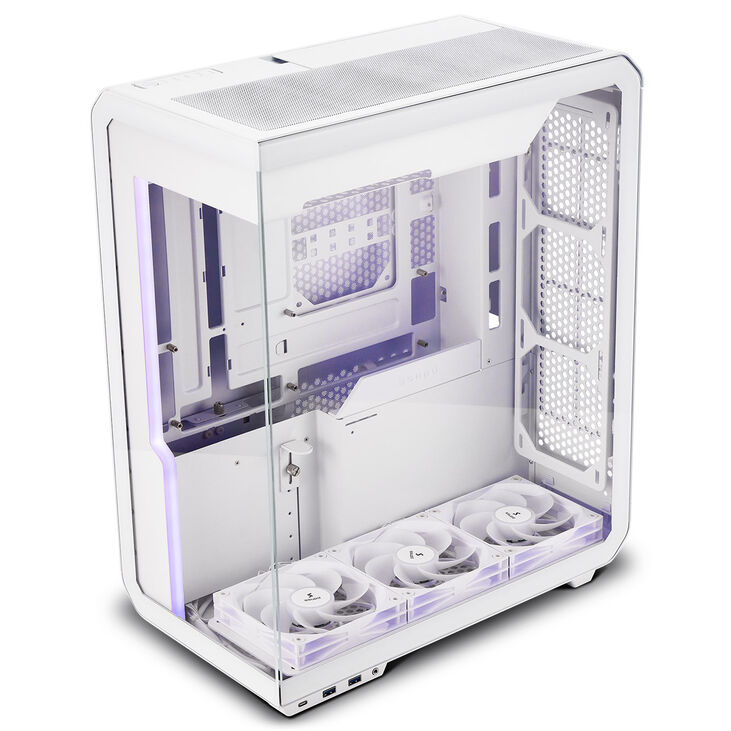

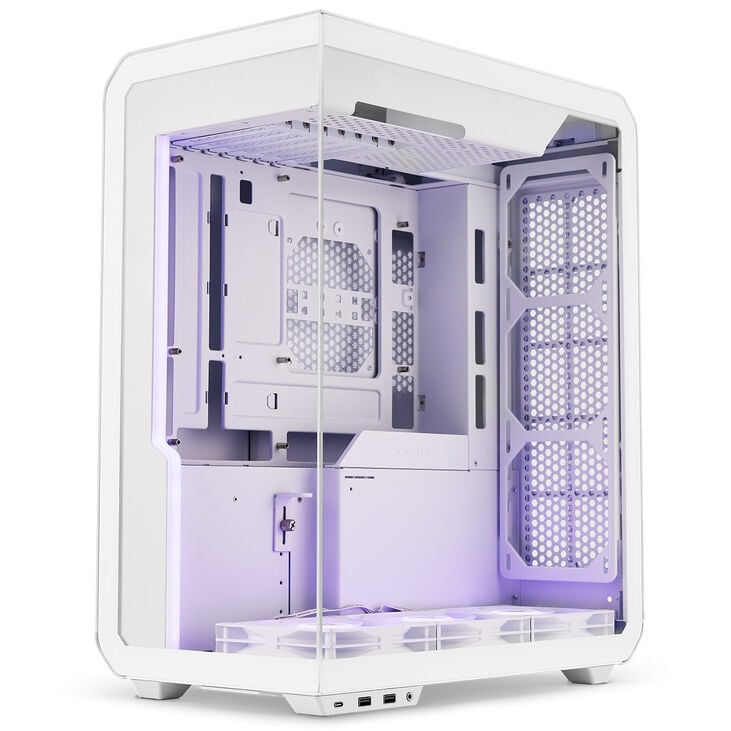

- White case with side panel and front made of tempered glass
- Efficient cooling options with up to ten fans and radiators up to 360mm
- Support for motherboards up to ATX and Back-Connect
- Space for graphics cards up to 370mm and CPU coolers with a height of up to 170 mm
- Up to four drives possible
The Ssupd Xhuttle: Spacious Mid Tower
The Ssupd Xhuttle is a mid tower that offers you enough space for your high-end components. Your gaming hardware is effectively cooled by the extensive cooling options. Additionally, the tempered glass on the side and front provides a generous view of the interior of your case. Build your own gaming PC now!
Efficiently cooled with fans and radiators
Powerful hardware requires equally powerful cooling to prevent overheating of your system. In the Ssupd Xhuttle, you can accordingly install up to ten fans. The top, rear, and bottom support the installation of up to three 120mm fans. Additionally, another 120mm fan can be installed on the side.

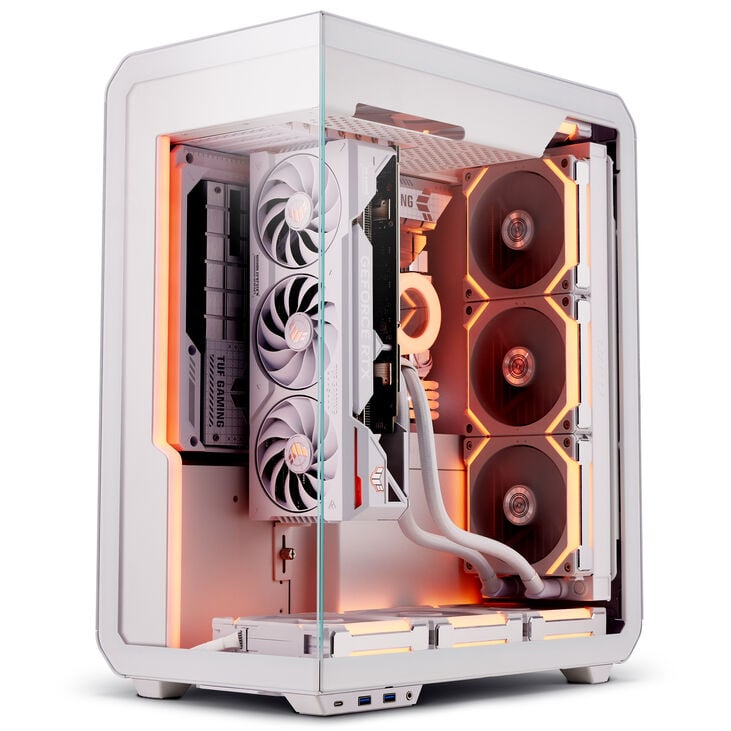

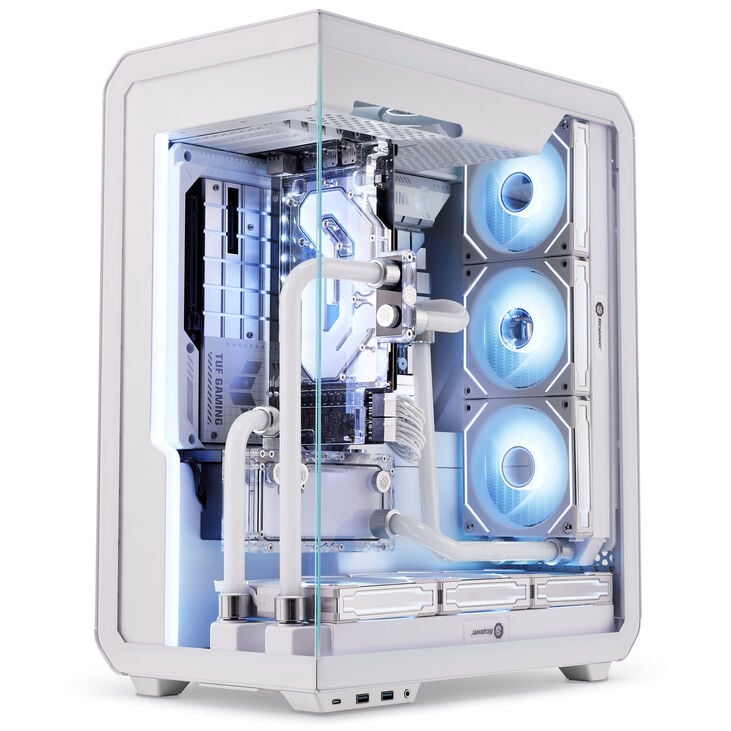

If you prefer water cooling - whether an all-in-one water cooling solution or a custom-built water cooling system - there are several places where you can install a radiator. Large radiators up to 360mm can be installed at the rear and bottom.
Space for your high-end hardware

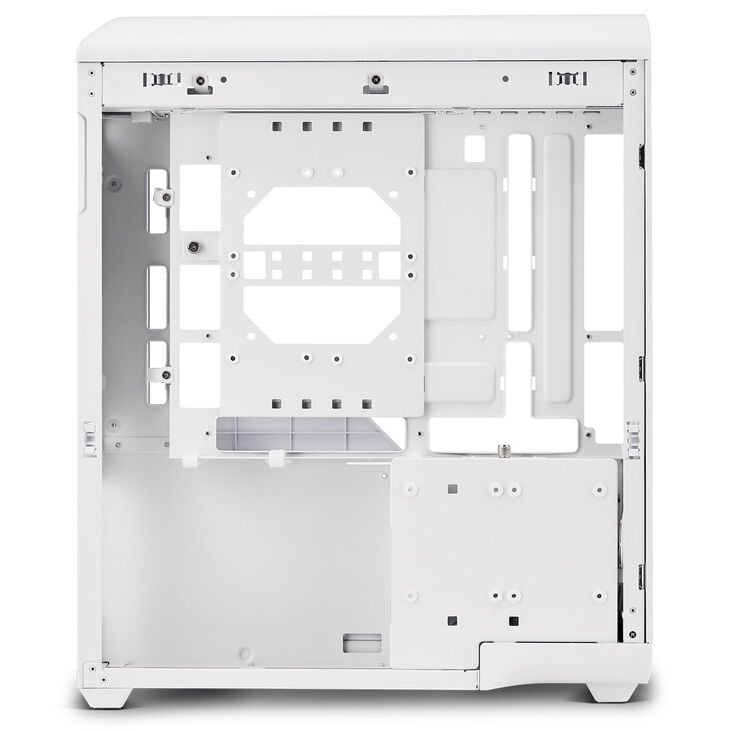

The midi-tower supports the installation of graphics cards up to 370mm in size. Vertical installation is also possible. Motherboards can be installed up to ATX format. To avoid messy cable clutter, you can also install motherboards with the innovative Back-Connect design.
The CPU cooler should not exceed a height of 170mm, while the power supply can be up to 190mm in size. To store programs and games, up to four drives can be installed - on the side either two 3.5-inch or 2.5-inch drives and next to the power supply two 2.5-inch or one 3.5-inch drive.
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
417 mm
|
|
Width
|
237 mm
|
|
Height
|
508 mm
|
|
Weight
|
10.67 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
170 mm
|
|
Max. GPU Length
|
370 mm
|
|
Max. GPU Width
|
160 mm
|
|
Max. PSU Length / Depth
|
190 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (3x)
|
|
Case Fan Support (Side)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x)
|
|
Max. Number of Fans
|
10
|
|
120 mm fans
|
10
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
2x Triple (360 mm)
|
|
Radiator/AIO Support (Bottom)
|
120mm Radiator, 240mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator, 240mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
4
|
|
Max. 3.5 Inch Drives
|
3
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Side
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom, Back, Side
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Plastic, Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
RGB Controller
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
3x 120 mm
|
