Super Flower Combat FG 80 PLUS Gold, ATX 3.1, modular - 850 Watt
Fully modular 80 Plus Gold power supply, 850 watts of power, 1x 12+4-pin 12VHPWR PCIe 5.0, 2x 6+2-pin PCIe, 3x SATA & 1x Molex, ATX 3.1 standard
129,90 €
incl. VAT
, add. delivery costs starting from 4.99€
- Powerful ATX-3.1 power supply from ASUS
- 850 watts nominal power for high-end components
- 80 PLUS Gold certified efficiency
- Fully modular cable management for flexible installation
- 1x 12+4-pin PCIe 12VHPWR connector for high-end graphics cards
Efficient ATX-3.1 power supply with 80 PLUS Gold
The Super Flower Combat FG 80 PLUS Gold 850 W ATX-3.1 power supply is suitable for gaming PCs that feature high-end components, with its 850 watts total output power. There is a native connector for graphics cards with a 12+4-pin 12VHPWR PCIe 5.0 plug.
The power supply is extremely efficient, thanks to the use of high-quality electrical components, such as 100% Japanese capacitors. Thus, the 80 PLUS Gold certified power supply achieves an efficiency of up to 92% at a load of 50%.

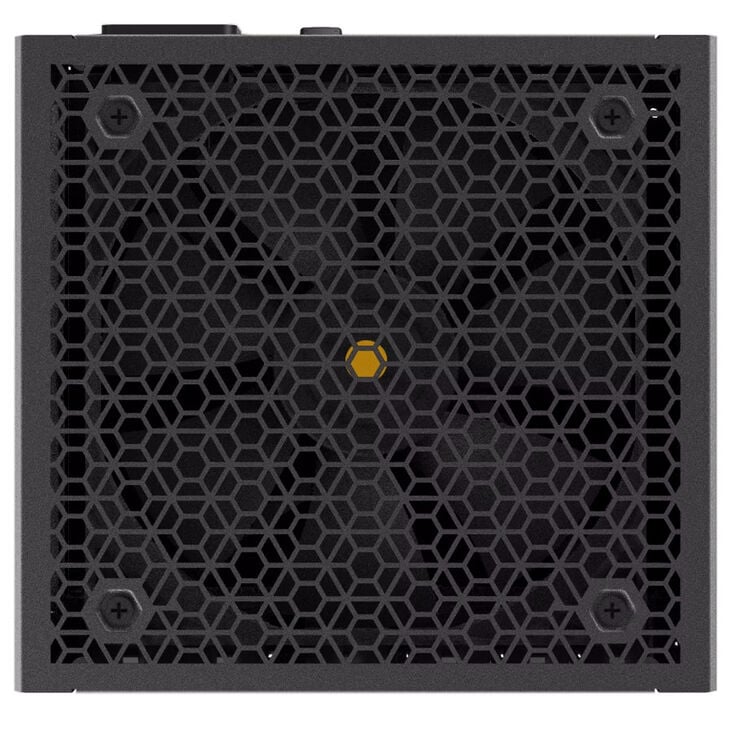

Thanks to the ATX form factor, the power supply is excellent for most cases. The 120 mm fan keeps the Super Flower Combat FG 80 PLUS Gold 850 W power supply cool even after extensive use, despite its extreme performance.
- Dimensions: 140 x 150 x 86 mm (L x W x H)
- Colour: Black
- Fan: 120 mm
- Standard: ATX 3.1
- Efficiency: ~ 87 / 90 / 87 % @ 20 / 50 / 100 % load at 115 V, 80 PLUS Gold certificate
- Form factor: ATX 3.1
- Power: 850 W

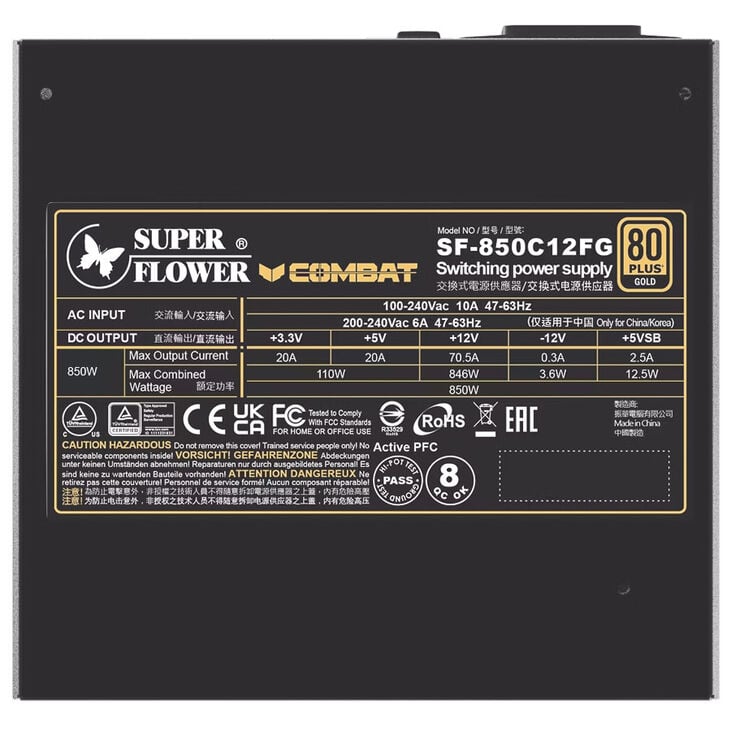

+3.3V: 20 A
+5V: 20 A
+3.3V & +5V: 110 W
+12V: 846 W / 70.5 A
-12V: 3.6 W / 0.3 A
+5Vsb: 12.5 W / 2.5 A - Connections:

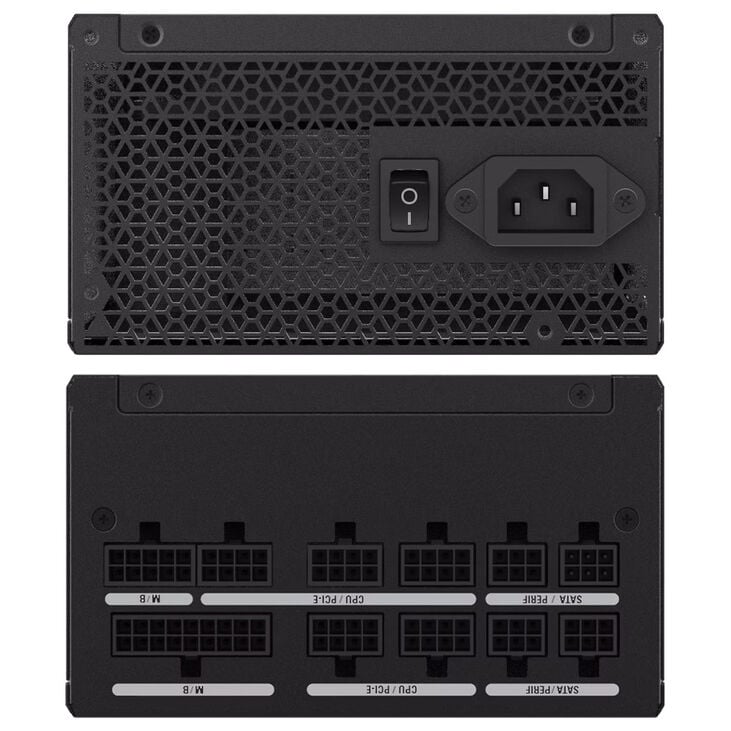

1x 24-Pin motherboard
1x 12+4-Pin 12VHPWR
2x 4+4-Pin CPU
3x 6+2-Pin PCIe
3x SATA
1x Molex - Protection: OVP / OCP / OPP / SCP / OTP
- Included:
1x Super Flower Combat FG 80 PLUS Gold 850 Watt
1x 24-Pin ATX cable
1x 12VHPWR PCIe 5.0 (12+4-Pin) cable
3x 6+2-Pin PCIe cables
3x SATA cables
1x Molex cable
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
140 mm
|
|
Width
|
150 mm
|
|
Height
|
86 mm
|
|
Fan Specifications
|
|
|
Fan Size
|
120 mm
|
|
Power Supply
|
|
|
PSU Format
|
ATX
|
|
Modular Power Supply
|
Yes
|
|
Power Specifications
|
|
|
Total Power Output
|
850 W
|
|
Power Output +12V rails
|
846 W
|
|
Cooling
|
|
|
Semi Passive Power Supply
|
No
|
|
Internal Ports
|
|
|
CPU Power Connectors 12V ATX/EPS
|
2
|
|
12VHPWR PCIe Power Connectors
|
1
|
|
8 Pin PCIe Power Connectors
|
3
|
|
6+2 Pin PCIe Power Connectors
|
3
|
|
SATA Power Connectors
|
3
|
|
Efficiency Class
|
|
|
80PLUS Efficiency
|
80 PLUS Gold
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
