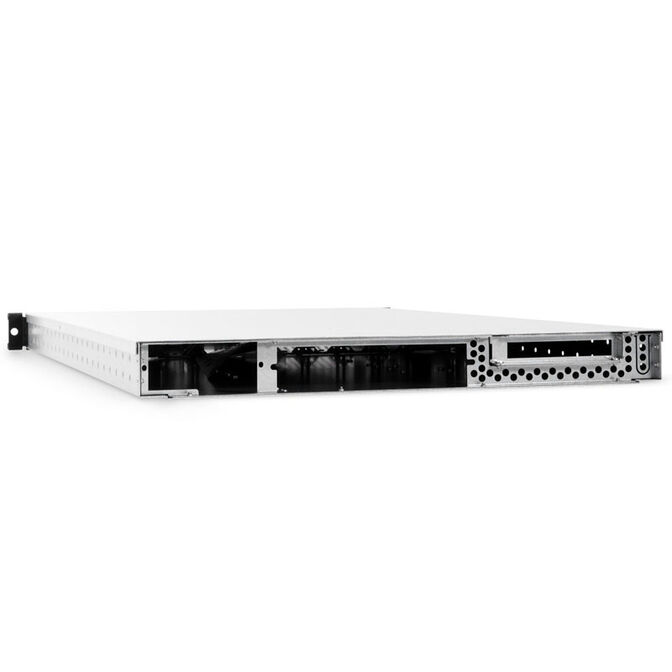

Alphacool ES 1U - 19" - ServerRack - Watercooling ready
Rack server for water cooling, dissipates up to 490 W of waste heat, full copper radiators up to 40 mm, motherboards up to EE-ATX, 8 drive bays, space for 1 PCIe card, low-profile bracket included
219,90 €
Incl. VAT, add. delivery costs starting from 4.99€
The Alphacool ES 1U ServerRack has been specifically optimised to accommodate water cooling sets that can dissipate up to 490W of waste heat in this enclosure. For this purpose, the enclosure not only offers a mounting frame for a maximum of one 7x40mm full copper radiator of the Alphacool NexXxoS series. The optionally available Alphacool ES 40 mm fans with PWM control ensure optimum cooling performance.
Drives

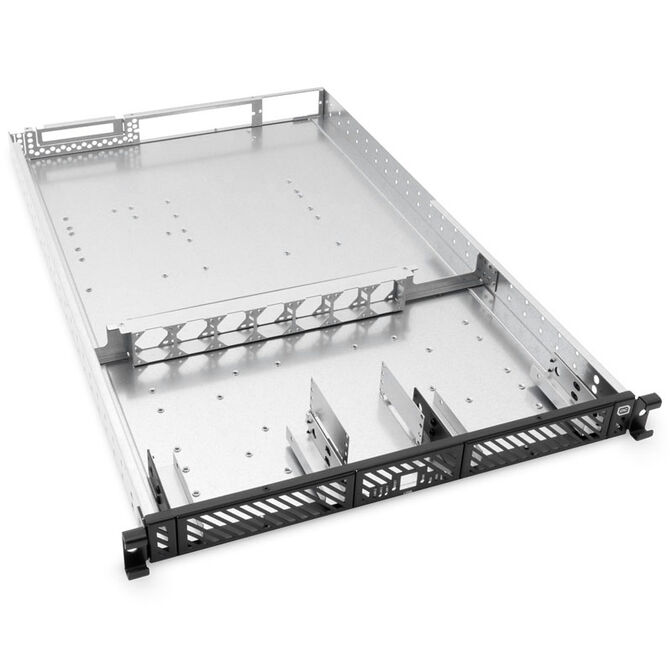

The 1U server rack offers mounting options for two 5.25" drives on the left and right side of the front. Each 5.25" bay offers the alternative of mounting two 3.5" drives. A holding frame for mounting up to four 2.5" drives is pre-mounted in the centre front. This holding frame can be mounted at five other positions in the enclosure.
Mainboard

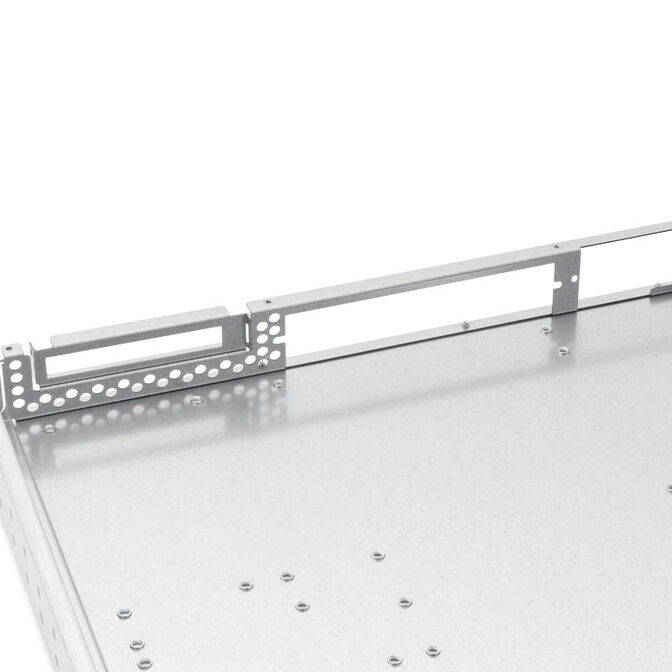

For mounting an SSI-EBB mainboard, all the usual screw connection options in the classic ATX format are available. This includes all mounting holes for Mini-ITX to EE-ATX. A graphics card in PCIe or 0.8" low-profile format can also be installed via a riser cable. A corresponding panel for 0.8" cards is pre-mounted in the case.
Water cooling for 490W waste heat
With an appropriate water cooling system, up to 490W of waste heat can be dissipated in this case. Alphacool offers special water cooling sets for this purpose, which can be individually configured and are delivered to the customer pre-filled. The mounting frame for the radiator and fans can be moved within the enclosure to suit any set-up.
Drives
The 1U server rack offers mounting options for two 5.25" drives on the left and right side of the front. Each 5.25" bay offers the alternative of mounting two 3.5" drives. A holding frame for mounting up to four 2.5" drives is pre-mounted in the centre front. This holding frame can be mounted at five other positions in the enclosure.
Mainboard
For mounting an SSI-EBB mainboard, all the usual screw connection options in the classic ATX format are available. This includes all mounting holes for Mini-ITX to EE-ATX. A graphics card in PCIe or 0.8" low-profile format can also be installed via a riser cable. A corresponding panel for 0.8" cards is pre-mounted in the case.
Water cooling for 490W waste heat
With an appropriate water cooling system, up to 490W of waste heat can be dissipated in this case. Alphacool offers special water cooling sets for this purpose, which can be individually configured and are delivered to the customer pre-filled. The mounting frame for the radiator and fans can be moved within the enclosure to suit any set-up.
|
Colour
|
|
|
Primary Colour
|
Grey
|
|
Secondary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
730.75 mm
|
|
Width
|
478.5 mm
|
|
Height
|
44.5 mm
|
|
Weight
|
7.62 kg
|
|
Case
|
|
|
Case Type
|
Server Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, EE-ATX, Micro-ATX, Mini-ITX, SSI-EEB
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. GPU Length
|
340 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
other
|
|
Power Supply Position
|
rear bottom
|
|
Fan Support
|
|
|
40 mm fans
|
7
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
no
|
|
Drive Bays
|
|
|
2.5 inch internal drive bay
|
4
|
|
3.5 inch external drive bay
|
4
|
|
5.25 inch external drive bay
|
2
|
|
Case Features
|
|
|
Side panel
|
closed
|
|
Cable Management
|
No
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
1
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Materials
|
|
|
Materials
|
Steel
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Fan / RGB control
|
No
|
|
Additional Contents
|
|
|
Included fans
|
None
|
