PHANTEKS case bundle, with white PHANTEKS NV Series NV9 Big Tower, including PHANTEKS M25 Gen2 PWM D-RGB fan - Reverse in white, PHANTEKS NV9 Premium DRGB kit
Incl. VAT, add. delivery costs starting from 4.99€
Save 20%
SKU
GABU-544
|
MPN
GABU-544
|
- Big tower with tempered glass on the side and front for a perfect view of the interior
- Optimal cooling thanks to space for up to 12 fans
- Up to two 420mm radiators possible
- Graphics cards up to a length of 490mm
- Maximum CPU cooler height of 205mm
- Includes the 3-pack PHANTEKS M25 Gen2 PWM D-RGB fans - reverse and PHANTEKS NV9 Premium DRGB kit

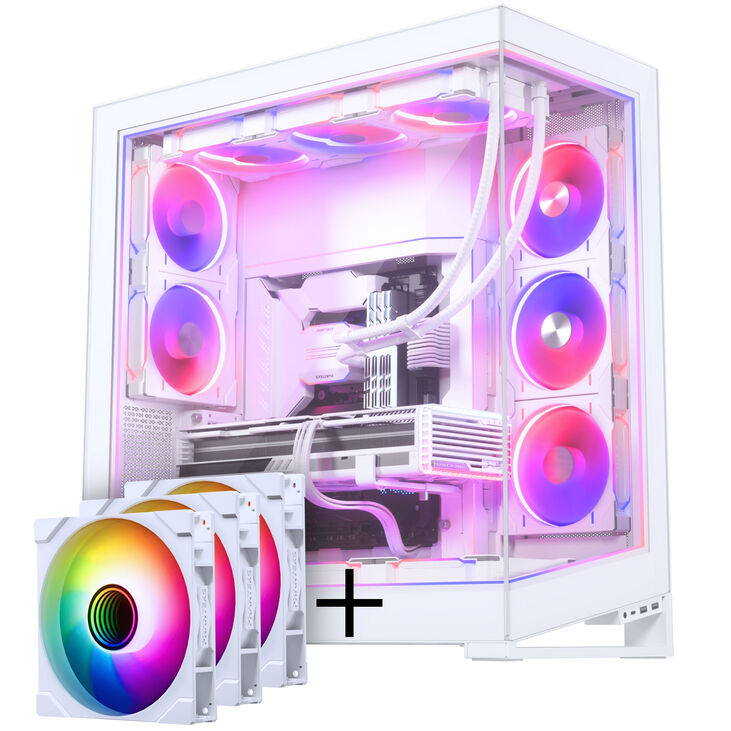

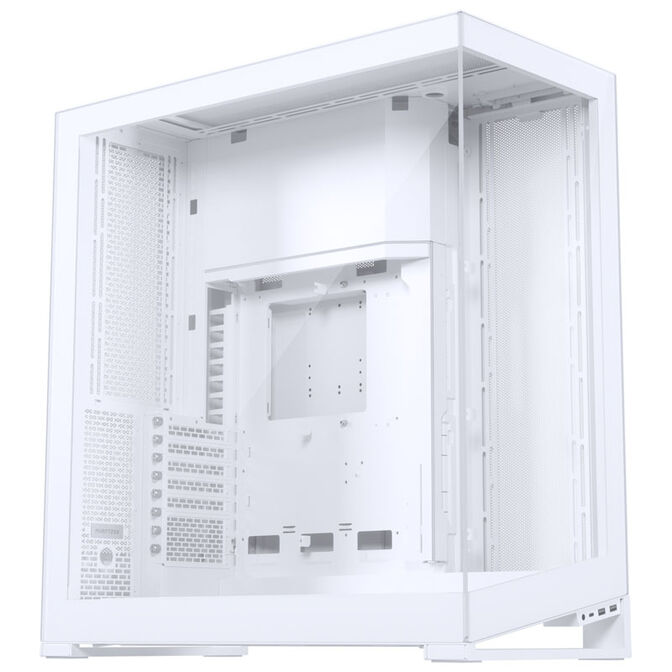

Case bundle: PHANTEKS NV Series NV9 E-ATX case including PHANTEKS M25 Gen2 PWM D-RGB fan 3-pack and PHANTEKS NV9 Premium DRGB kit
With this case bundle from PHANTEKS, you get everything you need for optimal airflow for your new gaming system. The case offers enough space for the latest hardware and efficient cooling solutions. This bundle includes a 3-pack of PHANTEKS M25 Gen2 PWM D-RGB fans with reverse blades, which will keep your gaming components optimally cooled.

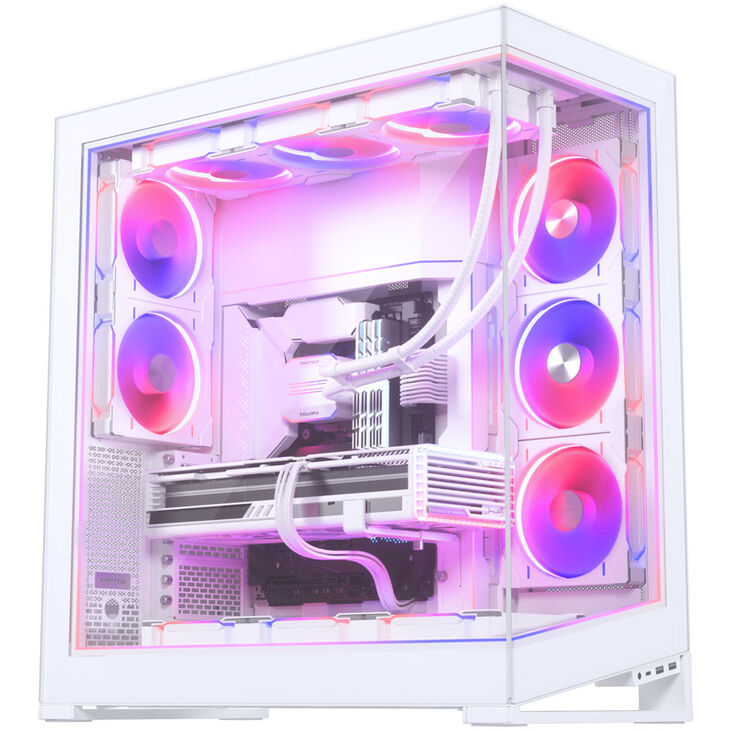

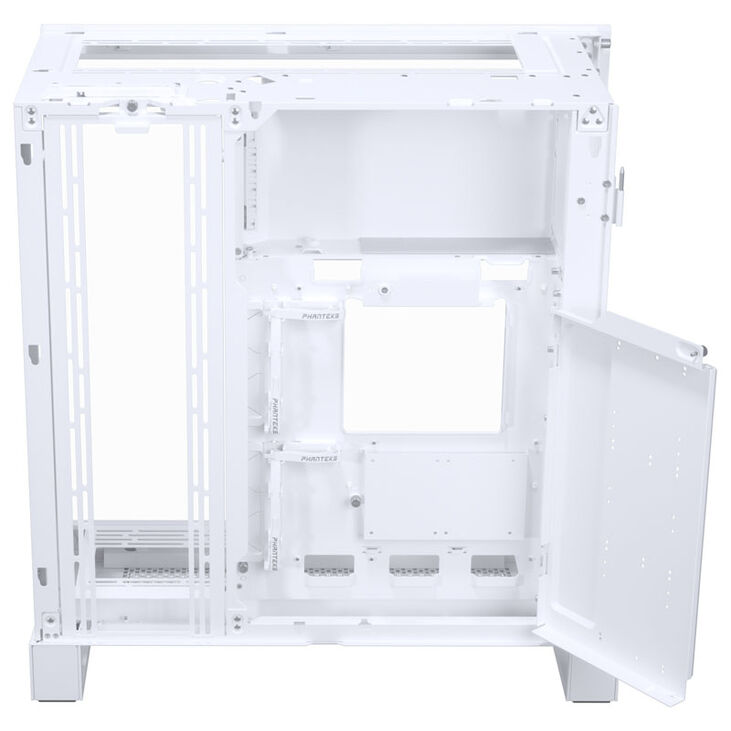

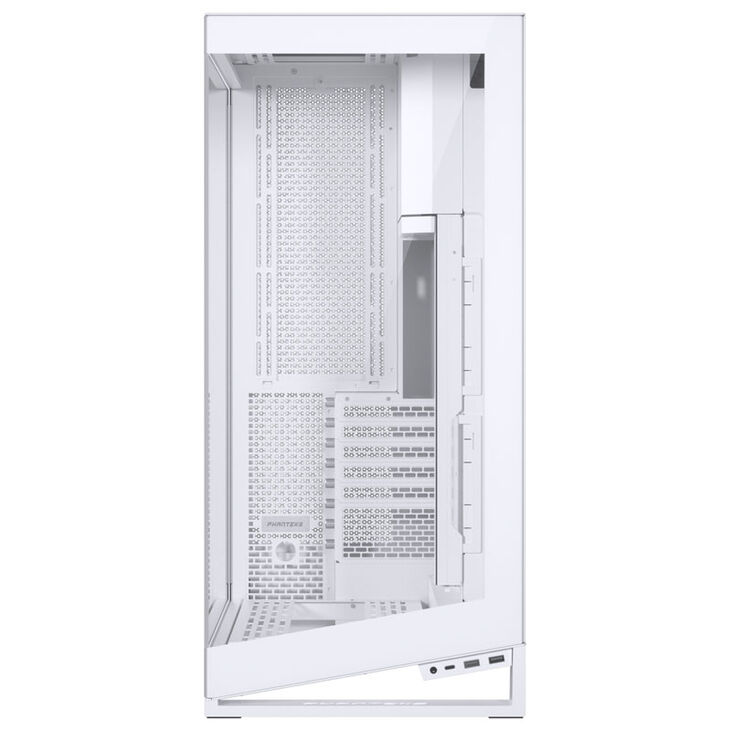

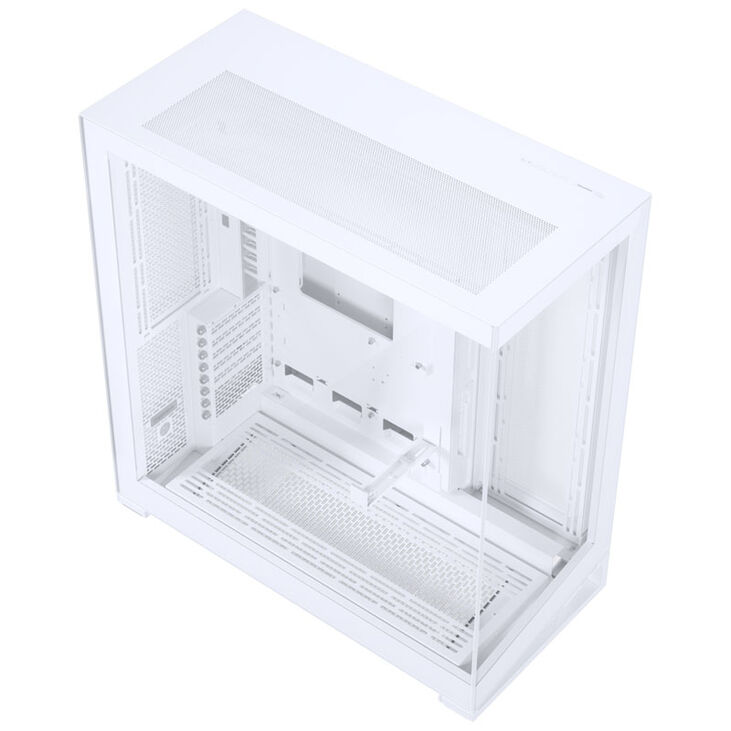

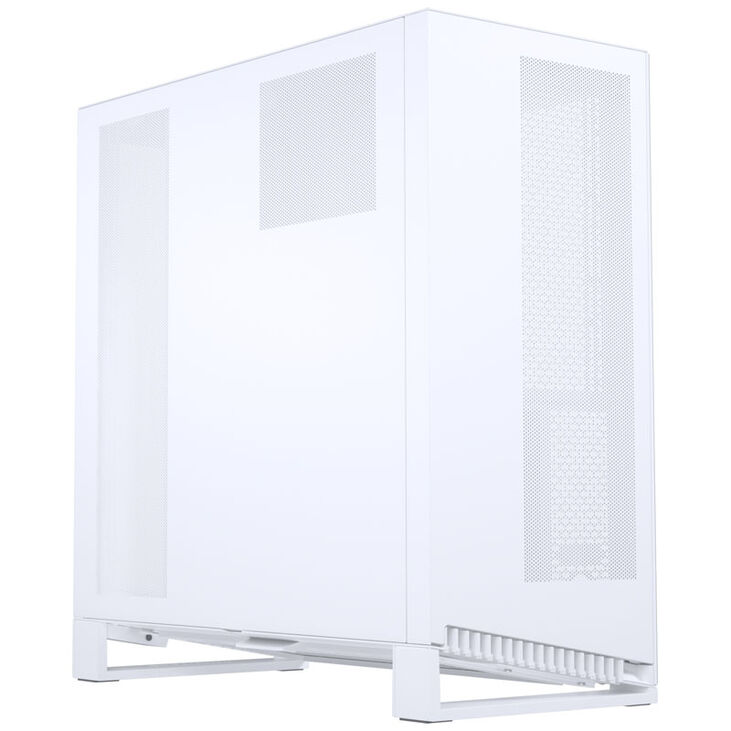

Big tower with excellent cooling and RGB lighting

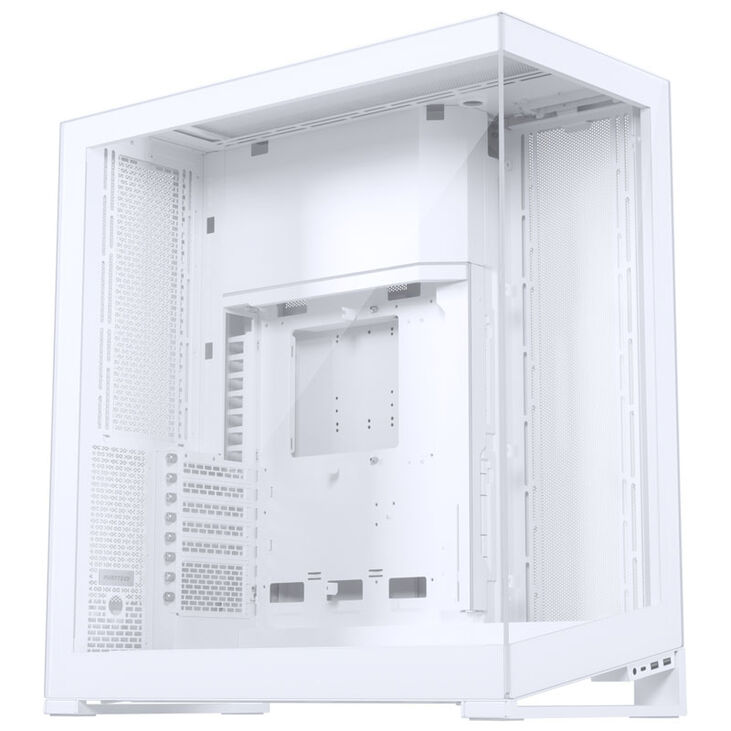

With the PHANTEKS NV9, you make no compromises when it comes to cooling your components. The side panel and front are made of tempered glass and provide an excellent view of your installed components.

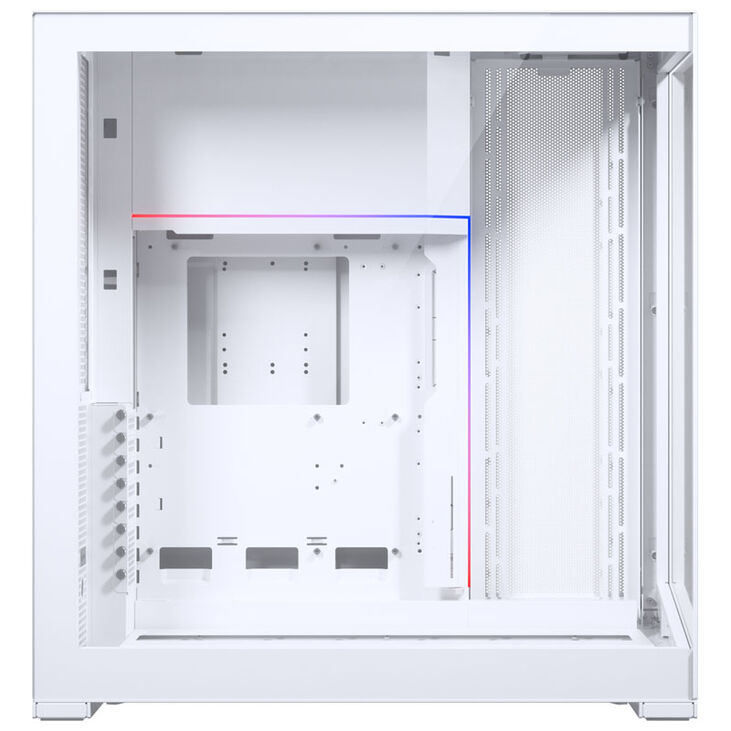

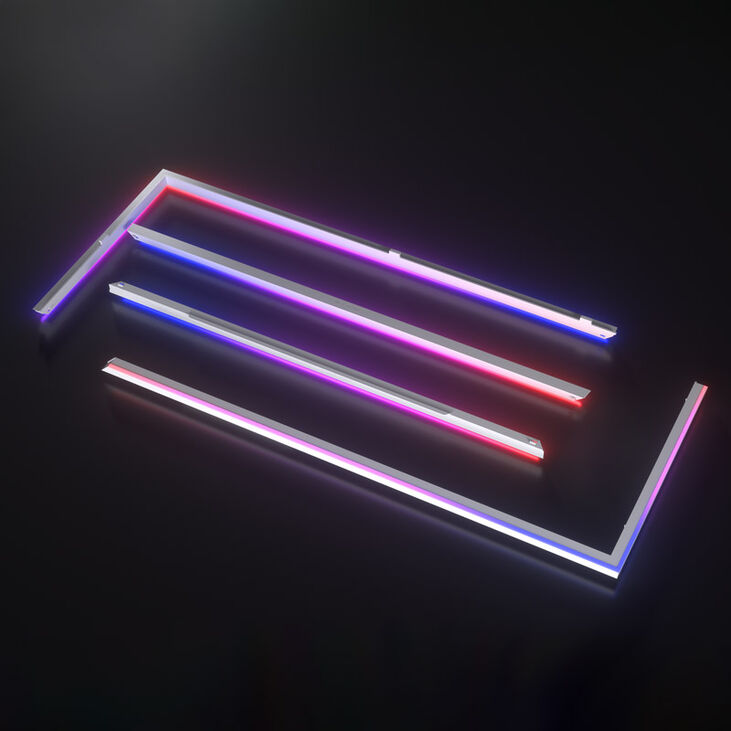

The DRGB kit for the PHANTEKS NV9 is also included in the bundle and provides stylish and appealing RGB lighting for the exterior of the tower - matching the illuminated interior.

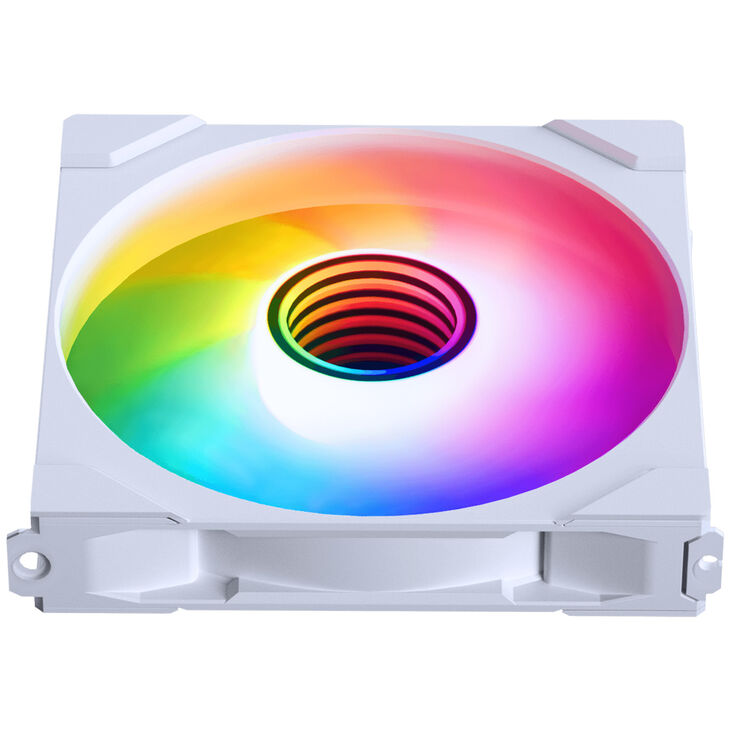

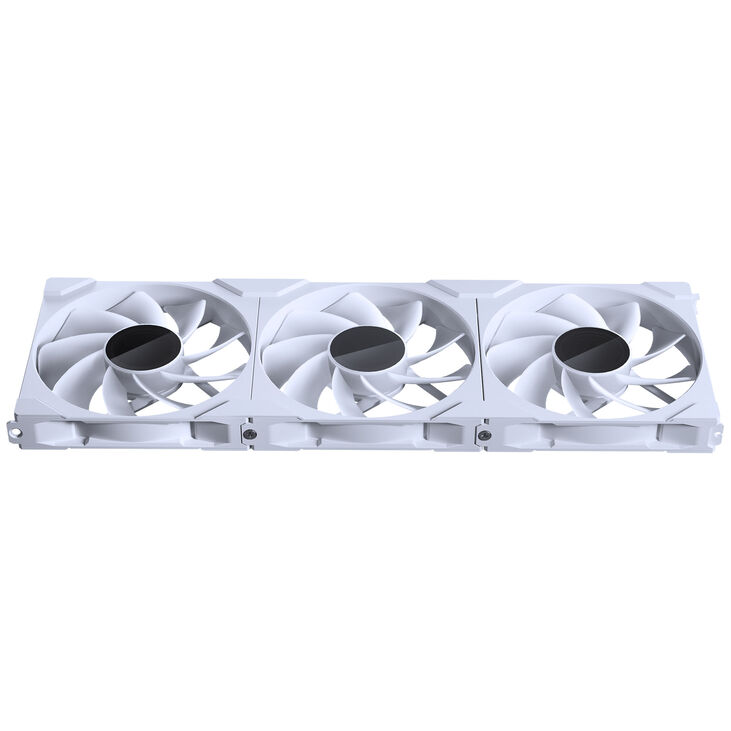

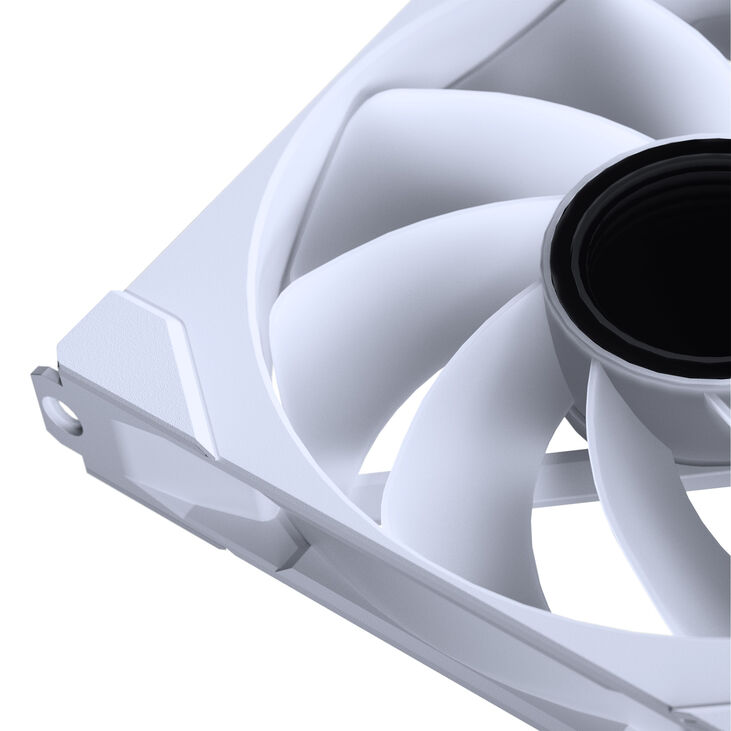

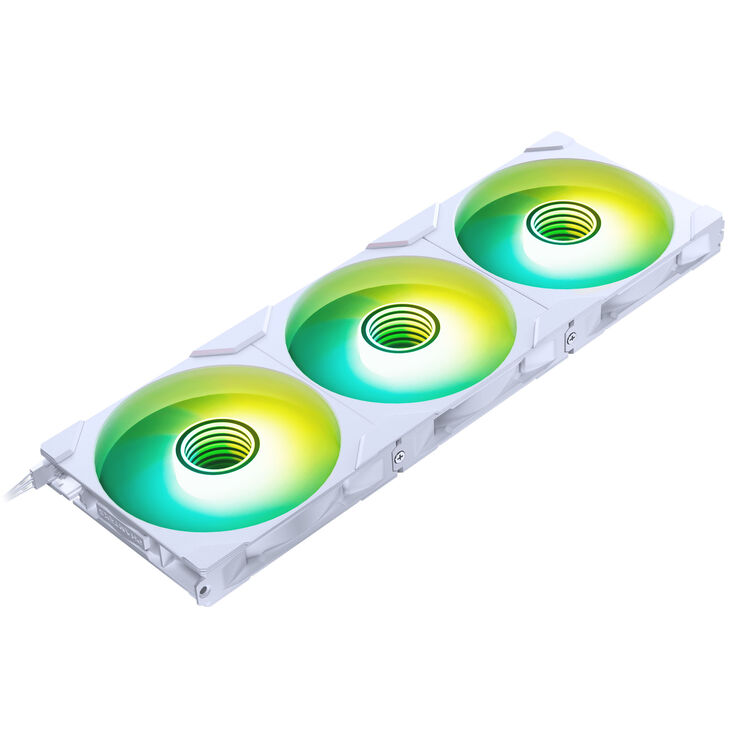

PHANTEKS M25 Gen2 PWM D-RGB fan 3-pack - Reverse blades: Efficient cooling through reverse blades
With the PHANTEKS M25 Gen2 PWM D-RGB fan 3-pack, your gaming PC stays cool - and that with barely audible noise levels. The fans have an airflow of 170.02m³/h and a static pressure of 2.04mmH2O. The reverse blades not only enhance the adjustable RGB lighting but also enable even better airflow.
Phanteks NV Series NV9 E-ATX-Gehäuse, Tempered Glass, ARGB - matte white
|
Colour
|
|
|
Primary Colour
|
White
|
|
Colour Finish
|
Matt
|
|
Secondary Colour
|
Transparent
|
|
Fan Main Colour (Frame)
|
White
|
|
Fan Main Colour (Rotor)
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
575 mm
|
|
Width
|
280 mm
|
|
Height
|
615 mm
|
|
Weight
|
19.52 kg
|
|
Case
|
|
|
Case Type
|
Full Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX, SSI-CEB
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
205 mm
|
|
Max. GPU Length
|
490 mm
|
|
Max. GPU Width
|
205 mm
|
|
Max. PSU Length / Depth
|
210 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear top
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x), 140mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (2x), 140mm Fan (2x)
|
|
Case Fan Support (Side)
|
120mm Fan (4x), 140mm Fan (3x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (3x)
|
|
Max. Number of Fans
|
12
|
|
120 mm fans
|
12
|
|
140 mm fans
|
11
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
2x Triple (420 mm)
|
|
Radiator/AIO Support (Bottom)
|
360mm Radiator, 420mm Radiator
|
|
Radiator/AIO Support (Rear)
|
240mm Radiator, 280mm Radiator
|
|
Radiator/AIO Support (Side)
|
420mm Radiator, 480mm Radiator
|
|
Radiator/AIO Support (Top)
|
360mm Radiator, 420mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
6
|
|
Max. 3.5 Inch Drives
|
3
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
6
|
|
3.5 inch internal drive bay
|
3
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
8
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
RGB Controller
|
Yes
|
|
RGB Type
|
ARGB / DRGB
|
|
Number of RGB Connectors
|
4
|
|
Lighting Colour
|
RGB
|
|
Lighting Compatibility
|
ASRock Polychrome Sync, ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, Razer Chroma
|
|
Product Series
|
|
|
Product Series/Family
|
NV9
|
|
Additional Contents
|
|
|
Fans Included
|
No
|
|
Included fans
|
None
|
PHANTEKS M25 Gen2 PWM D-RGB Fan 3-Pack - Reverse Blade, 140mm, White
|
Colour
|
|
|
Primary Colour
|
White
|
|
Fan Main Colour (Frame)
|
White
|
|
Fan Main Colour (Rotor)
|
Transparent
|
|
Dimensions
|
|
|
Length / Depth
|
140 mm
|
|
Width
|
140 mm
|
|
Weight
|
563 g
|
|
Fan height
|
25 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Fan Specifications
|
|
|
Fan Size
|
140 mm
|
|
Fan mounting size
|
140 mm
|
|
Fan Blade Direction
|
Reverse
|
|
Fan Bearing
|
Hydraulic Bearing
|
|
Min. Fan RPM
|
350 rpm
|
|
Max. Fan RPM
|
1800 rpm
|
|
Max. Single Fan Airflow
|
100.07 cfm
|
|
Max. Static Pressure
|
2.04 mmH2O
|
|
Power Specifications
|
|
|
Rated voltage
|
12 V
|
|
Starting voltage
|
7 V
|
|
Noise
|
|
|
Max. Single Fan Noise
|
40.95 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
LINQ6
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Materials
|
|
|
Materials
|
PBT
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Set
|
|
|
Set
|
Yes
|
|
Number of Products in Set
|
3
|
PHANTEKS NV9 Premium DRGB Kit, for external frame - white
|
Colour
|
|
|
Primary Colour
|
White
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Product Series
|
|
|
Product Series/Family
|
NV9
|
